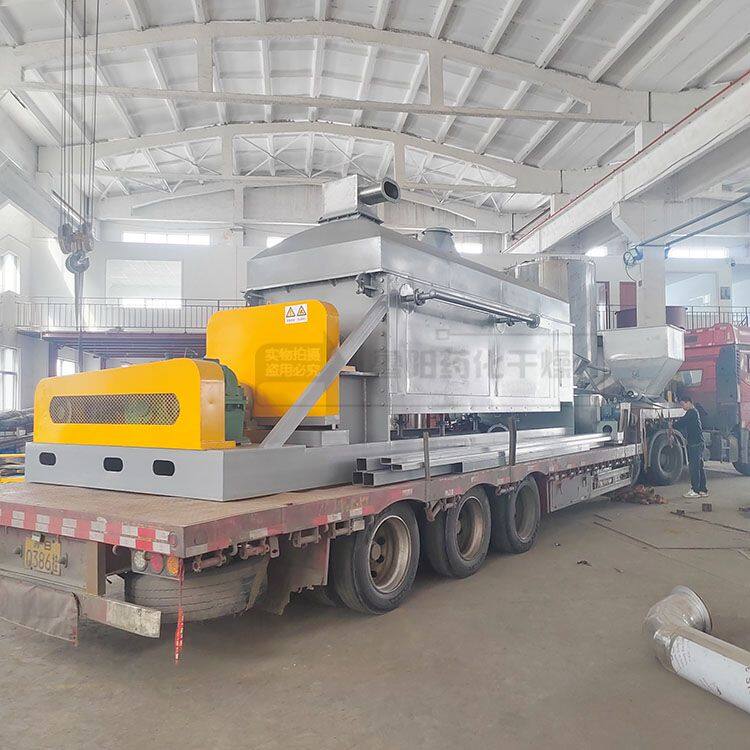

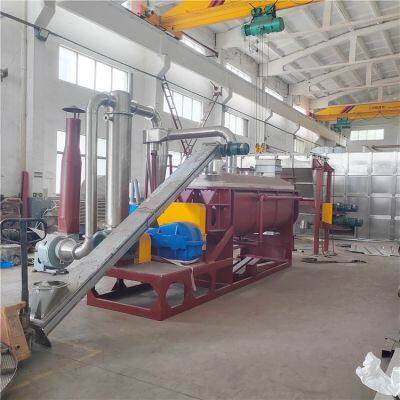

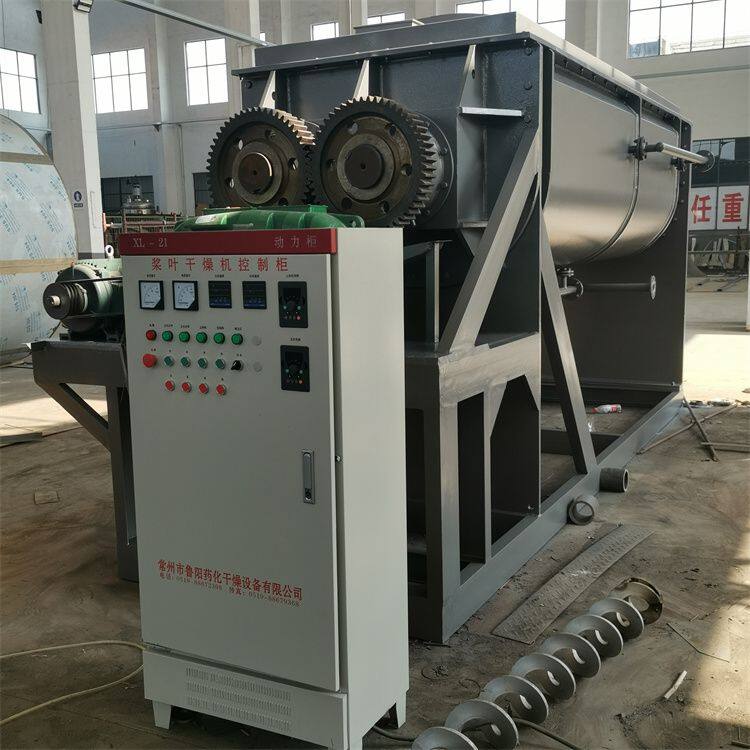

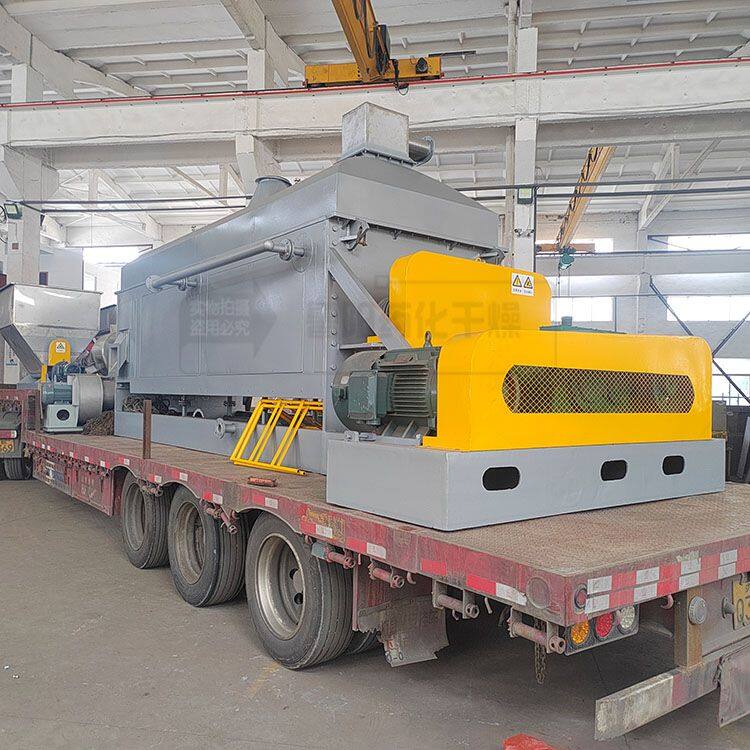

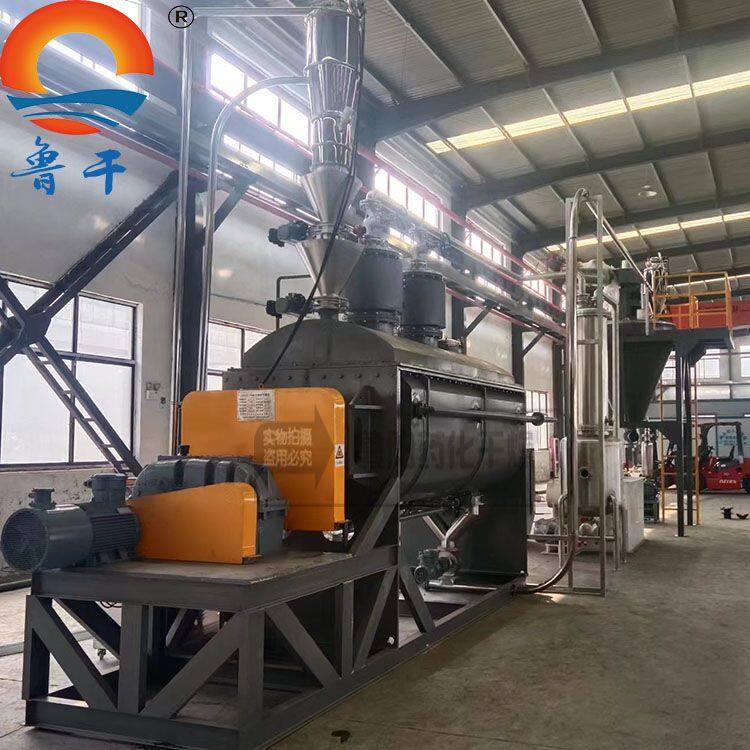

Help CenterLife Sludge Paddle Dryer
Related Products
-
Hemoglobin Centrifugal Spray DryerUS$ 45622.83MOQ: 1 Combo -
Banlangen GranulatorUS$ 3171.58MOQ: 1 Combo
-
3D MixerUS$ 3171.58MOQ: 1 Combo
-
Peptide White Powder Spray Dryer Stainless Steel Plant Protein Spray Drying EquipmentUS$ 51187.33MOQ: 1 Set
-
Vertical High-speed Food MixerUS$ 4562.32MOQ: 1 Combo
Performance characteristics
Low energy consumption of the blade dryer: Due to indirect heating, there is no large amount of air carried away to remove heat. The outer wall of the dryer is also equipped with an insulation layer. For slurry materials, only 1.2kg of water vapor is needed to evaporate 1kg of water.
The cost of the blade dryer system is low: it has a huge heat transfer surface per unit effective volume, which shortens processing time and reduces equipment size. This greatly reduces the building area and space.
◎ Wide range of material processing: Using different heat media, it can handle both thermosensitive materials and materials that require high-temperature treatment. Common media include steam, thermal oil, hot water, cooling water, etc.
It can operate continuously or intermittently and can be applied in many fields.
Low environmental pollution: No use of portable air, minimal dust and material entrainment. The solvent evaporation of the material is very small, making it easy to handle. For materials with pollution or operating conditions that require solvent recovery
Closed loop circulation.
Low operating costs: The structure. The wear and tear is small, and the maintenance cost is very low.
Stable operation: Due to the special compression expansion stirring effect of the wedge-shaped blade, the material particles are fully in contact with the heat transfer surface. In the axial range, the temperature, humidity, and mixing gradient of the material are very small, thereby ensuring the stability of the process.
Adapt to materials
The blade dryer has been successfully used in fields such as food, chemical, petrochemical, dye, and industrial sludge. The characteristics of heat transfer, cooling, and stirring of the equipment enable it to perform the following unit operations: combustion (low temperature), cooling, drying (solvent recovery), heating (melting), reaction, and sterilization. The mixing blade is also a heat transfer surface, which increases the heat transfer area per unit effective volume and shortens the processing time. The wedge-shaped blade heat transfer surface also has self-cleaning function. The compression expansion mixing function ensures uniform mixing of materials. The material moves in a "piston flow" along the axial direction, and within the axial range, the temperature, humidity, and mixing gradient of the material are very small. Low temperature combustion can be achieved by using thermal oil as the heat medium in a blade dryer. For example, calcium sulfate dihydrate (Ca2SO4 · 2H2O) is burned and converted into calcium sulfate hemihydrate (Ca2SO4 · 1/22H2O). Sodium bicarbonate (NaHCO3) is converted into pure alkali (Na2HCO3) through calcination. Cooling media such as water, cooling salt water, etc. can be used for cooling. For example, the blade type cooling alkali machine used in the soda ash industry replaces the old-fashioned air-cooled cooling alkali machine, saving energy and exhaust gas treatment equipment, and reducing operating costs. Drying, the main function of the equipment, does not use hot air, making solvent recovery, energy consumption, and environmental control in an ideal state that is easy to handle. It is particularly suitable for solvents that need to be recycled, flammable and easily oxidizable heat sensitive materials. It has been widely used in the fine chemical, petrochemical, and dye industries. The uniformity of temperature, humidity, and mixing degree within the axial range allows the equipment to be used for heating or melting, or for some solid material reactions. It has been successfully used in the compound fertilizer and modified starch industries. A blade dryer can be used to sterilize food and flour. The large heating area within the effective volume of the unit quickly heats the material to the sterilization temperature, avoiding prolonged heating and changing the quality of the material.
