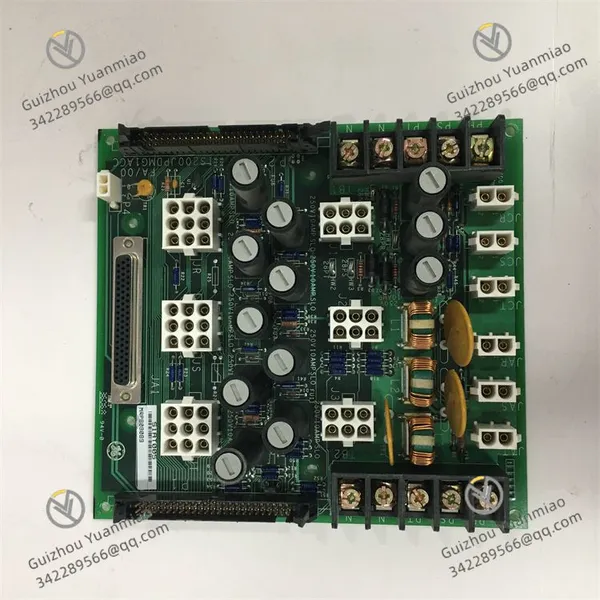

GE IS200JPDMG1ACC Power Distribution Card

GE IS200JPDMG1ACC Power Distribution Card thumbnail-2

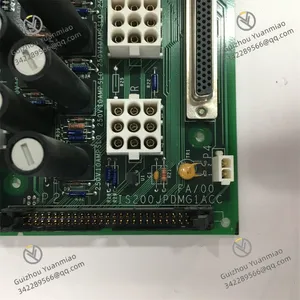

GE IS200JPDMG1ACC Power Distribution Card thumbnail-3

GE IS200JPDMG1ACC Power Distribution Card thumbnail-4

GE IS200JPDMG1ACC Power Distribution Card photo-1

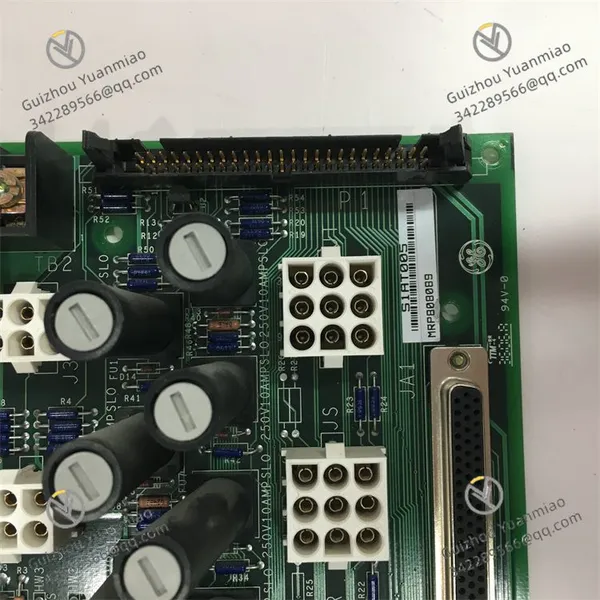

GE IS200JPDMG1ACC Power Distribution Card photo-2

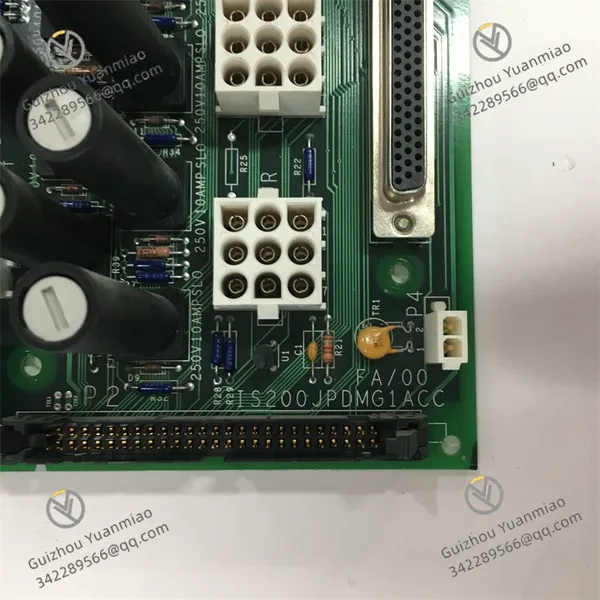

GE IS200JPDMG1ACC Power Distribution Card photo-3

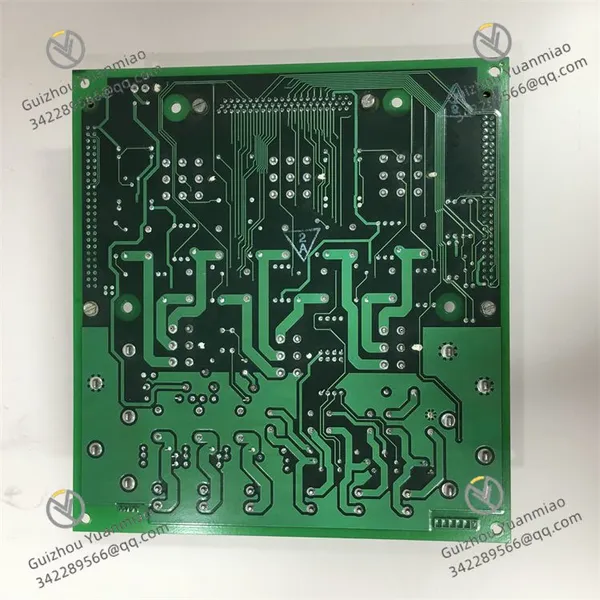

GE IS200JPDMG1ACC Power Distribution Card photo-4

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃ to 70℃

Humidity 5% - 95% (non - condensing)

Power Input 28V DC

I. Overview

GE IS200JPDMG1ACC, as a key component of the Mark VI series in GE's industrial control system, is a jumpers-type power distribution card that undertakes the important mission of reliable power distribution in various industrial application scenarios. It is specially designed for industrial control systems, and plays an indispensable role especially in the GE Mark VI turbine control system. This card can receive 28V DC input power from external AC/DC or DC/DC converters, and reasonably distribute this power to the entire control system, ensuring that each component gets stable and suitable power supply, thus guaranteeing the stable operation of industrial equipment.

II. Technical Parameters

Input Voltage: The rated input voltage is 28V DC, which matches the output voltage of common power conversion devices in industrial sites, facilitating access to power systems in different industrial environments and providing a stable foundation for equipment power supply.
Current Carrying Capacity: It has a strong current carrying capacity, with a maximum current of up to 35 amperes. This means it can provide sufficient power for multiple load devices, meeting the demand for power supply intensity in complex industrial control systems, and can maintain stable power output even when the load changes greatly.
Installation Method: It adopts DIN rail installation, which is convenient and stable. In industrial control cabinets, DIN rail is a common installation base. IS200JPDMG1ACC can be quickly and accurately fixed at the designated position through DIN rail installation, facilitating the orderly layout with other modules, and also facilitating later maintenance and replacement operations.
Protection Mechanism: To ensure the safety of the output power, all output terminals are equipped with fuse protection. When abnormal situations such as overload or short circuit occur in the circuit, the fuse will quickly blow, cutting off the faulty circuit, preventing damage to equipment due to excessive current, and effectively protecting the safe and stable operation of the entire control system.
Power Bus Configuration: This power distribution card maintains three independent power buses, and this design can realize differentiated power supply management for different loads or functional modules. At the same time, it also provides the option of using jumpers, which can be configured as a single-bus redundant power supply mode. In redundant mode, even if one power line fails, the system can still maintain normal operation through the backup line, which greatly improves the reliability of system power supply and reduces downtime caused by power supply failures.
Physical Characteristics: In terms of physical size, its design is compact, which is convenient for installation in limited control cabinet space. It weighs about 1.36 kilograms, which not only ensures the stability of the structure, but also does not bring too much burden to the installation bracket. In terms of connection, it has 13 plug connectors, which ensure stable and reliable electrical connection with other equipment or modules, and guarantee the smooth progress of power transmission and signal interaction.

III. Functional Features

Efficient Power Distribution Function: With its optimized circuit design and high-quality electrical components, IS200JPDMG1ACC can efficiently distribute the input power to various required components. In complex industrial control networks, it can accurately provide appropriate power for many sensors, controllers, actuators and other equipment, ensuring the coordinated work of the entire system. For example, in large chemical production lines, a large number of on-site equipment need stable power supply to achieve automatic control. IS200JPDMG1ACC can reasonably distribute power according to equipment needs, ensuring the continuous and stable operation of the production line.
System Integration Compatibility: It has high compatibility with other modules of the GE Mark VI series, such as processor modules and input/output modules. It can be seamlessly integrated into the entire Pdm (Power Distribution Module) system, and work together with other modules through the internal communication mechanism of the system. In practical applications, it can cooperate with PPDA I/O Pack to realize real-time feedback of power distribution status. The control center can timely understand the power supply situation in various regions through this feedback information, so as to monitor and adjust, and improve the intelligent management level of the entire control system.
Stable and Reliable Operation: Facing common adverse factors in industrial environments such as electromagnetic interference, vibration and temperature changes, IS200JPDMG1ACC shows excellent stability. Its internal electrical isolation design, anti-interference circuit and good heat dissipation structure enable it to operate continuously and stably in harsh environments. In places with strong electromagnetic interference and high temperature such as steel smelters, this power distribution card can still distribute power accurately, ensuring that the equipment works normally without being disturbed by the environment, and providing a solid guarantee for the reliability of industrial production.

IV. Common Faults and Solutions

Abnormal Power Distribution
Possible Causes: Fuse blowing, which may be caused by excessive current due to load short circuit, overload operation, etc.; loose, open or poor contact of input power lines, affecting the normal input of power; faults in the internal circuit of the power distribution card, such as loose solder joints and damaged components.
Solutions: First, check the fuses of all output terminals. If fuses are found blown, it is necessary to check the causes of excessive current, such as checking whether the load equipment has a short circuit. After troubleshooting, replace the fuse of the same specification; carefully check the input power lines, re-plug the connecting plugs to ensure firm connection of the lines, and if the lines are open, replace the damaged lines; if it is suspected that there is a fault in the internal circuit of the power distribution card, professional circuit detection instruments can be used for detection. After determining the faulty components, professional maintenance personnel shall replace or repair them.

Communication Interruption with the System
Possible Causes: Faults in the connecting lines with communication modules such as PPDA I/O Pack, such as damaged cables and loose interfaces; incorrect configuration of communication protocols, resulting in failure to transmit data correctly; problems with the communication chip or related circuits of the power distribution card.
Solutions: Check whether the connecting cables are damaged or bent, re-plug the interfaces to ensure reliable connection. If the cables are damaged, replace them with new ones in time; carefully check the communication protocol settings to ensure they are consistent with the communication requirements of the entire system, and reconfigure if necessary; if the above methods are ineffective, there may be a fault in the communication chip or related circuits, so it is necessary to contact GE's professional technical support personnel for further detection and maintenance of the power distribution card.

Module Overheating
Possible Causes: Long-term high-load operation leads to increased power consumption of the power distribution card and excessive heat generation; poor ventilation of the control cabinet, making it impossible to dissipate heat in time; abnormal situations such as internal short circuit of the module, leading to excessive current and thus excessive heat generation.
Solutions: Reasonably plan the operation time of the equipment to avoid long-term high-load work. The operation strategy of the equipment can be adjusted according to the actual production needs to reduce the working load of the power distribution card; check the ventilation system of the control cabinet, clean the dust and debris at the ventilation ports to ensure smooth ventilation. If necessary, auxiliary cooling equipment such as cooling fans can be installed in the control cabinet; if internal short circuit of the module is suspected, cut off the power supply immediately and use professional detection tools for detection. If a short circuit fault is confirmed, the power distribution card needs to be sent for repair or replaced with a new module.

Product Tags: IS200JPDMG1ACC
