Help CenterPower Cable Pusher
US$ 1,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
ChangLan
Model Number:
JSD
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hunan, China
Brand Name
ChangLan
Model Number
JSD
Type
Other, power cable pusher
Cable laying Machine Cable pulling machine
Model No.: JSD-3,JSD-5B, JSD-5C,JSD-8

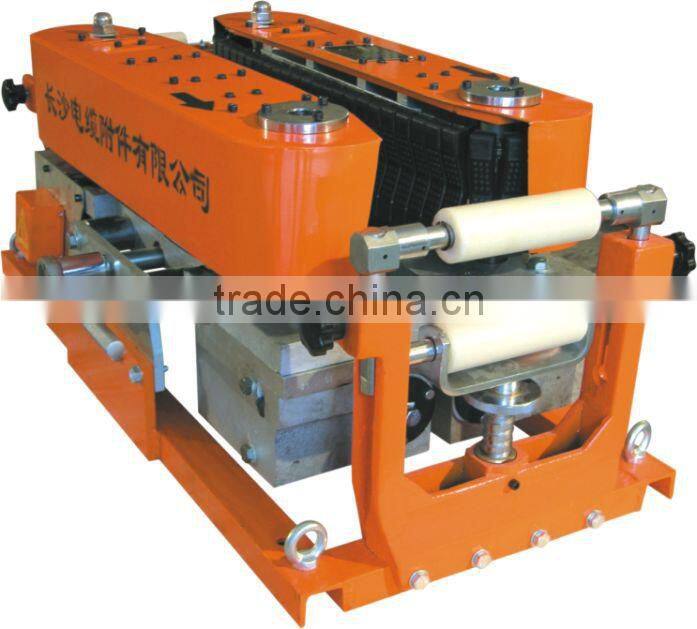

Application: JSD is a motor-driven machine for laying power cable (or communication cable)
Characteristic:
- Driven by double caterpillars to make sure that the delivery force and gravitational force will affect at two direction. It’s good to protect the insulation layer of cable.
- The delivery force will be transferred by caterpillar which made by high strength DRC. Force uniform and wear well.
- Equipped with adjusted barrel, easy to operate.
- It will be very convenient to be equipped with a reel at the upper part as a lower power tractor.
- Low noise, small temperature rise for and easy maintenance.
- We can provide other matching product like JSD electric control system(control box and branch box, four core sheath cable ) and reel as customer’s requirement.
- one control box can control 12 pieces JSD-3; 8 pieces JSD-5B / JSD-5C; 6 pieces JSD-8. Each hauling machine should equip one branch box.
Technical Data
Specification |
JSD-3 |
JSD-5B |
JSD-5C |
JSD-8 |
Cable Diameter(mm) |
48-140 |
74-180 |
48-180 |
48-180 |
Rated Delivery Force (kN) |
3 |
5 |
5 |
8 |
Delivery Speed(m/min) |
6 |
|||
Clamping Force(N.m) |
50 |
|||
Power Supply (VAC) |
380 |
|||
Motor Power (kW) |
0.37X2 |
0.75X2 |
0.75X2 |
1.1X2 |
Net Weight (KG) |
155 |
165 |
185 |
270 |
Dimension (mm) |
920*500*370 |
970*485*385 |
1015*585*425 |
1238*680*475 |
This machine are selling well in U.A.E., India market.
Quality warranty & after sales service:
1. Secure prodction under ISO9001 & ISO14001 and OHSAS 18001 system;
2. 2-year warranty;
