China ISO Standard Sch40 Carbon Steel Stainless Steel 304 316 90 Degree Butt Welded Elbow

China ISO Standard Sch40 Carbon Steel Stainless Steel 304 316 90 Degree Butt Welded Elbow photo-1
China ISO Standard Sch40 Carbon Steel Stainless Steel 304 316 90 Degree Butt Welded Elbow photo-2
China ISO Standard Sch40 Carbon Steel Stainless Steel 304 316 90 Degree Butt Welded Elbow photo-3
China ISO Standard Sch40 Carbon Steel Stainless Steel 304 316 90 Degree Butt Welded Elbow photo-4
China ISO Standard Sch40 Carbon Steel Stainless Steel 304 316 90 Degree Butt Welded Elbow photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Stainless Steel
Type:
Other
Certification:
ISO, CE
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI/TIANJIN/XIAMEN
Delivery Detail:
15 days
Material Stainless Steel
Type Other
Certification ISO, CE
Technics Casting
Connection Welding
Wall Thickness Other
Finish Other
Standard Other, ASME、ANSI、DIN、JIS、GS、API
Application Petroleum, Natural Gas, Water Dispose et
Transport Package Wooden Cases, Pallets, Nylon Bags
Specification customizable
Origin China






Elbow Bend

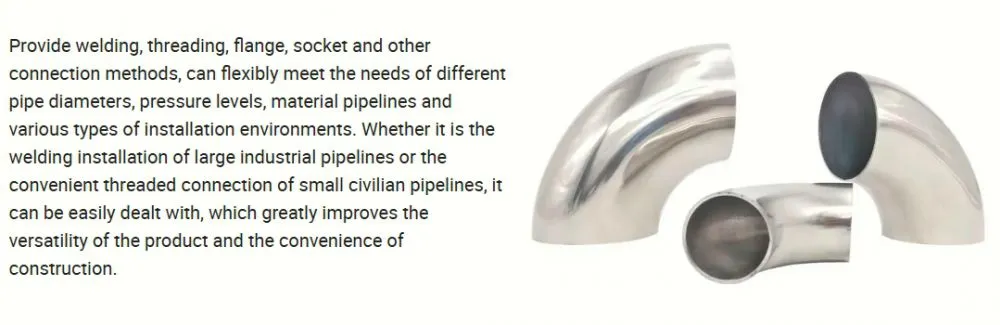

Elbow is a commonly used connection pipe fittings in water heating installation, which is used to connect the corner of the pipeline and change the direction of the pipeline. Other names: 90° elbow, right Angle bend, love bend, stamping elbow, pressing elbow,mechanical elbow, welding elbow, etc.
Use: Connect two pipes with the same or different nominal diameters to make the pipes turn 90% 45°, 180° and various degrees.
The bending radius is less than or equal to 1.5 times the diameter of the pipe belongs to the elbow, and the bending radius is greater than 1.5 times the diameter of the pipe belongs to the bend.
Product Parameter
Type
Elbow
Size
1/2"-48"
Wall Thickness
SCH5S-XXS
Material
CS, SS, Alloy Steel
Degree
30° 45° 60° 90° 180° and so on
Radius
SR, LR, 2D, 3D, 4D, 5D, 6D...
Standards
ASTM, GB, DIN, JIS, EN
Customized Support
OEM, ODM, OBM
Technique
Hot Rolled, ERW, Cold Drawn, Cold Rolled, Extruded
Surface Treatment
Mirror Polished/Gal./Sand Blast/Black Paint
Shape
Equal
End
BW/BE/PE
Head Code
Round
Connection
Welding
Technics
Forged
Production process
Welded,Seamless
Price Terms
CIF CFR FOB EX-WORK
Payment
TT, L/C
Marking
Logo + Size(mm)+Material +Standard + HEAT NO or As Your Requirement
Package
In Wooden Box/pallet Or As Requested
Port
China
Warranty
1 Year






Product Description

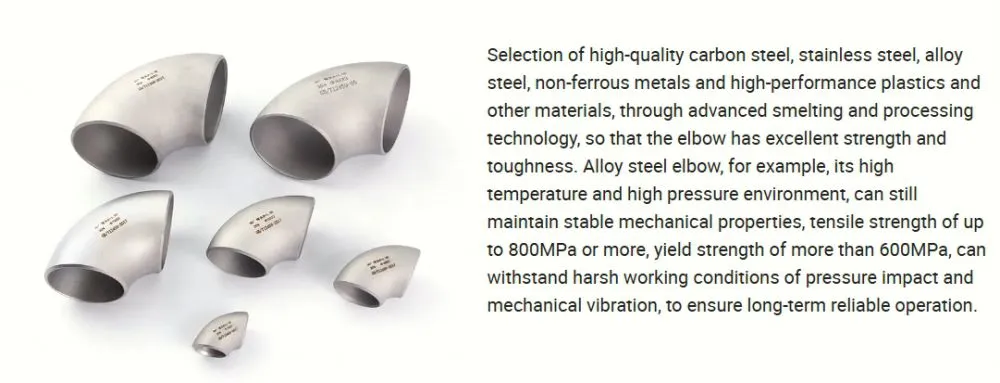

Curved Seamless Weldable Chemical Resistant Stainless Steel ElbowElbow, its main function is to change the direction of the pipeline, so that the fluid can flow in the pipeline in accordance with the preset path. In the actual working process, when the fluid flows into the elbow, due to the special bending structure inside the elbow, the flow direction of the fluid will change, in accordance with the principle of fluid dynamics on the basis of a smooth turn to another pipe, so as to realize the complex layout of the entire piping system and functional requirements. Its working principle is based on the precise guidance of the fluid trajectory, through the reasonable design of the radius of curvature and bending angle, effectively reduce the energy loss and pressure drop in the process of turning the fluid to ensure that the piping system operates efficiently and stably.




size
ASME OUTSIDE DIAMETER
SCH40
SCH160
15  1/2"
21.3
2.77
4.78
25  1"
26.7
2.87
5.56
50  2"
60.3
3.91
8.74
80  3"
88.9
5.49
11.13
100 4"
114.3
6.02
13.49
125 5"
141.3
6.55
15.99
China ISO Standard Sch40 Carbon Steel Stainless Steel 304 316 90 Degree Butt Welded Elbow



Company Profile






Zhongzheng Stainless Steel Co., Ltd. was established in 2018 with aregistered capital of 20 million yuan. lt is a manufacturing company thatintegrates the production of special materials, manufacturing andprocessing, sales, and technology development. The company covers anarea of 2,000 square meters and has 200 employees. it has built worldclass stainless steel seamless pipe (hot piercing, cold drawing, cold rollingproduction lines, precision steel pipe production lines, and large, mediumand small-sized welded pipe production lines. The company has beencommitted to providing high performance, high precision, hightemperature-resistant, high pressure-resistant, and corrosion-resistantsolutions and technical services for industrial equipment pipeline systems.The company specializes in producing a series of steel pipes, pipe fittingsflanges, etc., such as high-temperature (nickel-based) alloys, austeniticduplex steel, urea grade stainless steel, super stainless steel, etc. Thecompany is equipped with an annual production capacity of 5,000 tons ofstainless steel seamless pipe production line, 7,000 tons of welded pipeproduction line, and 500 tons of pipe fittings production line, etc. lt canoroduce stainless steel seamless pipes with diameters ranging from ‌Φ‌6 to‌Φ‌762 and wall thicknesses ranging from 0.5 to 70 mm, stainless steelwelded pipes with diameters ranging from ‌Φ‌15 to ‌Φ‌2200 and wallthicknesses ranging from 0.5 to 80 mm, pipe fittings, and various stainlesssteel ingots, round steel, rough pipes, etc., according to customerrequirements and in accordance with standards such as GB, ASTM, etc.


Company Profile












Packaging & Shipping


Curved Seamless Weldable Chemical Resistant Stainless Steel Elbow
