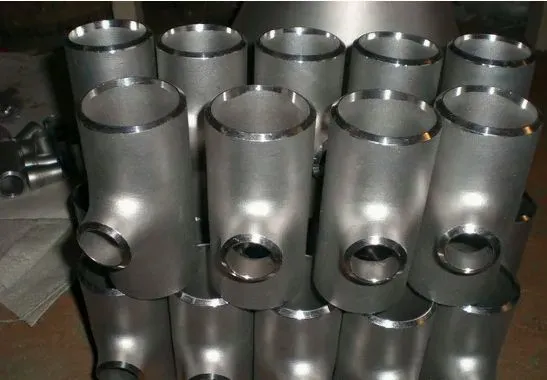

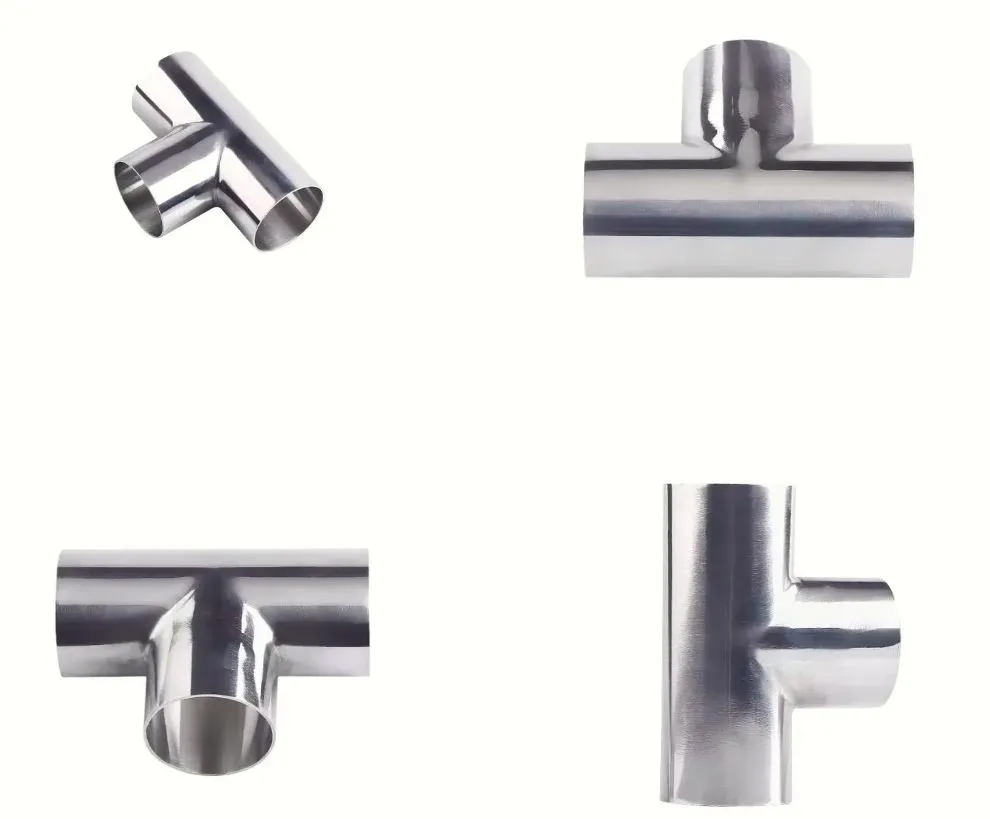

Help Center3A/SMS/DIN Stainless Steel Polished Welded Reducing Tee
Related Products
-
3A Stainless Steel Food Grade Clamped Y Type Tee Tube FittingNegotiableMOQ: 1 Piece -
304 316L Stainless Steel Welding Hygienic Sanitary 3 Way Tee Y Type Pipe FittingNegotiableMOQ: 1 Piece
-
Hot Sale Guaranteed Quality Unique Sanitary Stainless Steel304 316 Pipe Fitting Tri Clamp Tee Y Type TeeNegotiableMOQ: 1 Piece
-
Stainless Steel Sanitary Pipe Fitting 90 Degree Double Head Y Shaped ElbowNegotiableMOQ: 1 Piece
-
Stainless Steel Sanitary Pipe Fitting 90 Degree Double Head Y Shaped ElbowNegotiableMOQ: 1 Piece
| Spefication | ||
| Surface treatment | Carbon steel Stainless Steel | |
| Executive Standard | ASME B 16.9, GB/T12459, DIN, JIS, BS, etc | |
| Wall Thickness | SCH10 ~S160, STD, XS, XXS | |
| Size | Customized Size | |
| Delivery time | 7-10 days | |
| Payment terms | 30% prepayment T/T,balance against B/L; L/C. Free samples Available |
|
| Free samples | Available | |
| Technics | Forged, Welded | |
| Packing | Wooden cases, wooden pallets, or according to customer needs. | |
| Application Area | Petrochemical and chemical company, Fertilizer Industry, electric power, shipbuilding, papermaking, construction, offshore platform, Refinery Industry, etc | |
| RELATED PRODUCTS | 1.Carbon steel nipples and sockets | 7. P.T.F.E .thread seal tape |
| 2. Flanges | 8. Brass fittings | |
| 3. Malleable iron pipe fittings | 9. Ductile iron pipe fittings | |
| 4. Pipes | 10. Copper fittings | |
| 5.High-pressure fittings | 11. Sanitary fittings, etc,. | |
| 6. Valves | 12. Grooved fittings | |
Application | |
| Weld Fittings are used on permanent installations where process piping and equipment can be C leaned in place (CIP) and removal from the system is not required.Weld Fittings are offered in nominal tube sizes 1/2~ through 8~ in T304 and T316L materials.Unifom wall thickness for 1/2~ through 3~ sizes measure .065 (16 ga).In 4~ size,wall thickness measures.083 (14 ga),6~ and 8~ .109 (12 ga). | |
| Materials | |
| Body: | SS304,316L |
| SIZE: | 1/2 '' - 4 '', DN10-DN150 |
| Standard: | DIN, SMS, 3A, ISO, IDF, BPE, AS |
| Connection end: | welded, clamped, threaded, unioned, as per requirement. |
| Surface finish: | mirror, matt polished. |
| Inside Ra 0.4, outside Ra 0.8.Roundness, thickness equal to meet international food standard. | |
| Elbow classification: | 45 degrees 90 degrees 180 degrees / long elbow, short elbow |
| Size head: | concentric size head, eccentric size head |
| Three links: | long three links, short three links, U-type three links,Pipe fittings (elbow, tee, size head, four links) |
Zhongzheng Stainless Steel Co., Ltd. was established in 2018 with aregistered capital of 20 million yuan. lt is a manufacturing company thatintegrates the production of special materials, manufacturing andprocessing, sales, and technology development. The company covers anarea of 2,000 square meters and has 200 employees. it has built worldclass stainless steel seamless pipe (hot piercing, cold drawing, cold rollingproduction lines, precision steel pipe production lines, and large, mediumand small-sized welded pipe production lines. The company has beencommitted to providing high performance, high precision, hightemperature-resistant, high pressure-resistant, and corrosion-resistantsolutions and technical services for industrial equipment pipeline systems.The company specializes in producing a series of steel pipes, pipe fittingsflanges, etc., such as high-temperature (nickel-based) alloys, austeniticduplex steel, urea grade stainless steel, super stainless steel, etc. Thecompany is equipped with an annual production capacity of 5,000 tons ofstainless steel seamless pipe production line, 7,000 tons of welded pipeproduction line, and 500 tons of pipe fittings production line, etc. lt canoroduce stainless steel seamless pipes with diameters ranging from Φ6 toΦ762 and wall thicknesses ranging from 0.5 to 70 mm, stainless steelwelded pipes with diameters ranging from Φ15 to Φ2200 and wallthicknesses ranging from 0.5 to 80 mm, pipe fittings, and various stainlesssteel ingots, round steel, rough pipes, etc., according to customerrequirements and in accordance with standards such as GB, ASTM, etc.
