Product Description
I. Overview
The combination of EPRO PR6425/010 - 100 and CON011 is a precision set elaborately designed for monitoring the operating status of industrial equipment. Among them, PR6425/010 - 100, as an eddy current sensor, is mainly responsible for accurately perceiving the key operating parameters of the equipment; CON011, as a preamplifier, undertakes the important responsibilities of signal conditioning and transmission. The two work closely together, capable of providing stable and reliable monitoring data for various industrial equipment, and play an indispensable role in the industrial production process.
As a well-known brand in the industry, EPRO has always been committed to the innovation and research of industrial monitoring technology. With profound technical accumulation and persistent pursuit of quality, it has established an excellent reputation in the field of industrial monitoring. This combination of PR6425/010 - 100 and CON011 is the crystallization of the brand's technical strength and professionalism, aiming to meet the strict requirements of high-precision monitoring of equipment operating status in many industries such as petrochemicals, electric power, and metallurgy, and to ensure the safe and stable operation of industrial production.
II. Technical Parameters

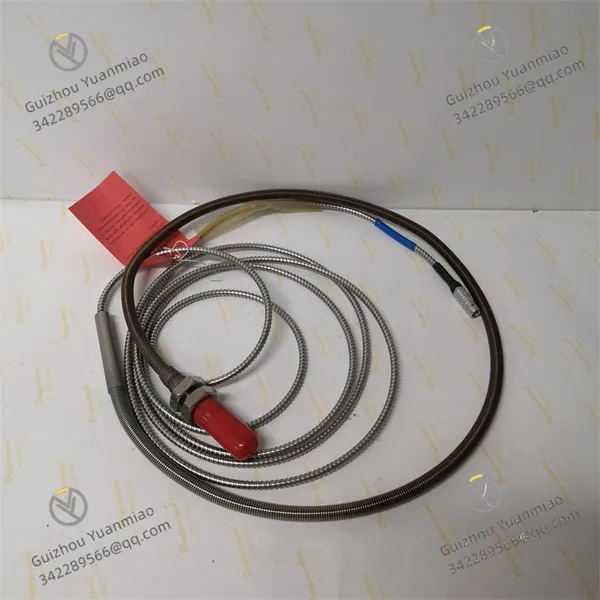

(1) Parameters of PR6425/010 - 100 Sensor
Range: Its range is set to ±2mm. This range is carefully designed and suitable for monitoring displacement, vibration and other parameters of key parts of various industrial equipment. Whether it is the radial vibration monitoring of the rotating machinery shaft system or the displacement measurement of reciprocating equipment components, this range can accurately cover, providing reliable data support for the accurate evaluation of the equipment's operating status.
Sensitivity: The sensitivity reaches 4V/mm, which means that the sensor can respond sensitively to extremely small physical changes. Even if there are slight fluctuations in the equipment's operating parameters, it can quickly capture and convert them into recognizable electrical signal output, ensuring the timeliness and accuracy of the monitoring data, enabling operators to detect potential problems in the equipment's operation in a timely manner.
Rated Air Gap: The rated air gap is 3.0mm. This parameter is determined based on a large number of practical application experiences and in-depth research on the operating characteristics of different industrial equipment. Under this air gap condition, the sensor can maintain the optimal sensing distance from the measured object, ensuring the stability and accuracy of the measurement signal, and effectively avoiding signal interference or measurement errors caused by improper air gaps.
Parameters related to the measured object:
Material Requirements: It is suitable for metal materials, with 42CrMo4 steel as the reference material. This is because such metals have good conductivity and stability, which can perfectly match the induction principle of the sensor, ensuring the reliability and consistency of the measurement results. In industrial production, most components of key equipment, such as shafts and gears, are made of metal materials, so this sensor can be widely used in the monitoring of various industrial equipment.
Shape Adaptability: It can effectively measure the measured objects of various shapes such as shafts, planes, and measuring discs on shafts. This wide shape adaptability allows the sensor to be easily installed and used in the monitoring applications of different types of industrial equipment. Whether it is a conventional cylindrical shaft component or a complex-shaped mechanical part, accurate measurement can be achieved.
Size Requirements: For the measuring disc on the shaft, its height is required to be 40mm; for the diameter of the measured shaft, it is required to be not less than 80mm. These size requirements are determined based on the sensing characteristics of the sensor and the actual structural characteristics of industrial equipment, ensuring that the sensor can perform at its best and obtain accurate measurement data under the condition of meeting the size requirements.
Environmental Adaptability Parameters:
Operating Temperature Range: The operating temperature range is - 35°C to + 180°C, which can adapt to various harsh industrial environmental temperature conditions. Whether in high-temperature smelting workshops or cold outdoor workplaces, the sensor can work stably, not affected by temperature changes, and continuously provide reliable data for monitoring the equipment's operating status.
Withstand Temperature: It can withstand an instantaneous maximum temperature of + 380°C, and the transportation and storage temperature range is - 40°C to + 70°C. This means that during the installation, transportation, and long-term storage of the equipment, the sensor can maintain good performance, will not be damaged due to temperature fluctuations, and greatly improves the applicability and service life of the product.
Vibration and Impact Resistance: At 25°C, it has good vibration and impact resistance, and can withstand 4g vibration and impact at 60Hz. This enables the sensor to work stably in the complex mechanical vibration and possible accidental impact environment of the industrial site, ensuring the accuracy and continuity of measurement data, and effectively avoiding measurement errors or equipment failures caused by external vibration and impact.
Pressure Resistance: The sensor and cable have a certain pressure resistance capacity, which can withstand 2bar pressure. This characteristic enables it to work normally in some industrial application scenarios with pressure environments, such as the monitoring of petrochemical pipeline equipment, without being interfered by pressure factors, ensuring the reliability of equipment operating status monitoring.

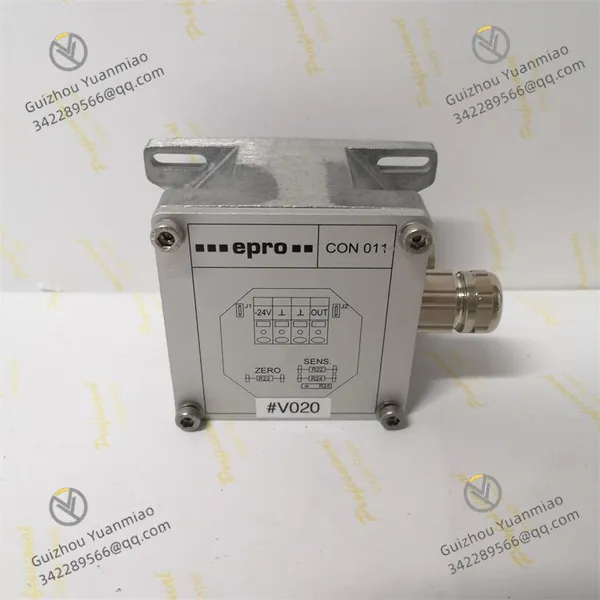

(2) Parameters of CON011 Preamplifier
Input and Output Characteristics:
Input: It is specially adapted to the turbine sensor PR6422/... ~ PR6426/... series, and perfectly matches the PR6425/010 - 100 sensor. Through a specific interface connection method, it can accurately receive the original signal from the sensor, laying the foundation for subsequent signal processing and transmission.
Output: The output signal is an AC voltage signal superimposed on a DC voltage, which is proportional to the shaft vibration. This output mode can intuitively reflect the vibration state of the equipment, facilitating the analysis and processing of the subsequent monitoring system. At the same time, the preamplifier has open-circuit, short-circuit protection and reverse protection functions, effectively preventing equipment damage caused by line faults or connection errors, and improving the reliability and stability of the system.
Output Voltage Range:
Linear Range: When the supply voltage is - 24V, the linear range of the output voltage is - 4V to - 20V. Within this range, the output voltage has a good linear relationship with the vibration state of the equipment, which can provide accurate and stable signals for the monitoring system, facilitating operators to accurately judge the operating state of the equipment.
Maximum Range: The maximum range of the output voltage is - 1V to - 22V. This wide output range can adapt to changes in equipment vibration signals under different working conditions. Even in extreme cases of equipment operation, it can ensure the effective output of signals, providing sufficient data support for equipment fault diagnosis.
Reference Voltage: The reference voltage is - 12V (symmetrical measurement range at both ends). This reference voltage provides a stable benchmark for signal processing and analysis, helping to improve measurement accuracy and system stability.
Electrical Performance Parameters:
Internal Resistance: The internal resistance is 100kΩ. This internal resistance parameter is carefully designed to ensure good impedance matching with the subsequently connected monitoring equipment during signal transmission, reducing signal attenuation and distortion, and ensuring the quality and stability of signal transmission.
Response Time: The response time is 15μs, which can quickly respond to the signal input by the sensor and timely output the processed signal to the monitoring system. In the case of rapidly changing operating status of industrial equipment, such a short response time can ensure that operators obtain the latest operating information of the equipment in a timely manner, providing strong support for early warning and timely handling of equipment faults.
Accuracy-related Parameters:
Linear Error: When connected to the sensor PR6425, the linear error is ≤6.0%. This error range is at a high level in the industrial monitoring field, which can ensure the linear relationship between the output signal and the actual vibration state of the equipment, providing a reliable basis for the accurate evaluation of the equipment's operating state.
Temperature Drift: The zero temperature drift is 200mV/100K, and the sensitivity temperature drift is <2%/100K. This means that when the temperature changes, the zero point and sensitivity of the preamplifier change very little, which can maintain stable measurement performance in different temperature environments, effectively reducing measurement errors caused by temperature fluctuations, and improving the environmental adaptability and measurement accuracy of the system.
Time Drift: The maximum time drift is 0.3%, indicating that the performance of the preamplifier can remain relatively stable during long-term operation, without obvious drift due to the passage of time, ensuring the long-term accuracy and reliability of the monitoring data.
Power Supply Voltage Error: The requirement for the power supply voltage error is <0.2%/V, which indicates that the preamplifier has high requirements for the stability of the power supply voltage, can suppress the impact of power supply voltage fluctuations on the measurement results to a certain extent, and ensure accurate and stable signal output under different power supply conditions.
Physical Characteristics Parameters:
Connection Method: It is connected to the sensor through a LEMO plug. This connection method has the advantages of firm connection, good waterproof and dustproof performance, and can effectively avoid signal transmission failures caused by loose connections or the influence of dust and water vapor in the complex environment of industrial sites. At the same time, the preamplifier can also be connected to other external devices through screw terminals, facilitating integration with subsequent monitoring systems.
Protection Level: The protection level is IP67, with excellent protection performance. This means that the preamplifier can be immersed in water at a depth of 1 meter for 30 minutes without affecting its normal operation. At the same time, it can effectively resist dust, water vapor and general mechanical collisions, providing reliable protection for internal circuits in harsh industrial environments and ensuring the stable operation of the equipment.
