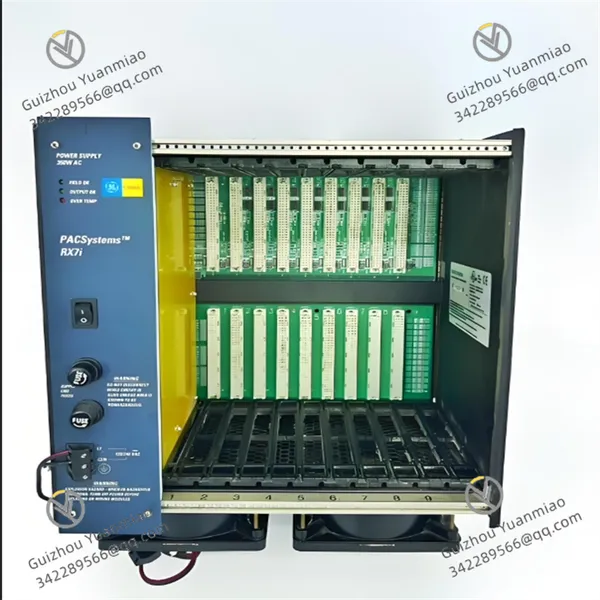

GE IC698CHS009A 9-slot I/O Rack

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Power Supply 24VDC

Operating temperature -40°C to 70°C

Size 283mm x 320mm x 190mm

I. Overview

GE IC698CHS009A is an industrial control module launched by General Electric, playing a key role in the field of industrial automation. As a rack for RX3i and Rx7i PAC systems, it provides stable physical support and necessary electrical connections for the entire control system, and can accommodate various I/O modules, CPU units, communication modules, etc. It is the basic hardware facility for building efficient industrial automation networks. Its design fully considers the complexity and harshness of industrial environments, aiming to meet the needs for stable and reliable control in different industrial scenarios.

II. Functional Characteristics

Flexible module accommodation and management: It has 9 slots, which can flexibly adapt to various types of modules. These slots support the installation of modules with different widths. Among them, slots 1-8 have a width of 20mm, suitable for single-width modules; slot 9 has a width of 40.6mm, which can accommodate double-width modules. The installation of modules is extremely convenient. Through the unique slot sensing function, it can automatically identify and configure I/O module addresses without cumbersome DIP switch or jumper settings, which greatly simplifies the system integration and debugging process and improves the efficiency of project implementation. At the same time, the rack can automatically daisy-chain interrupt acknowledgments and bus grant signals, further optimizing the communication coordination mechanism between modules and ensuring the smooth operation of the entire system.

Powerful communication capability: It has a built-in Ethernet communication function, providing an efficient data transmission channel for system connections. It supports application protocols such as SRTP and Modbus TCP/IP, and can achieve seamless connection with various devices and systems that support the same protocols. Whether it is data interaction with PLCs, accurate transmission of collected on-site data to upper-level management systems, or collaborative work with intelligent devices, this module can ensure a real-time and stable communication link, realize rapid information sharing and timely transmission of instructions, and effectively promote the intelligent development of industrial automation systems.

Reliable system compatibility: It has good compatibility with all RX3i modules, as well as CPUs and I/O devices of the Rx7i series, and can also work with 90-70 series I/O and VME modules. This wide compatibility enables users to flexibly select modules of different brands and functions for matching according to actual needs when building industrial automation systems, greatly enhancing the scalability and flexibility of the system, and facilitating users to upgrade or transform the system according to business development.

Convenient programming and control support: It can be programmed through Proficy Logic Developer PLC Machine Edition, providing developers with diverse programming options, supporting multiple programming languages such as Ladder Diagram (LDI), Instruction List (IL), Structured Text (ST), and C blocks. The rich programming options meet the needs of engineers with different programming habits and skill levels, enabling users to efficiently develop programs that meet industrial control requirements according to project characteristics and their own advantages, and realize precise control of industrial equipment and production processes.

III. Technical Parameters

Electrical parameters: The operating voltage range is 5-12VDC. This wide voltage range design can adapt to different power supply environments in industrial sites, ensuring that the module can still operate stably when there is a certain voltage fluctuation. It supports power supplies of two power levels: 100W and 350W. When using a 100W power supply, the maximum current rating is 20A (5V DC) and 1A (-12V DC); when using a 350W power supply, the maximum current rating is increased to 60A (5V DC) and 4A (-12V DC), which can provide sufficient power support for modules with different power consumption.

Physical parameters: The module size is approximately 283mm x 320mm x 190mm (length x width x height). It adopts a compact design structure, achieving powerful function integration in a limited space, and is easy to install in various control cabinets or industrial equipment. The shell is made of aluminum material, which not only has good heat dissipation performance, can effectively reduce the temperature of the module during operation, and extend the service life, but also has excellent mechanical strength and corrosion resistance, being able to resist the erosion of harsh environmental factors such as dust, vibration, and humidity in industrial sites.

Environmental parameters: The operating temperature range is -40°C to +70°C, enabling it to work normally in extremely cold or hot industrial environments. Whether in cold northern industrial bases or hot southern factories, it can ensure stable operation of the equipment. The relative humidity range is 5% to 95% (non-condensing), and its performance will not be affected in relatively humid environments, showing excellent environmental adaptability and providing strong guarantee for the reliable operation of industrial automation systems in complex environments.

IV. Advantages

High stability and reliability: Industrial-grade design standards and manufacturing processes enable it to have excellent anti-interference ability and environmental adaptability. In complex industrial environments with electromagnetic interference, frequent vibration, and large changes in temperature and humidity, it can still maintain stable performance, effectively reducing the probability of failures, ensuring long-term and uninterrupted stable operation of industrial automation systems, and reducing enterprise maintenance costs and production risks.

Easy integration and expansion: As a standard rack for RX3i and Rx7i PAC systems, it has a high degree of compatibility and integration with other equipment in the series. The simple and convenient installation and configuration process reduces the technical threshold and time cost of system integration. At the same time, the rich slot resources and strong module compatibility provide a broad space for subsequent system expansion. Users can flexibly add or replace modules according to business development and process requirements without large-scale transformation of the entire system, protecting the enterprise's early investment.

Efficient data processing and communication: The built-in high-speed Ethernet communication function, combined with support for multiple mainstream industrial communication protocols, can realize fast and accurate transmission of large amounts of data. In industrial automation systems, it can timely transmit control instructions and equipment status information, greatly improving the response speed and control accuracy of the system, ensuring efficient and precise execution of production processes, and meeting the high real-time requirements of modern industry for automation control.

Convenient programming and operation: The programming environment supporting multiple programming languages facilitates engineers with different backgrounds to carry out program development. The intuitive programming interface and convenient operation methods shorten the program development cycle and improve programming efficiency. At the same time, the automatic configuration and management functions of the module reduce manual intervention, lower the possibility of operational errors, and make the operation of industrial automation systems more stable and reliable.

Product Tags: IC698CHS009A
