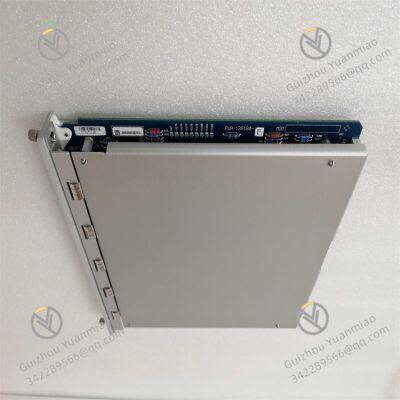

BENTLY 286566-02 Dual Channel Tachometer Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
BENTLY 286566-02 Dual Channel Tachometer Module thumbnail-1
BENTLY 286566-02 Dual Channel Tachometer Module thumbnail-2
BENTLY 286566-02 Dual Channel Tachometer Module thumbnail-3
BENTLY 286566-02 Dual Channel Tachometer Module photo-1
BENTLY 286566-02 Dual Channel Tachometer Module photo-2
BENTLY 286566-02 Dual Channel Tachometer Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




BENTLY 286566-02 is a dual-channel tachometer module in the Bently Nevada 3500/50M Series, primarily used for speed monitoring and control of industrial rotating machinery. Here are its detailed specifications:

  • Basic Parameters:

    • Dimensions: 228.6mm × 25.4mm × 241.3mm (9.0in × 1.0in × 9.5in).

    • Weight: 1.0kg.

    • Operating Voltage: Typically supplied by the 3500 system; some sources indicate compatibility with 220V (specific voltage should be confirmed based on system configuration).

    • Power Consumption: A typical value of 10.0 watts.

    • Input Impedance: Maximum 10kΩ.

    • Switch Current: 2.5A.

    • Operating Temperature Range: -40°C to +70°C.

  • 146031-01



  • Functional Features:

    • Signal Input: Accepts input signals from proximity probes or magnetic pickups, which are common sensors for capturing rotational speed-related signals in industrial environments.

    • Speed Measurement: It can determine shaft speed, rotor acceleration, and rotor direction. The measured values are compared with user-programmable alarm setpoints, and alarms are triggered when the setpoints are violated—this ensures timely alerts for abnormal speed conditions (such as overspeed or underspeed).

    • Peak Hold Function: Equipped with a peak hold function that stores the maximum speed, reverse speed, or reverse revolutions reached by the machine. The peak values can be reset manually or automatically, providing historical reference data for equipment condition analysis.

    • Signal Output: It can be configured to provide conditioned Keyphasor signals to the backplane of the 3500 rack, which can be shared with other monitors in the system. This eliminates the need for a separate Keyphasor module in the rack, simplifying system configuration and reducing costs.

    • System Integration: As a standard module of the 3500 series, it seamlessly integrates with the 3500 monitoring system, enabling centralized data transmission and management through the system’s backplane and configuration software.

125840-01 15小卡老款 (5)
