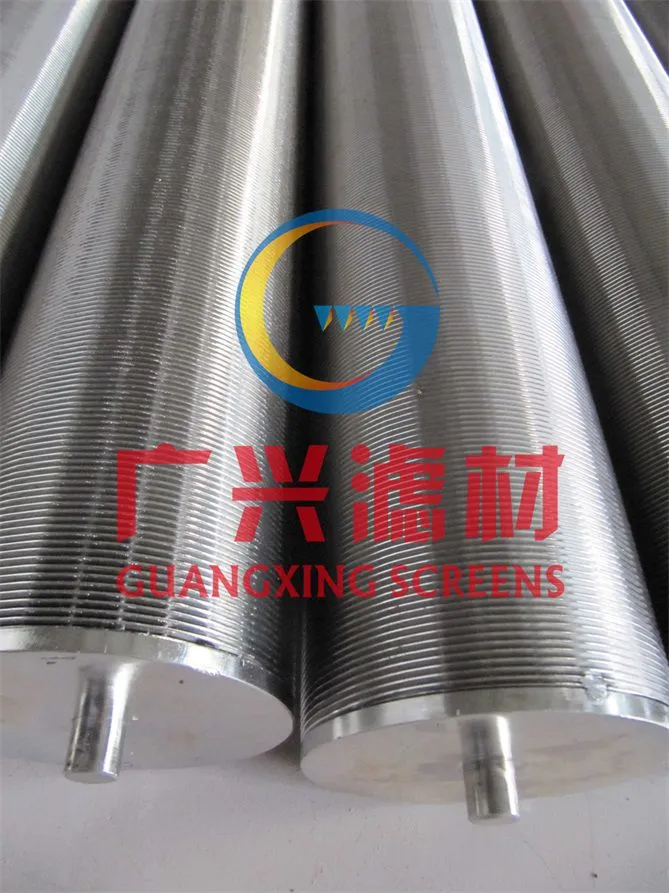

Johnson Type Wedge Wire Screen Tube

Hengshui guangxing screens learned advanced production experiences , our company has advanced production technology and innovative design . We can provide global client first- class filtration products . Until now , Guangxing is the one in China who can manufacture wedge wire screen pipe perfect round with smooth surface . Our products quality is far higher than that is from similar suppliers in china.

Brief introduction of Johnson type wedge wire screen tube
Function:liquid filtering / liquid solid separation
Efficiency:High
Open area:large open area
Cleaning way:Back flush, easy to clean
Application:filtration of beer, wine, beverages in general, syrups, gelatin, liquid food components

Material:Stainless steel304  316L 321, 2205, SS2507, Ti 6-6-2, Inco904, Hast C-276 wedge wire

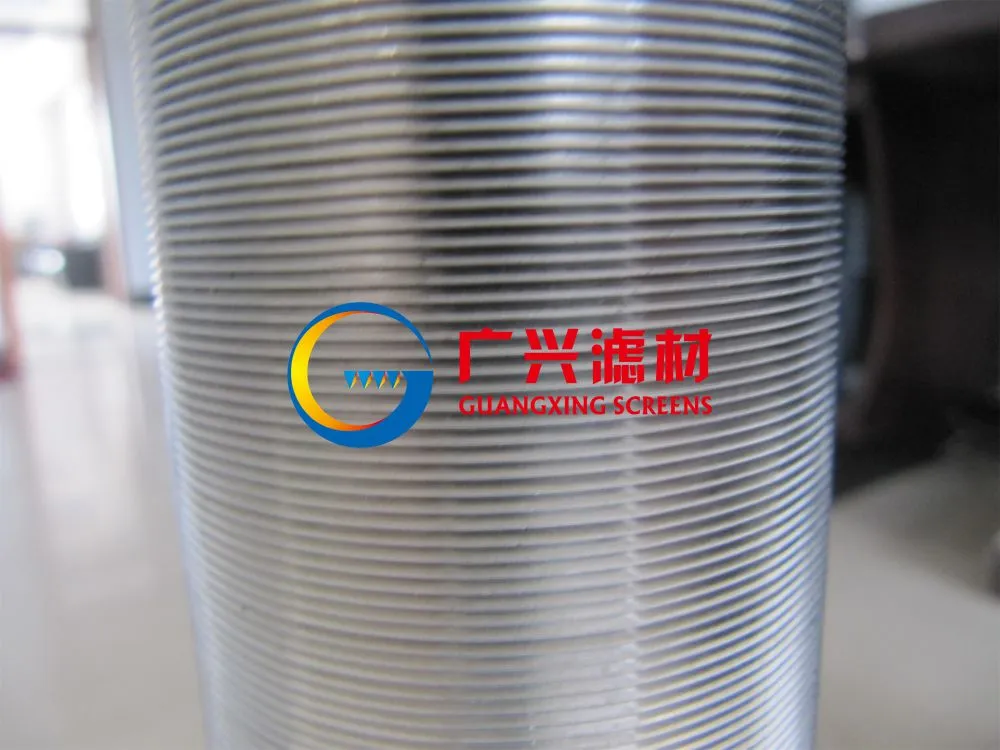

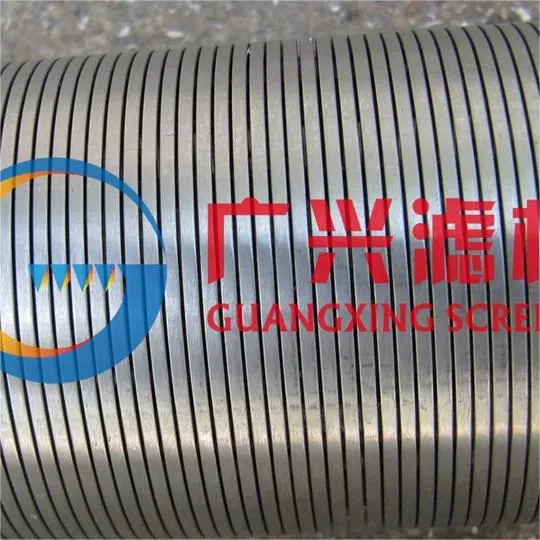

Profile wire:wedge shape, Width(mm): 0.75 1.00 1.50 Height(mm): 1.50 2.00 3.00.

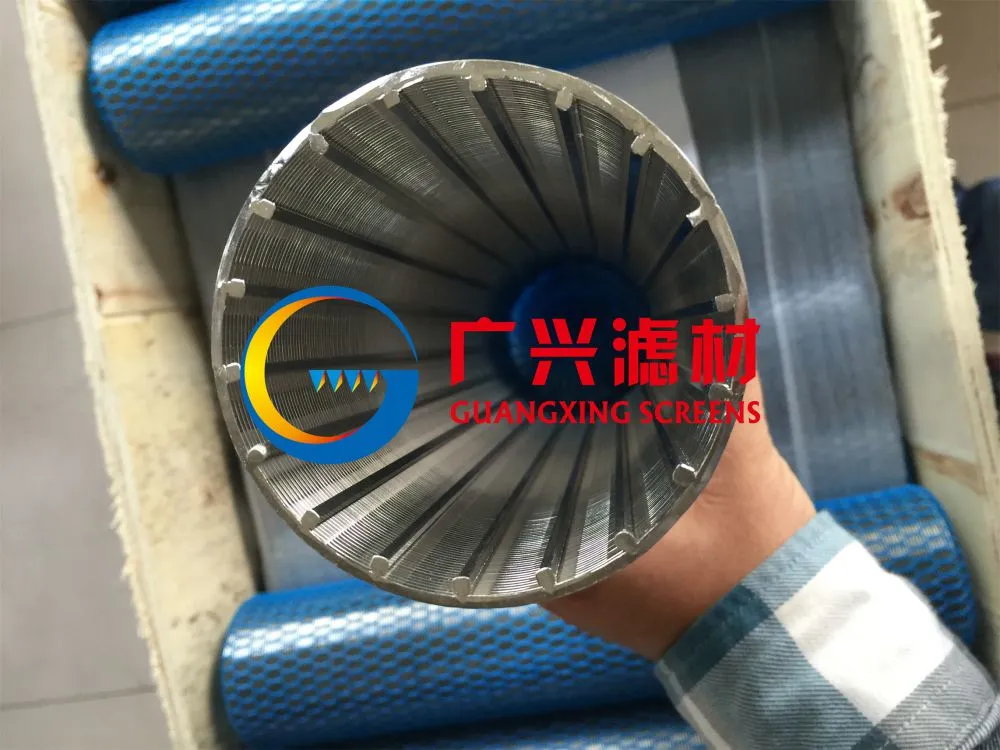

Support rods:square shape, Width(mm): 2.00; Height(mm): 2.30 3.00;

Diameter(mm):25mm 30mm 33mm 37mm  38mm  50mm 60mm ( 25.40mm- 220mm)

Length(mm):1000mm, (Less than 1800mm long)

End connection:Common fittings, NPT ,BSP end fittings, calculate price separately.
