We have nine production lines, a professional technical team, an independent quality inspection system, and a perfect after-sales service team, which can provide customized processing services for global customers.We are offering our client an excellent quality range of Wedge Wire Screen. These Wedge Wire Screen are made from very high quality raw material which ensures high durability at its end users. These Wedge Wire Screen are in high demand in the market. Different sizes and designs are easily available in the market. Our Wedge Wire Screen are available at market leading prices.wedge wire candle, beer candles 'FEATURES:
Stainless steel 316L candle filter with 15 microns slot size candle filter elements.
Wire diameter: 0.75mm,1mm,1.5x2mm, 2x3mm, 3x5mm; Backwashable welded wedge wire FOTI tubes
Low heel volume
Easy to clean smooth filtration surface
Outside to inside flow
No moving parts

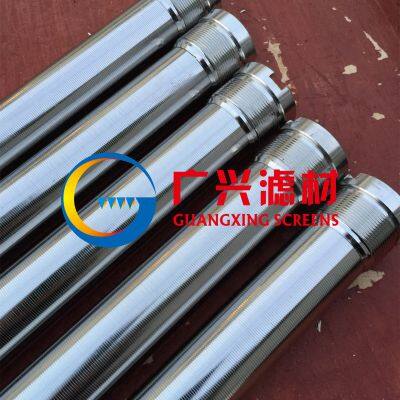

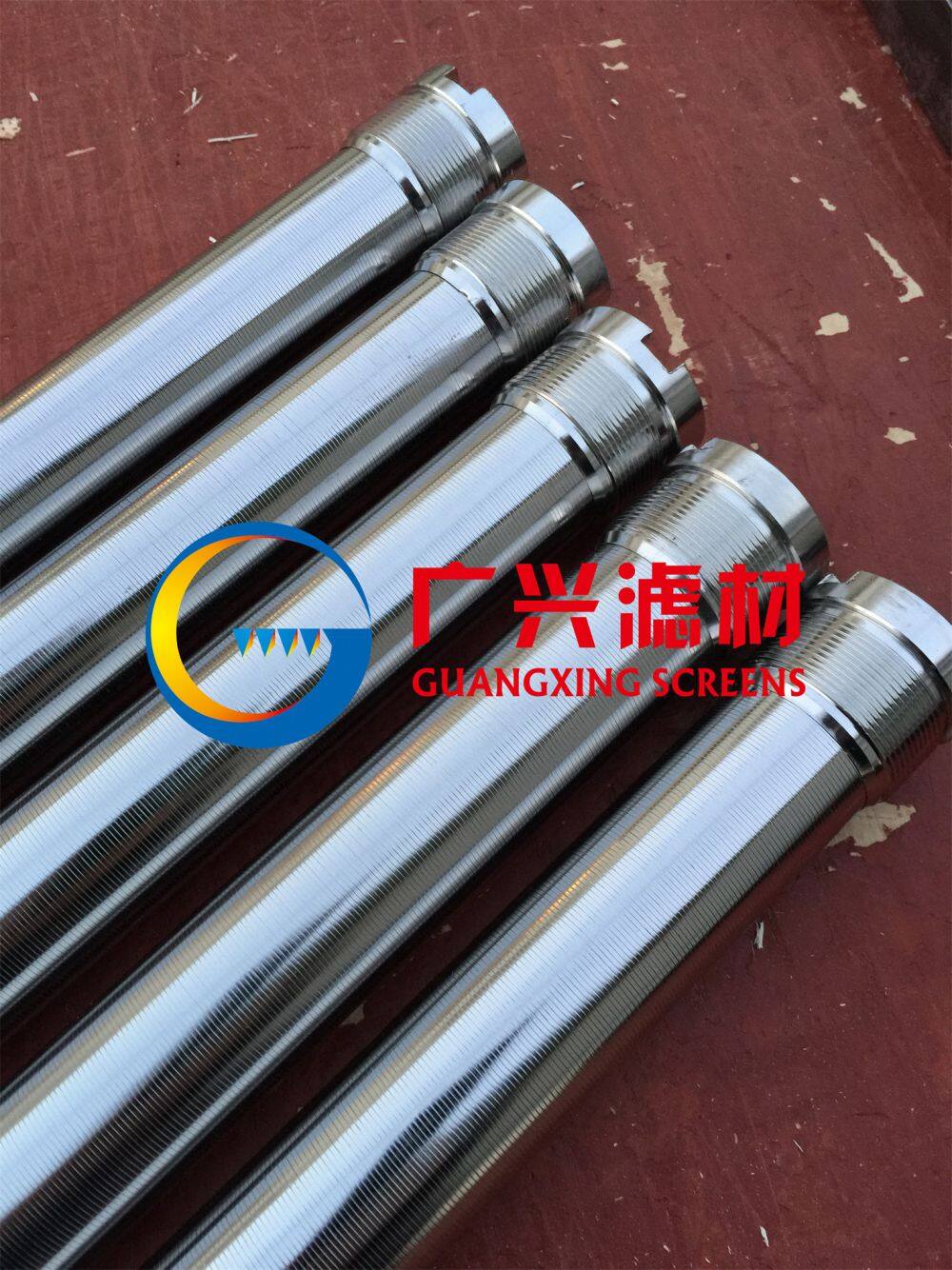

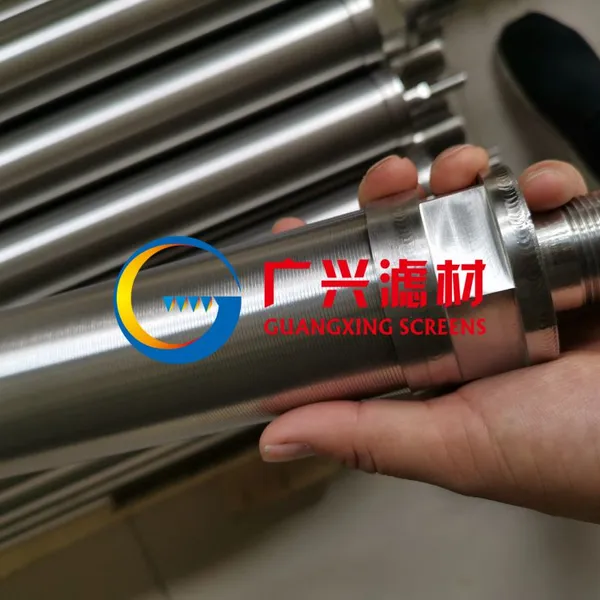

Product advantages of Wedge wire filter candle
The Wedge wire filter candle has good roundness, small gap uniformity error, minimum gap control of 10 microns, and tolerance control of 5 microns. The product is not easy to be blocked, has a firm structure, high temperature resistance, corrosion resistance, good mechanical properties, long service life, safety and reliability, etc. It can be used for filtration of various media.
Precise V-wound wire with self-cleaning function, which is good for backwashing and not easy to block.
Smooth surfacewithout edges and corners, excellent roundness
Uniform gap, minimum gap control at 20 microns, error 0.005mm, can be customized according to customer's requirements
Diversified structure, various filtering directions, flexible customized production according to customer requirements, the filtering direction can be adjusted according to customer requirements, from inside to outside or from outside to inside.
The skeleton structure of self-supporting welding has high strength and large pressure bearing
Corrosion resistantand long service life
Material selection:stainless steel 304, 316L, 904L, titanium, Hastelloy
Wedge wire filter candles can be used:
For direct filtration as medium support (for example diatoms in pre-coat filters)
The filtration capacity can be modified easily by varying the number of candle filters to obtain the required filter area.
Cleaning
A stronger flow in the backward direction, known as backwash, cleans the candle filters effecitively.
Maintenace
Because the filter elements are particularly rigid and rugged, they can be disassembled without risk of damage to the filter surface.
