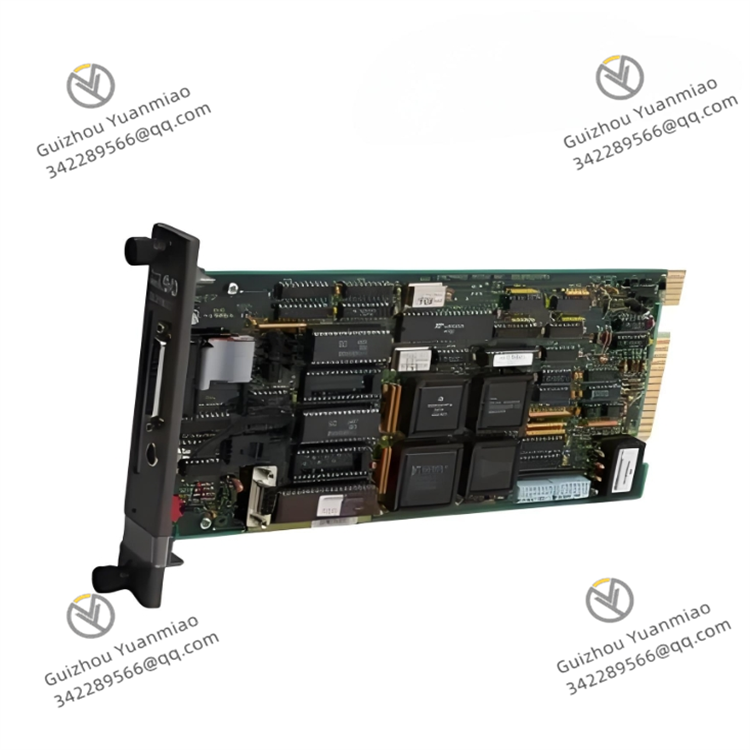

ABB Bailey IMCIS02 Control I/O Slave Module

ABB Bailey IMCIS02 is an analog input module belonging to the ABB Bailey series, which plays a key role in signal acquisition in industrial automation control systems. It is mainly used to receive various analog signals in industrial fields, such as 4-20mA current signals or 0-10V voltage signals converted by sensors or transmitters for temperature, pressure, flow, liquid level, etc. It accurately converts these continuously changing analog signals into digital signals recognizable by the control system, providing real-time and accurate process parameter data for upper control units (such as DCS, PLC). It is an important component for achieving precise monitoring and control in industrial production processes. With its high-precision signal conversion capability and stable operation performance, this module is widely used in industries with strict requirements for process parameter monitoring such as electric power, chemical industry, metallurgy, and water treatment, providing strong guarantee for the stable and efficient operation of industrial production.

•


• Number of Input Channels: Equipped with 8 independent analog input channels, each of which can be independently configured with signal types. It can collect multiple different types of analog signals at the same time, meeting the signal acquisition needs of medium-sized industrial sites. For example, in chemical production equipment, it can collect various parameter signals such as the temperature, pressure, liquid level of the reactor and the feed flow rate at the same time, realizing comprehensive monitoring of the production process.

• Input Signal Types: Supports a variety of standard analog input signals, including 4-20mA DC current signals and 0-10V DC voltage signals. It is well compatible with various common sensors (such as thermocouples, thermal resistors) and transmitters in industrial fields, and can be directly connected to signal sources without additional signal conversion equipment, simplifying system wiring.

• Measurement Accuracy: The measurement accuracy of analog signals is extremely high. The measurement accuracy for 4-20mA current signals can reach ±0.1% FS (full scale), and the measurement accuracy for 0-10V voltage signals can reach ±0.15% FS. It can accurately capture subtle changes in signals, ensuring that accurate process parameter data is provided to the control system, meeting the needs for high-precision monitoring in industrial production.

• Conversion Rate: The signal conversion rate of each channel is relatively fast, usually less than 100ms. It can quickly respond to changes in analog signals and reflect the dynamic situation of on-site process parameters in real time, which is suitable for application scenarios with high requirements for signal real-time performance, such as monitoring of rapidly changing pressure and flow.

• Isolation Performance: Adopts advanced isolation technology, the isolation voltage between channels and between channels and the internal circuit of the module reaches 2500V AC, effectively blocking on-site electromagnetic interference, ground loop interference and signal crosstalk between different channels, improving the working stability of the module in complex electromagnetic environments, and ensuring the accuracy of signal measurement.

• Power Requirements: The working power supply is 24V DC, and the total current during normal operation is about 200mA (excluding input signal current). It has a wide power supply adaptation range (18V DC-30V DC), and can operate stably in an environment with industrial power fluctuations, reducing the risk of equipment failure caused by unstable power supply. The module integrates overvoltage and overcurrent protection circuits, further improving the safety of power supply use.

• Environmental Adaptability: The operating temperature range is 0℃-60℃, which can operate reliably in the common temperature environment of industrial workshops; the relative humidity is 5%-95% RH (non-condensing), which can adapt to humid production environments, such as paper mills, water treatment plants and other places with high humidity, ensuring the stable performance of the module under various complex environmental conditions.

• Physical Specifications: The module has a compact size and adopts a standard rack mounting method, which is suitable for installation in ABB Bailey series control cabinets or terminal cabinets. When used with other modules (such as digital input/output modules, communication modules), it can effectively save installation space, facilitate system integration and maintenance, and optimize the layout inside the control cabinet.

•


• Independent Channel Configuration and Calibration: Each input channel can be independently configured with parameters such as signal type (current or voltage) and measurement range through software to meet the access needs of different signal sources. It also supports online calibration function. Users can calibrate the measurement accuracy of each channel through a dedicated calibration tool to ensure the accuracy of measurement data during long-term use without disassembling the module, reducing maintenance costs.

• Status Indication and Diagnostic Functions: The module is equipped with multiple LED indicators, including power indicators, running indicators and status indicators for each channel. The power indicator is on, indicating normal power supply; the running indicator flashes, indicating that the module is working normally; the channel indicator can reflect whether the signal of the corresponding channel is normal. In addition, it has a complete self-diagnostic function, which can monitor abnormal situations such as internal circuit faults, power supply faults, and channel overload in real time. When a fault is detected, it sends alarm information to the upper computer through the communication interface, facilitating maintenance personnel to find and deal with faults in time and reducing system downtime.

• Anti-Interference Design: In addition to isolation technology, the module adopts multi-stage filter circuits and shielding measures inside, which can effectively suppress electromagnetic interference, radio frequency interference and power supply noise in industrial fields, ensuring that it can stably collect signals in environments close to strong interference sources such as high-power motors and frequency converters, avoiding measurement errors caused by interference, and ensuring signal reliability.

• Compatibility and Integration: As a member of the ABB Bailey series, it has excellent compatibility with the series' DCS systems (such as INFI 90, Network 90), and can be seamlessly integrated into the system. It realizes data interaction with the control unit through the system bus, simplifies the system configuration and debugging process, and reduces the user's integration cost. It also supports connection with third-party control systems, improving the flexibility and scalability of the system.

•


• Power Industry Process Monitoring: In the boiler control system of thermal power plants, it is used to collect key parameter signals such as the water level of the boiler drum, steam pressure, superheated steam temperature, and furnace negative pressure. These signals are converted into digital signals by the IMCIS02 module and then transmitted to the DCS system. The control system adjusts the fuel supply, air supply and other parameters in real time according to these parameters to ensure the safe and stable operation of the boiler and improve power generation efficiency. In hydropower stations, it can be used to collect parameters such as the speed of the water turbine, volute pressure, and tail water level, providing data support for the operation control of the water turbine.

• Chemical Production Process Control: In the chemical batch reaction process, it is used to collect parameter signals such as temperature, pressure, stirring speed in the reactor, and flow rate and liquid level of reaction materials. The module transmits these signals to the DCS system in real time. The control system precisely controls the reaction process by adjusting heating devices, cooling systems, feed valves and other equipment according to the set process curve to ensure the stability of product quality. When it is detected that the parameters exceed the process range, an alarm signal is sent in time to remind the operator to intervene.

• Metallurgical Industry Parameter Monitoring: In the blast furnace ironmaking process of iron and steel plants, it is used to collect parameter signals such as blast furnace top pressure, hot air temperature, gas flow, and material level. These signals are transmitted to the control system through the module. Operators can grasp the operating status of the blast furnace in real time, adjust material distribution, air supply and other operations according to parameter changes, optimize the blast furnace ironmaking process, improve pig iron output and quality, and reduce energy consumption.

• Water Treatment Process Monitoring: In urban sewage treatment plants, it is used to collect parameter signals such as the liquid level of sedimentation tanks, the dissolved oxygen content of aeration tanks, the flow rate of inlet pumps, and the pH value of effluent water quality. The module transmits these signals to the PLC or DCS system. The control system adjusts the operation of aeration equipment according to the dissolved oxygen content and controls the start and stop of drainage pumps according to the liquid level, realizing automatic control of the sewage treatment process, improving sewage treatment efficiency, and ensuring that the effluent water quality meets the standards.
