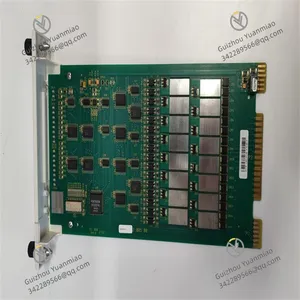

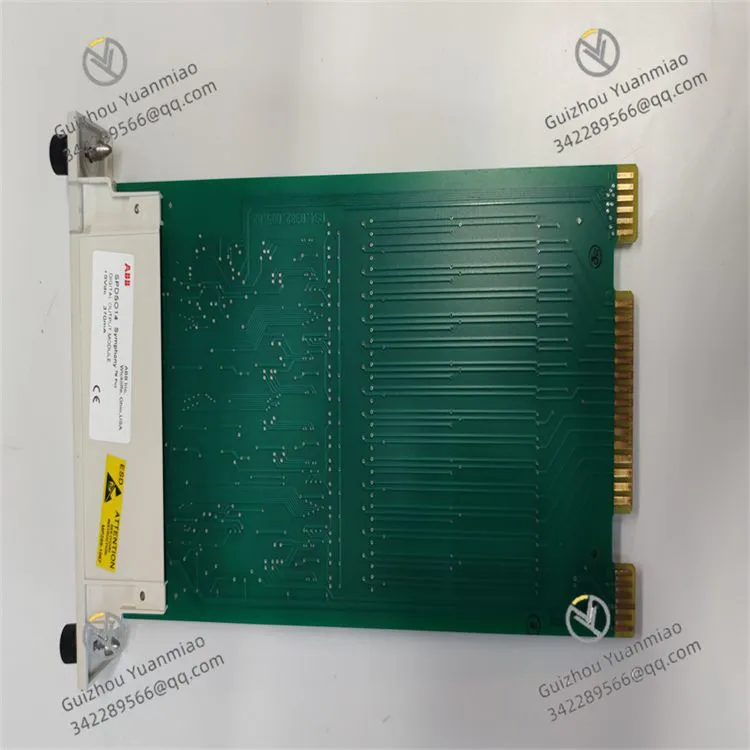

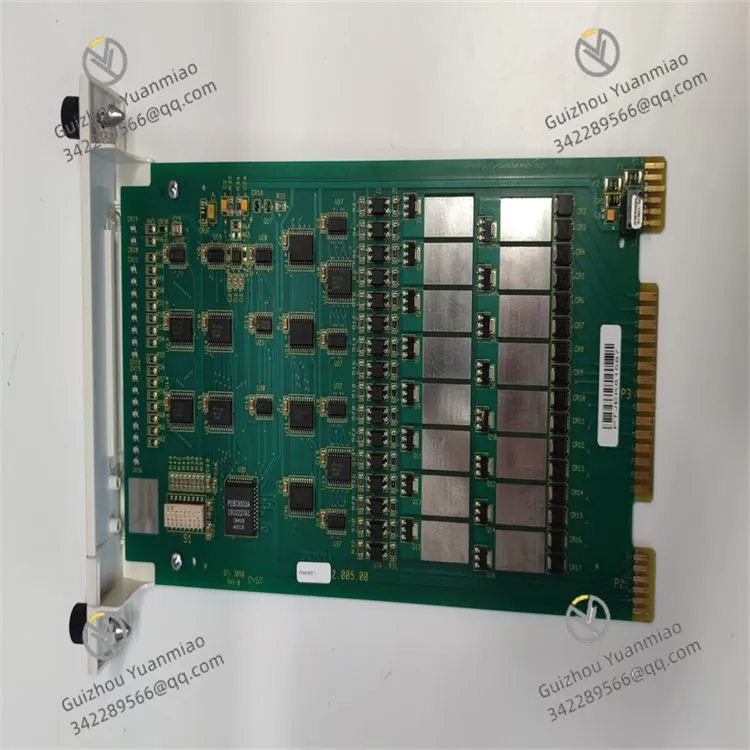

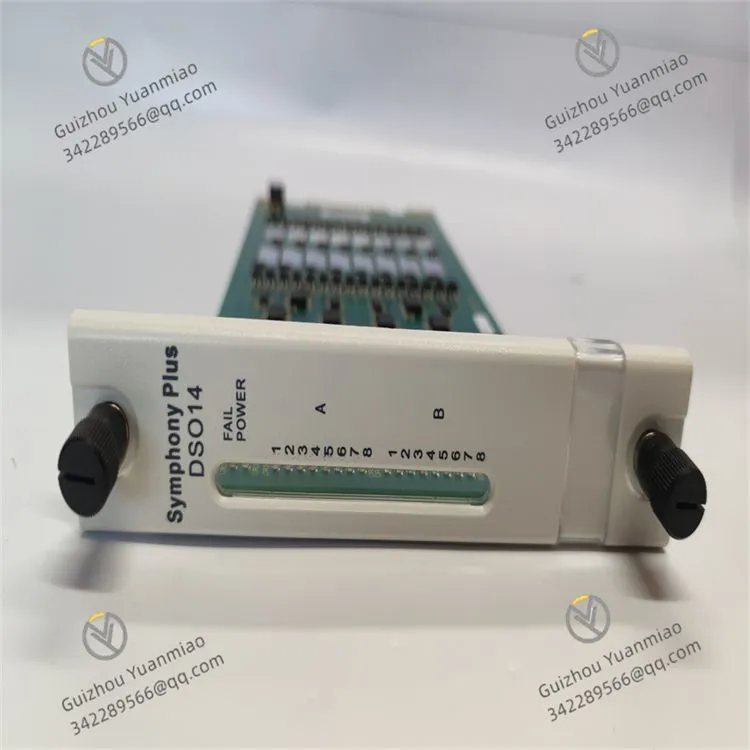

ABB Bailey SPDSO14 Digital Output Module

ABB Bailey SPDSO14 Digital Output Module thumbnail-3

ABB Bailey SPDSO14 Digital Output Module photo-1

ABB Bailey SPDSO14 Digital Output Module photo-2

ABB Bailey SPDSO14 Digital Output Module photo-3

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

power supply 24V DC

Operating Temperature -20℃ to +60℃

Dimensions 100mm×85mm×60mm

Overview

ABB Bailey SPDSO14 is a digital output safety barrier module designed specifically for explosion-proof environments in the Bailey series, mainly used in industrial fields with flammable and explosive risks such as petroleum, chemical industry, and natural gas. It acts as a "safe signal executor" in the system, capable of receiving digital control commands from controllers in safe areas (such as DCS, PLC) and safely transmitting signals to executive devices in hazardous areas (such as explosion-proof relays, explosion-proof solenoid valves, explosion-proof indicator lights) through intrinsic safety design. At the same time, it strictly limits the energy output to hazardous areas to prevent explosion accidents caused by electric sparks or excessive temperature, ensuring that control commands are executed safely and accurately in hazardous environments.

Core Parameters

Power Adaptation: The safe side operating power supply is 24V DC, with an allowable voltage fluctuation range of 19.2V - 28.8V DC, adapting to standard DC power supplies in industrial sites; the hazardous side does not require independent power supply, and control signals and weak energy are transmitted through signal lines, meeting intrinsic safety requirements; the safe side power consumption is approximately 2.5W, and the low-energy design reduces heat generation and extends the module's service life.
Digital Output: Equipped with 4 independent digital output channels, the output type is transistor switch signals, which can drive low-power executive devices in hazardous areas. The maximum output current of each channel is 50mA, and the output voltage is ≤30V DC, meeting the energy limitation requirements of intrinsic safety. The isolation voltage between the safe side and the hazardous side reaches 2500V AC, and the isolation voltage between channels is 1000V AC, effectively blocking dangerous energy conduction and signal interference.
Response Time: The typical on/off response time of each output channel is less than 5ms, enabling quick response to controller commands. For example, in emergency shutdown scenarios, it can quickly cut off the power supply of equipment in hazardous areas, shortening the safety response time.
Environmental Adaptability: The safe side operating temperature range is -20℃ - +60℃, and the hazardous side is -40℃ - +70℃, allowing stable operation in extreme temperature environments; the relative humidity is 5% - 95% (non-condensing), adapting to humid coastal industrial areas or rainy season environments; the anti-vibration performance complies with IEC 60068-2-6 standards, capable of withstanding vibration shocks of 10Hz - 150Hz, adapting to the vibration environment near pump sets, compressors, and other equipment.
Physical Specifications: The size is approximately 100mm×85mm×60mm, and the weight is about 0.3kg. It adopts DIN rail mounting, and its compact structure saves space in the control cabinet, suitable for explosion-proof control systems with high-density installation.

Functional Features

Intrinsic Safety Output Control: Adopts an energy-limiting and current-limiting circuit design to strictly control the voltage (≤30V) and current (≤50mA) of each output channel, ensuring that the energy output to hazardous areas is always lower than the ignition threshold of explosive mixtures. Even in case of module failure (such as output short circuit), the internal protection circuit will quickly limit the current below the safe value, eliminating the risk of explosion from the source. For example, in natural gas processing workshops, it can prevent sparks caused by output signals from igniting natural gas.
Multiple Isolation Protection: Achieves dual isolation of signals and power supplies. Signal isolation cuts off electrical connections through optocouplers, and power isolation uses isolated DC/DC converters to prevent energy exchange between safe areas and hazardous areas. The dual isolation significantly reduces the risk of hazard transmission. For example, around chemical reaction kettles, it can prevent high voltage from safe areas from entering hazardous areas.
Real-Time Fault Diagnosis: Equipped with a comprehensive self-diagnostic function, it can monitor the short circuit, overload, disconnection of output channels, as well as the module's own power supply abnormalities and isolation faults. When a fault is detected, the LED indicator on the safe side (such as a red fault light staying on) alarms in a timely manner and sends a fault code to the upper-level system through the bus (such as "E01: Channel 1 short circuit"), facilitating maintenance personnel to quickly troubleshoot, and the diagnosis process does not affect the normal output of other channels.
Enhanced Anti-Interference: Integrates multi-level filter circuits (RC filter, electromagnetic interference filter) internally, which can effectively suppress electromagnetic noise and high-frequency interference in industrial sites. In factory areas with dense high-voltage motors and frequency converters, it can ensure the stability of output signals, avoiding misoperation of executive devices caused by interference, such as preventing explosion-proof solenoid valves from unnecessary switching actions due to signal fluctuations.
System Compatibility: It can be seamlessly integrated into ABB Bailey Symphony Plus, INFI 90 and other DCS systems, communicating with controllers at high speed through the system bus, and supporting online configuration and parameter setting (such as adjustment of output pulse width and delay time). It is also compatible with third-party safety instrumented systems (SIS) and follows standard protocols such as Modbus, simplifying cross-brand system integration.

Typical Application Scenarios

Emergency Shutdown System for Petrochemical Plants: In the styrene production unit of a chemical plant, SPDSO14 is installed in the control cabinet of the safe area, receiving emergency shutdown commands from the SIS system and transmitting digital signals to explosion-proof solenoid valves (controlling raw material feed valves) and explosion-proof audible and visual alarms in hazardous areas. When the reactor pressure is detected to exceed the standard, the SIS system closes the feed valve through the module's output signal and triggers the alarm at the same time. The module's intrinsic safety design ensures safe execution of commands in flammable and explosive environments, avoiding the expansion of accidents.
Valve Control in Natural Gas Processing Plants: In the desulfurization unit of a natural gas processing plant, this module receives control commands from PLC and outputs signals to explosion-proof solenoid valves in hazardous areas to control the opening and closing of liquid inlet and outlet valves of the desulfurization tower. By limiting output energy, it prevents the energy carried by control signals from igniting natural gas, and at the same time accurately controls the valve switching state to ensure the stable supply of desulfurizing agents and the efficiency of natural gas desulfurization.
Equipment Control in Pharmaceutical Explosion-Proof Workshops: In the explosion-proof sterile workshop of a pharmaceutical factory, SPDSO14 receives commands from the controller to control explosion-proof indicator lights (running/stopping status indication) and explosion-proof small fans (local ventilation) in hazardous areas. The intrinsic safety characteristics of the module match the explosion-proof level of the workshop, avoiding potential safety hazards in environments containing organic solvent vapors, and ensuring the reliable operation of indicator lights and fans to guarantee the safety of the production environment.
Interlocking System for Coal Chemical Gasifiers: In the interlocking control system of coal chemical gasifiers, this module receives interlocking commands from DCS and outputs signals to explosion-proof relays in hazardous areas to control the emergency material cutoff valves and cooling water valves of the gasifier. When the gasifier temperature exceeds the standard, the interlocking command triggers the relay action through the module, quickly cutting off the raw material supply and opening the cooling water valve. The module's fast response (≤5ms) buys time for accident handling and reduces the risk of equipment damage.
