Home > Electrical & Electronics > Electrical Control System > HIMA F3 DIO 8/8 01 Digital Input/output Module

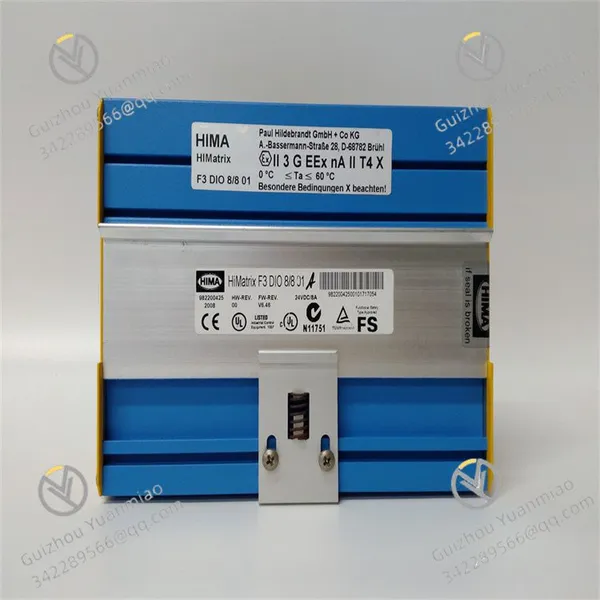

HIMA F3 DIO 8/8 01 Digital Input/output Module

HIMA F3 DIO 8/8 01 Digital Input/output Module thumbnail-3

HIMA F3 DIO 8/8 01 Digital Input/output Module photo-1

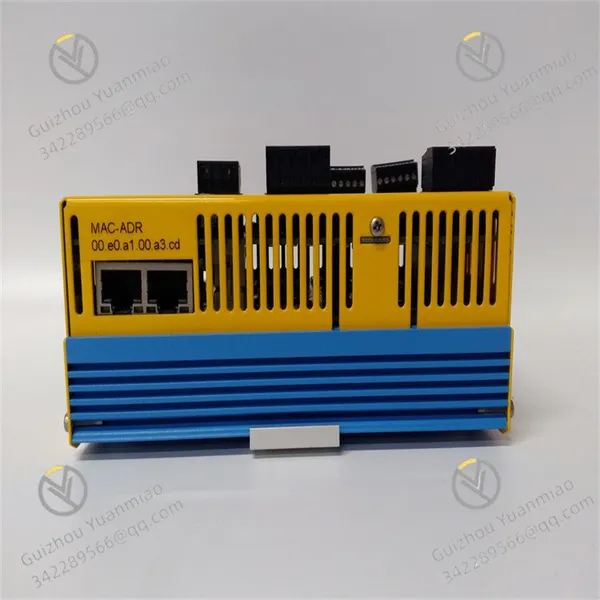

HIMA F3 DIO 8/8 01 Digital Input/output Module photo-2

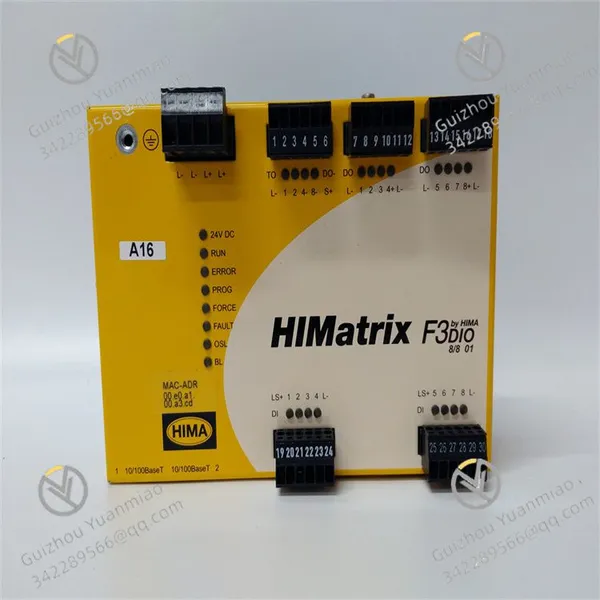

HIMA F3 DIO 8/8 01 Digital Input/output Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

HIMA F3 DIO 8/8 01 is a digital input/output module launched by HIMA, mainly used in industrial automation and safety control systems. Here are its detailed information:

Basic Parameters:

Input Voltage: AC 100V to 240V, 50/60Hz.
Output Voltage: DC 24V.
Operating Temperature Range: -40°C to +70°C.
Storage Temperature Range: -40°C to +70°C.
Protection Class: IP20.
Dimensions: 90mm x 30mm x 25mm.
Weight: Approximately 100g.

Channel Configuration: It has 8 digital input channels, 8 digital DO+ output channels (L- reference pole), 2 digital DO- output channels (S+ reference pole), and 2 pulse output channels.
Electrical Characteristics: The operating voltage range is 20.4V-28.8V DC, with a peak power consumption of 8W. It is equipped with a built-in overvoltage/reverse connection protection circuit and can withstand transient pulse voltages of ±2kV. The output load capacity is 500mA per channel, which can drive industrial loads such as relays and solenoid valves.

Communication Capability: It supports mainstream protocols such as HART, Modbus RTU, and PROFIBUS DP, and is compatible with mainstream DCS systems such as Siemens S7-300/400 and Yokogawa CENTUM VP.
Safety Level: It complies with IEC 61508 SIL 3 certification and is suitable for critical safety functions such as Emergency Shutdown Systems (ESD) and Fire & Gas Detection Systems (F&G).
Functional Features:

Redundant Design: Supports dual-channel hot standby redundancy. When the main channel fails, the standby channel can switch seamlessly within 10ms.
Channel Diagnostics: Real-time display of channel status through LED indicators and HMI interface, supporting the "channel bypass" function.
Signal Monitoring: Built-in ADC sampling circuit, which can monitor input signal voltage fluctuations in real-time and has a three-level alarm mechanism.

Installation Method: It can be installed on a mounting base or in enclosed enclosures such as control stations, junction boxes, and control cabinets.
Programming Software: The corresponding programming software is XPSMFWIN, which can run on Microsoft Windows 2000/XP systems.
Application Fields: It is widely used in petrochemical, power systems, railway systems, manufacturing, environmental water treatment and other fields, for realizing functions such as safety interlocking, emergency shutdown, and process monitoring.
