VMIVME-3122 GE VMEbus Analog Input/Output Board

VMIVME-3122 GE VMEbus Analog Input/Output Board photo-1

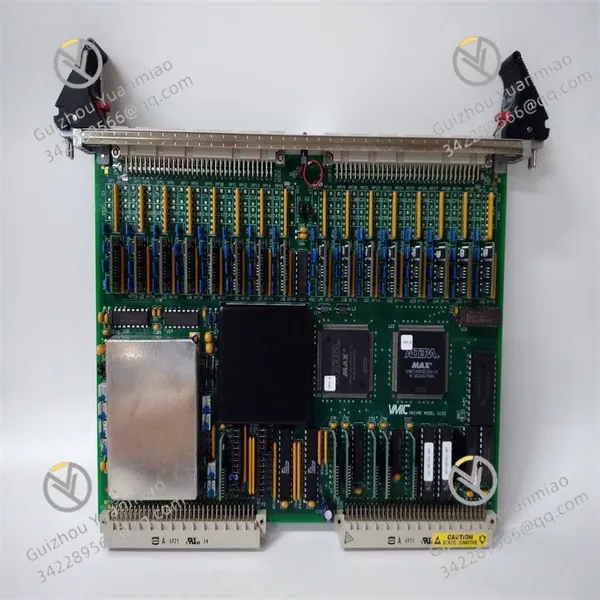

VMIVME-3122 GE VMEbus Analog Input/Output Board photo-2
VMIVME-3122 GE VMEbus Analog Input/Output Board photo-3
VMIVME-3122 GE VMEbus Analog Input/Output Board photo-4

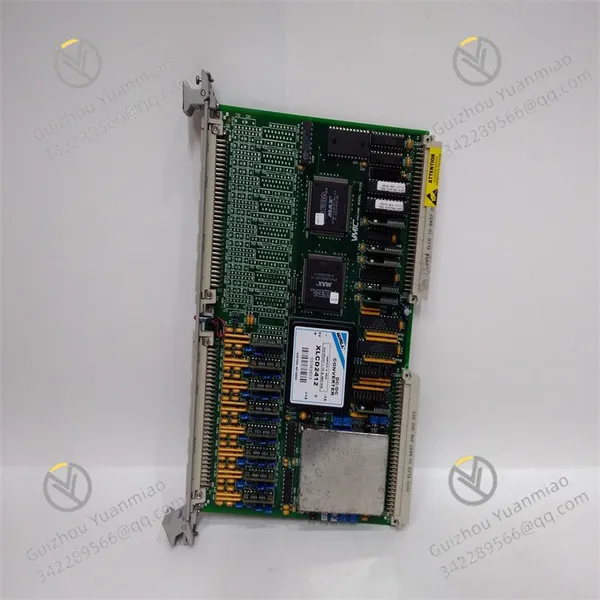

VMIVME-3122 GE VMEbus Analog Input/Output Board photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.





The VMIVME-3122 is a high-performance VMEbus analog input/output board manufactured by GE, belonging to the Megamodule series, and is commonly used in industrial automation, test and measurement, and other fields. Here are its detailed specifications:

  • Number of Channels: Optional 16, 32, or 64 differential or single-ended analog input channels.

  • Resolution: 16 bits.

  • Sampling Rate: With high-performance options, the optional scanning rate ranges from 381Hz to 100kHz; with standard performance options, the optional scanning rate ranges from 381Hz to 50kHz.

    VMIVME-3122 (3)



    • Input/Output Range: The voltage range of the A/D converter can be selected via jumpers as ±2.5V, ±5V, ±10V, 0 to +5V, and 0 to +10V.

    • Interface Type: VMEbus.

    • Power Supply: +5V.

    • Operating Temperature: -40°C to +85°C.

    • Functional Features: Equipped with program-controlled gain, with selectable gains of x1 or x10; supports multiple operating modes such as automatic scanning, data bursting, and external synchronization; has a 16 to 1024-word dual-port data buffer; can operate in short I/O (A16), standard (A24), or extended (A32) data spaces; features an optional low-pass input filter; includes an interval timer, bus interrupter, etc., which can simplify the monitoring of data in the dual-port data buffer.



    VMIVME-3122-210 (3)
