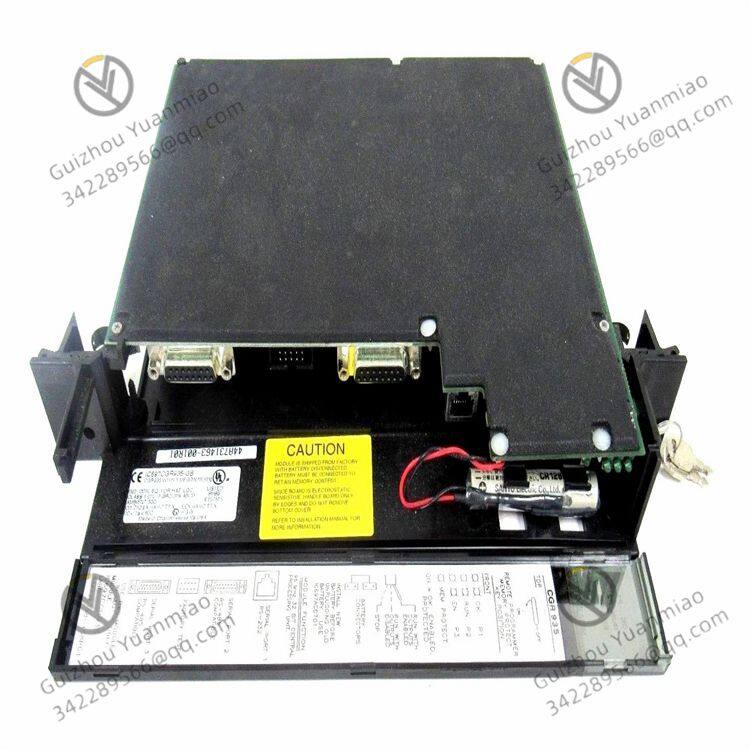

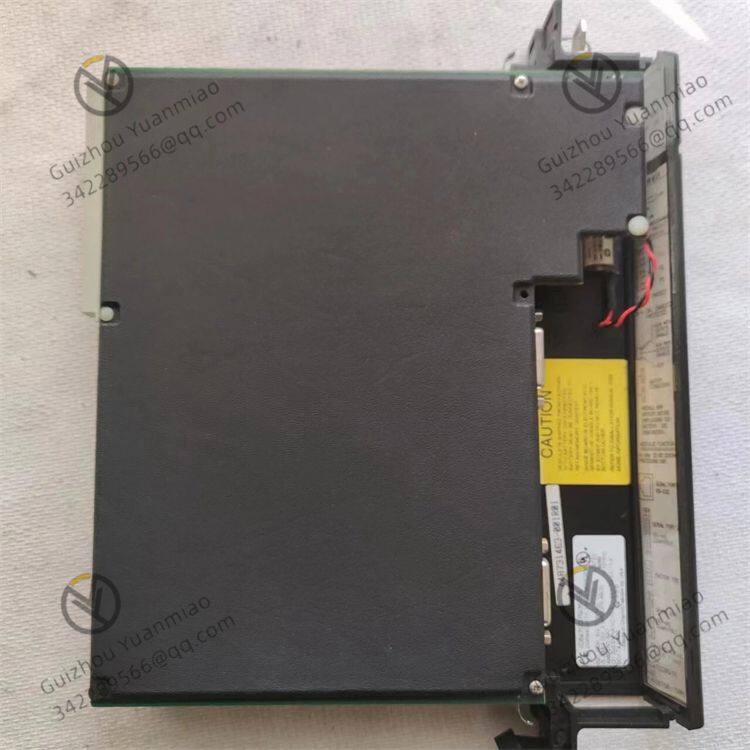

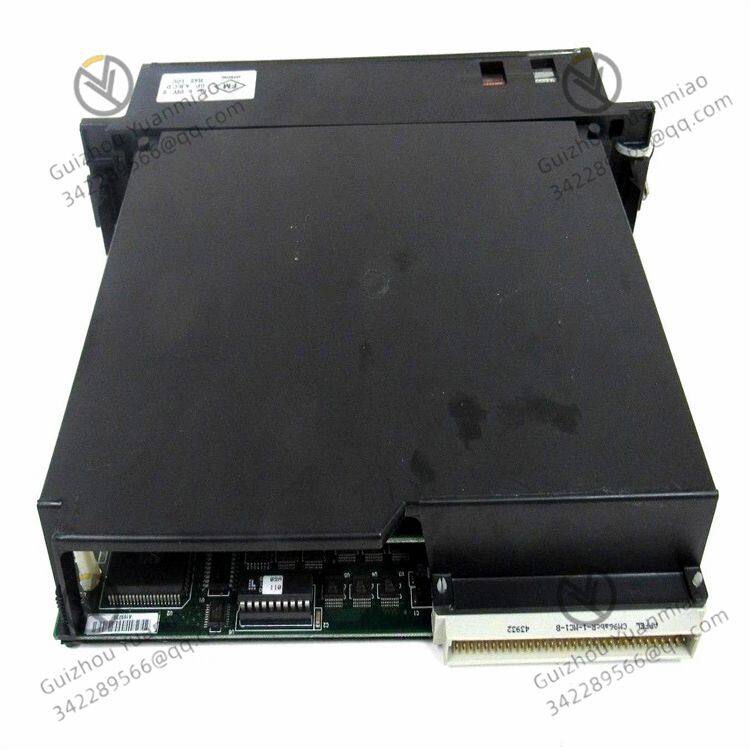

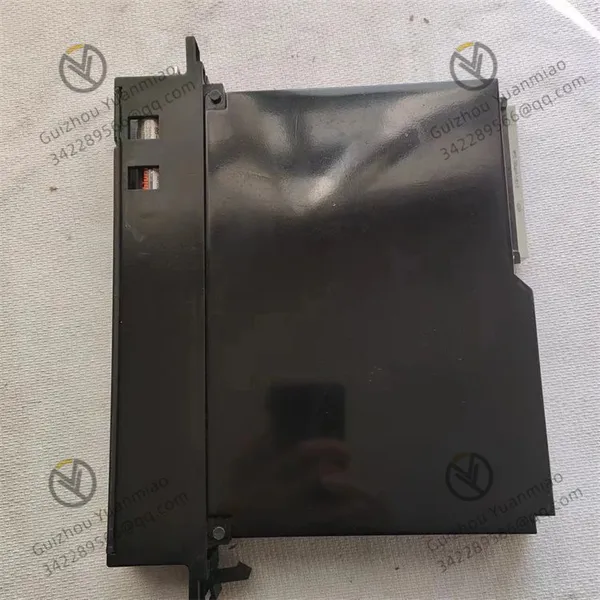

GE IC697CGR935 High-performance CPU Module

Frequency: 166MHz PowerPC processor, supporting 32-bit floating-point operations. The instruction execution speed reaches 1.2μs per Boolean, enabling rapid processing of complex logic and algorithms.

Memory: 2MB user memory (expandable to 8MB), 512KB battery-backed RAM (supporting 6 months of data retention), meeting the needs of large-scale program and data storage.

Hot Standby Support: Supports dual-CPU hot standby redundancy (requires redundant software and racks). Real-time data mirroring between the active and standby CPUs is achieved through a high-speed synchronous bus, with a switching time of <10ms, ensuring uninterrupted transition in case of faults.

Dual-Bus Architecture: Built-in dual VME bus interfaces, with active and standby links operating independently, improving communication reliability.

Local I/O: A single rack supports up to 16 I/O modules. Remote racks can be connected via bus expansion modules (such as IC697BEM733/741), with the total number of I/O points reaching thousands.

High-Speed Processing: Supports special function modules such as high-speed counters and motion control, meeting the requirements of precision control.

Built-in Ports:

Expansion Options: Interfaces such as Profibus, DeviceNet, and fiber optic communication can be added through plug-in modules to meet diverse networking needs.

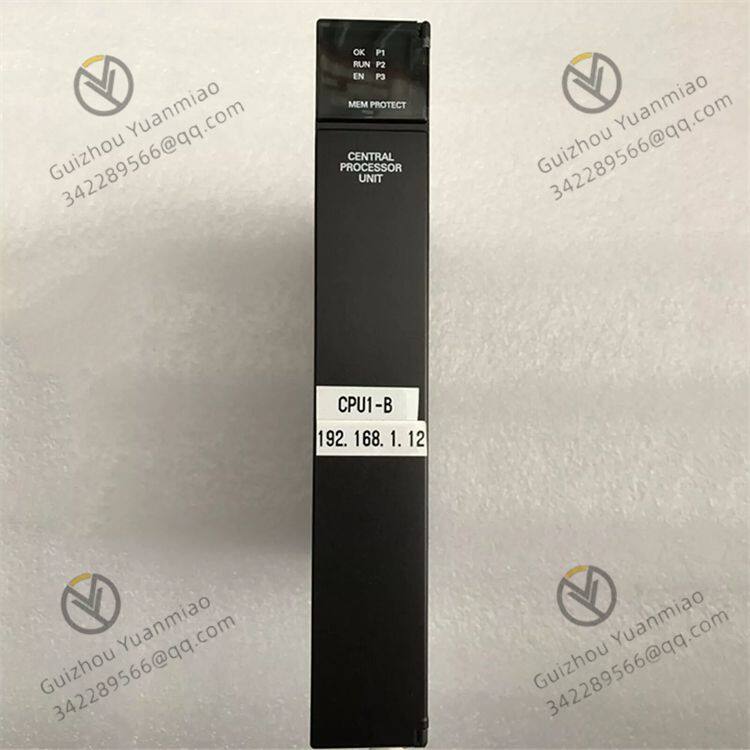

LED Status Indicators: Provide indicators for power, operation, communication, and faults, real-time feedback on module status.

Self-Diagnostic Function: Monitors the status of the CPU, memory, and communication links. In case of faults, it automatically records event logs and triggers alarms.

Hot-Swap Support: Allows live replacement of modules, reducing system downtime.

Temperature Range: Operating temperature from -20°C to 60°C; storage temperature from -40°C to 85°C.

Anti-Interference: Complies with industrial-grade EMC standards, resistant to vibration (5-2kHz, 1g) and shock (30g), adapting to harsh environments.

Higher Performance: The PowerPC processor provides twice the computing speed of the CGR772, suitable for large data processing and complex algorithms.

Rich Communication: Built-in Ethernet port and multiple serial ports can meet most networking needs without additional expansion.

Large-Capacity Memory: 2MB user memory supports more complex control programs and data storage.

Redundant Systems: Combine with IC697BEM741 redundant bus modules and dual power supplies to build a complete hot standby architecture.

Programming Software: Use GE Fanuc's Proficy Machine Edition or VersaPro for programming, supporting multiple languages such as ladder diagrams and function block diagrams.

Communication Optimization: Connect to HMI/SCADA systems through Ethernet ports, and use RS-485 ports to connect field devices to achieve hierarchical communication.
