IC698CPE020-JX GE High Performance Processor Module

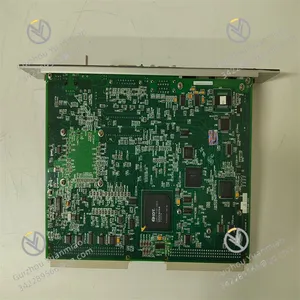

IC698CPE020-JX GE High Performance Processor Module thumbnail-1
IC698CPE020-JX GE High Performance Processor Module thumbnail-2
IC698CPE020-JX GE High Performance Processor Module thumbnail-3
IC698CPE020-JX GE High Performance Processor Module photo-1
IC698CPE020-JX GE High Performance Processor Module photo-2

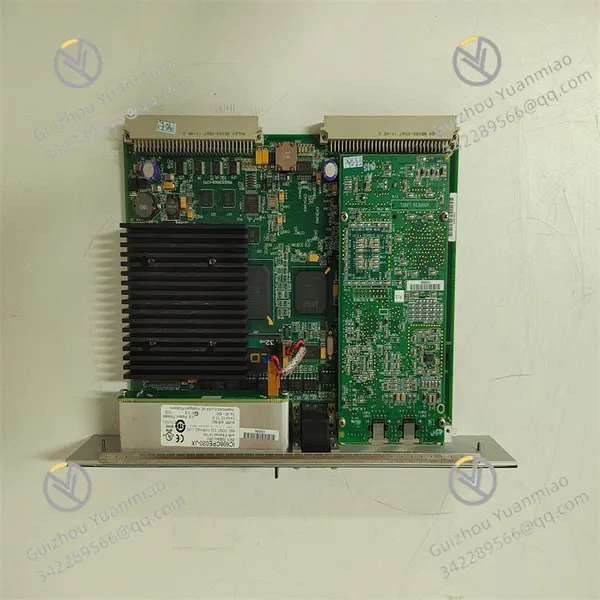

IC698CPE020-JX GE High Performance Processor Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.





The IC698CPE020-JX is a high-performance processor module launched by GE Fanuc (now Emerson), belonging to the RX3i series of Programmable Logic Controllers (PLCs), specifically designed for industrial automation and process control applications. Here is its detailed information:
Basic Parameters
  • Processor:

    • Type: Intel® Pentium® M processor

    • Frequency: 800MHz

    • Cache: 1MB L2 cache

  • Memory Configuration:

    • System Memory: 256MB SDRAM (expandable to 512MB)

    • Program Memory: 128MB flash memory (approximately 100MB available to users)

    • Data Memory: 128MB flash memory (approximately 100MB available to users)

  • Power Requirements:

    • Input Voltage: 24VDC (range: 18-32VDC)

    • Power Consumption: Maximum 15W

  • Physical Characteristics:

    • Dimensions: 132mm (height) × 114mm (width) × 132mm (depth)

    • Weight: Approximately 1.1kg

    • Installation Method: Standard RX3i rack mounting


IC698CPE020-JX (3)



Communication Interfaces
  • Built-in Ethernet:

    • 2 RJ45 ports (10/100Mbps auto-negotiation)

    • Supports protocols such as Ethernet/IP, Modbus TCP, DH+

    • Supports dual Ethernet redundancy configuration

  • Serial Ports:

    • 1 RS-232 port (for programming and debugging)

    • 1 configurable RS-232/RS-485 port (selected via jumpers)

  • Other Interfaces:

    • 1 USB 2.0 port (for program upload/download)

    • Supports extended communication modules (e.g., Profibus, DeviceNet, etc.)

Functional Features
  • Real-time Performance:

    • Supports multi-tasking with configurable task priorities

    • Typical I/O scan cycle

  • Redundancy Support:

    • Supports hot standby redundancy configuration (requires IC698CPE020-JX redundancy module)

    • Automatic switchover in case of failure, with switchover time


 IC698CPE020-JX (1)






Related products:

IC697CPX928

F650BFGF1G1HIE

IS220UCSAH1A

IS420UCSBH4A

IS430SNUAH1A

SR489-P5-HI-A20

04220GL21204A

151X1235DB15SA01EX2100





Product Tags: IC698CPE020-JX , High performance processor module
