Home > Electrical & Electronics > Electrical Control System > ABB 5SHX0860H0001 Gate Turn-off Thyristor Module

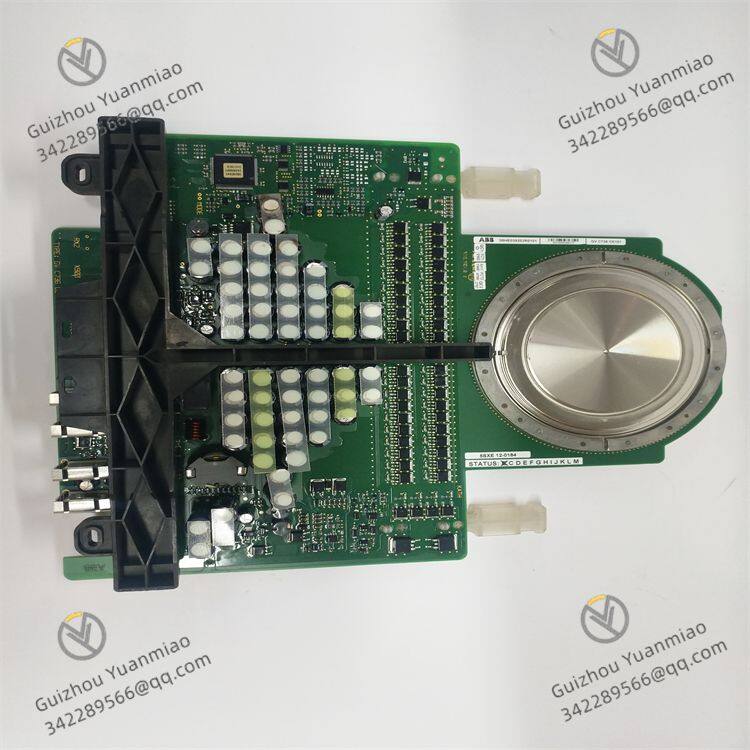

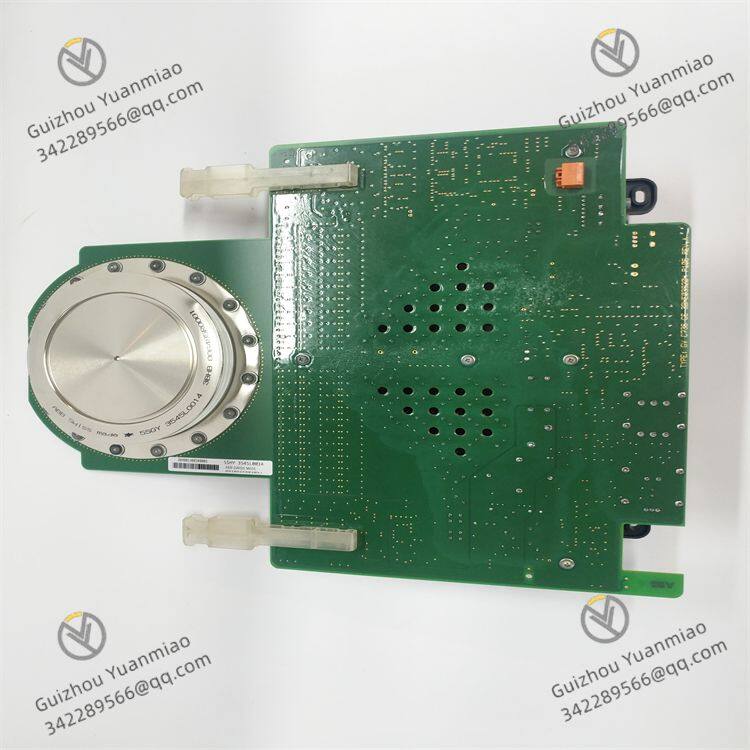

ABB 5SHX0860H0001 Gate Turn-off Thyristor Module

ABB 5SHX0860H0001 Gate Turn-off Thyristor Module thumbnail-2

ABB 5SHX0860H0001 Gate Turn-off Thyristor Module photo-1

ABB 5SHX0860H0001 Gate Turn-off Thyristor Module photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Rated Voltage 6500V

Current 800A

Operating Temperature -40℃ to +85℃

Overview

ABB 5SHX0860H0001 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module, belonging to the ABB 5SHX series, and is an important achievement of ABB's technological innovation in the field of power electronics. It integrates the advantages of thyristors in withstanding high voltage and large current with the fast switching characteristics of transistors, and is specially designed for medium-high voltage, high-power power electronic application scenarios. In the industrial field, it is often used in medium-high voltage frequency converters to achieve precise speed regulation of large motors and improve industrial production efficiency; in power systems, it can be applied to equipment such as static var compensators to help improve the power quality and stability of the power grid; it also plays a key role in power conversion systems in fields such as rail transit, providing strong support for the efficient and stable operation of related industries.

Working Principle

The module integrates a GTO chip, an anti-parallel diode, and a gate drive circuit, and works with an external gate driver through a low-inductance connection. In the on-state, its working mode is similar to that of a thyristor. It realizes efficient transmission of large currents through an internal positive feedback mechanism, featuring low on-state voltage drop and strong current-carrying capacity, which can effectively reduce energy loss during the conduction process. When entering the turn-off phase, the pn junction between the IGCT gate and cathode is reverse-biased in advance, and the device switches to the transistor working mode: by turning on the MOSFET switch in series with the cathode, the P-base n-emitter is reverse-biased, quickly stopping the cathode injection current, and forcing the anode current to be converted into the gate current within 1μs. At this time, the GTO is transformed into a PNP transistor with a non-contact base region, eliminating the cathode emitter shrinkage effect, and the maximum turn-off current is far exceeding the rated current of traditional GTOs. Since the IGCT turns off when the gain is close to 1, the protective snubber circuit can be omitted, simplifying the system design while improving operational reliability.

Technical Parameters

Rated Voltage: Usually 6500V, with excellent high-voltage withstand capacity, which can well adapt to the operation requirements of medium-high voltage power systems and work stably in high-voltage environments.
Rated Current: Up to 800A, with strong current-carrying capacity, which can meet the operation needs of medium and high-power equipment, and is suitable for the requirements of current transmission and control in scenarios such as medium and large industrial motor drives and power conversion equipment.
Peak Forward Current: Approximately 1600A, which can cope with instantaneous high-current impacts, ensure the safe and stable operation of the module under extreme working conditions, and avoid equipment damage caused by current impacts.
On-State Voltage Drop: Generally around 2.3V, the low on-state voltage drop can effectively reduce power loss, improve energy utilization efficiency, and reduce energy consumption costs for users during long-term operation.
Gate Trigger Current: About 0.4A, and only a small trigger current is needed to realize the on-control of the module, with sensitive response, which helps to improve the accuracy of the control system.
Operating Temperature Range: -40℃ to +85℃; storage temperature range: -40℃ to +125℃. The wide temperature adaptation range enables it to work normally under different ambient temperatures, and it can perform stably in both high-temperature industrial workshops and cold outdoor power facilities.
Protection Rating: Commonly IP20, which can provide a certain degree of protection for the module, effectively prevent the intrusion of foreign objects, reduce the probability of faults caused by foreign object interference, and extend the service life of the equipment.
Cooling Method: Supports various methods such as natural cooling, air cooling, and water cooling. Users can flexibly choose according to the heat dissipation needs and cost considerations of the actual application scenario to ensure that the module maintains a good heat dissipation state during operation and maintains stable performance.
Overall Dimensions: Approximately 180mm in length, 120mm in width, and 100mm in height. The compact structural design allows it to be conveniently installed and arranged inside equipment with limited space.

Functional Features

Efficient Switching Performance: Relying on advanced IGCT technology, the module has extremely fast switching speed and can accurately complete on and off operations within microseconds. This feature makes it perform excellently in high-frequency application scenarios and can greatly improve power conversion efficiency. For example, in variable frequency speed regulation systems with extremely high response speed requirements, it can quickly adjust the output frequency to achieve stable and efficient speed regulation of motors, improving the operation accuracy and efficiency of production equipment.
High Voltage and Large Current Handling Capacity: It can withstand a high voltage of 6500V and a large current of 800A, with strong high-voltage and large-current carrying and control capabilities, and can easily cope with complex power environments of medium-high voltage and medium-high power. In key fields such as medium-high voltage frequency converters and power conversion equipment, it can operate stably, ensuring reliable power supply for the system and normal operation of equipment, and providing a solid power control foundation for industrial production and power transmission.
Low Energy Consumption Characteristics: The low voltage drop during conduction significantly reduces power loss and improves energy utilization efficiency. During long-term operation, it can save a lot of electricity costs for users, help enterprises achieve energy conservation and emission reduction goals, and conform to the concept of green industrial development.
High Reliability and Stability: Made of high-quality materials and advanced packaging technology, and subject to strict quality inspection, the module has a sturdy and durable structure and excellent anti-vibration and anti-impact performance. It can still operate stably for a long time in harsh industrial environments such as high temperature, high humidity, and strong electromagnetic interference, reducing equipment failure rates and maintenance costs, and improving the overall availability of the system.
Good Compatibility and Integratability: It follows industry-universal communication protocols and interface standards and can be well compatible with various power system equipment and different circuit topologies. Whether it is a traditional industrial power system, or emerging smart grids and distributed energy access systems, it can be easily integrated and work collaboratively with other equipment, providing convenience for system upgrading and expansion, and having strong versatility and flexibility.
