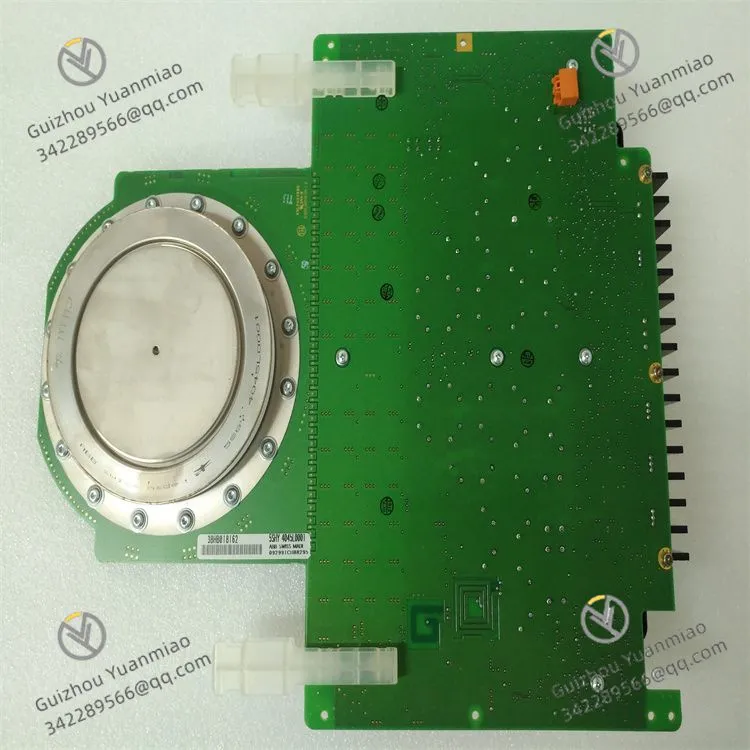

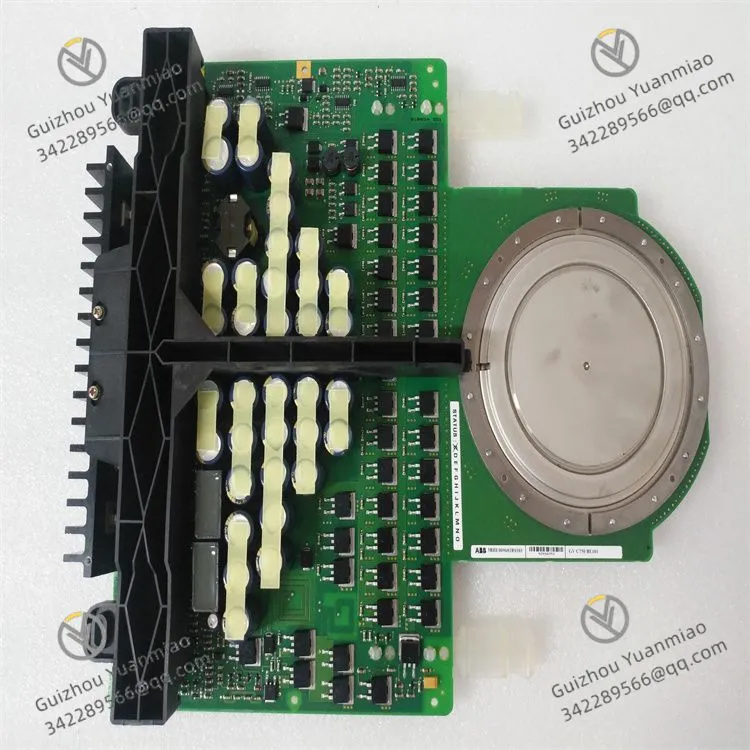

ABB IGCT Module 3BHL000390P0104

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Rated Voltage 6500V

Current 1000A

Operating Temperature -40℃ to +85℃

Overview

ABB 3BHL000390P0104 is an advanced Integrated Gate-Commutated Thyristor (IGCT) module, belonging to the ABB 5SHX series. This series of products demonstrates excellent performance and innovation in the field of power electronics, and 3BHL000390P0104, with its unique design, plays a key role in medium-high voltage and high-power application scenarios. It combines the advantages of thyristors in withstanding high voltage and large current with the fast switching characteristics of transistors, and is specially built to meet the needs of efficient and reliable power conversion and control in industries, power systems and other fields. In industrial production, it is often used to drive large motors to achieve precise speed regulation and ensure the efficient operation of production equipment; in power systems, it is crucial for improving grid stability and optimizing power quality, and is often used in key links such as high-voltage direct current transmission and reactive power compensation; in fields such as rail transit and new energy power generation, it is also a core component for achieving stable power supply and conversion, providing solid power technical support for the development of related industries.

Technical Parameters

Rated Voltage: Usually 6500V, with excellent high-voltage withstand capacity, which can well adapt to the operation requirements of medium-high voltage power systems, work stably in high-voltage environments, and provide reliable voltage support for various high-voltage power applications.
Rated Current: Up to 1000A, with strong current-carrying capacity, which can meet the strict requirements for large current transmission and control in scenarios such as large industrial equipment and high-voltage power transmission, ensuring the stability of equipment under high-power operation.
Peak Forward Current: Approximately 2000A, which can effectively cope with instantaneous high-current impacts, ensure the safe and stable operation of the module under extreme working conditions, avoid equipment damage caused by current impacts, and greatly improve the reliability of system operation.
On-State Voltage Drop: Generally around 2.4V, the low on-state voltage drop effectively reduces power loss and significantly improves energy utilization efficiency. During long-term operation, it can save a lot of electricity costs for users, which is in line with the development concept of energy conservation and emission reduction.
Gate Trigger Current: About 0.5A, only a small trigger current is needed to realize the conduction control of the module, with sensitive response, which helps to improve the accuracy of the control system and achieve precise control of equipment.
Operating Temperature Range: -40℃ to +85℃; storage temperature range: -40℃ to +125℃. The wide temperature adaptation range enables it to work normally under different ambient temperatures, and it can perform stably in both high-temperature industrial workshops and cold outdoor power facilities.
Protection Rating: Commonly IP20, which can provide a certain degree of protection for the module, effectively prevent the intrusion of foreign objects, reduce the probability of faults caused by foreign object interference, and extend the service life of the equipment.
Cooling Method: Supports multiple cooling methods such as natural cooling, air cooling, and water cooling. Users can flexibly choose a suitable cooling method according to the heat dissipation requirements and cost considerations of the actual application scenario to ensure that the module maintains a good heat dissipation state during operation and maintains stable performance.
Overall Dimensions: Approximately 200mm in length, 130mm in width, and 110mm in height. The compact structural design facilitates installation and layout inside equipment with limited space, making it convenient for system integrators to build systems and install equipment.

Functional Features

Excellent Switching Performance: Based on advanced IGCT technology, 3BHL000390P0104 has an extremely fast switching speed and can accurately complete on and off operations within microseconds. In high-frequency application scenarios, such as variable frequency speed regulation systems driven by high-speed motors, it can quickly adjust the output frequency to achieve stable and efficient speed regulation of the motor, significantly improving the operation accuracy and efficiency of the equipment, and meeting the stringent requirements of modern industry for high-speed and precise control.
Strong High-Voltage and Large-Current Capacity: It can withstand a high voltage of 6500V and a large current of 1000A, with strong high-voltage and large-current carrying and control capabilities, and can easily cope with complex high-voltage and high-power electrical environments. In key fields such as high-voltage direct current transmission and large industrial motor drives, it can operate stably, ensuring reliable power supply for the system and normal operation of equipment, and providing a solid power control guarantee for industrial production and power transmission.
Efficient and Energy-Saving Characteristics: The low voltage drop during conduction effectively reduces power loss and improves energy utilization efficiency. During long-term operation, it can save a lot of electricity for users, help enterprises achieve energy conservation and emission reduction goals, conform to the concept of green industrial development, reduce enterprise operating costs, and promote sustainable development.
High Reliability and Stability: Made of high-quality materials and advanced packaging technology, and subject to strict quality inspection, the module has a sturdy and durable structure and excellent anti-vibration and anti-impact performance. In harsh industrial environments, such as high temperature, high humidity, and strong electromagnetic interference, it can still operate stably for a long time, reducing equipment failure rates, lowering maintenance costs, improving the overall availability of the system, and providing users with reliable operation guarantees.
Good Compatibility and Expandability: It follows industry-universal communication protocols and interface standards and can be well compatible with various power system equipment and different circuit topologies. Whether it is a traditional power system, or emerging smart grids and distributed energy access systems, it can be easily integrated and work collaboratively with other equipment, providing convenience for system upgrading and expansion, with strong versatility and flexibility, facilitating users to build and upgrade systems according to actual needs.
