Home > Electrical & Electronics > Electrical Control System > ABB IGCT 5SGY3545L0020 Commutated Thyristor

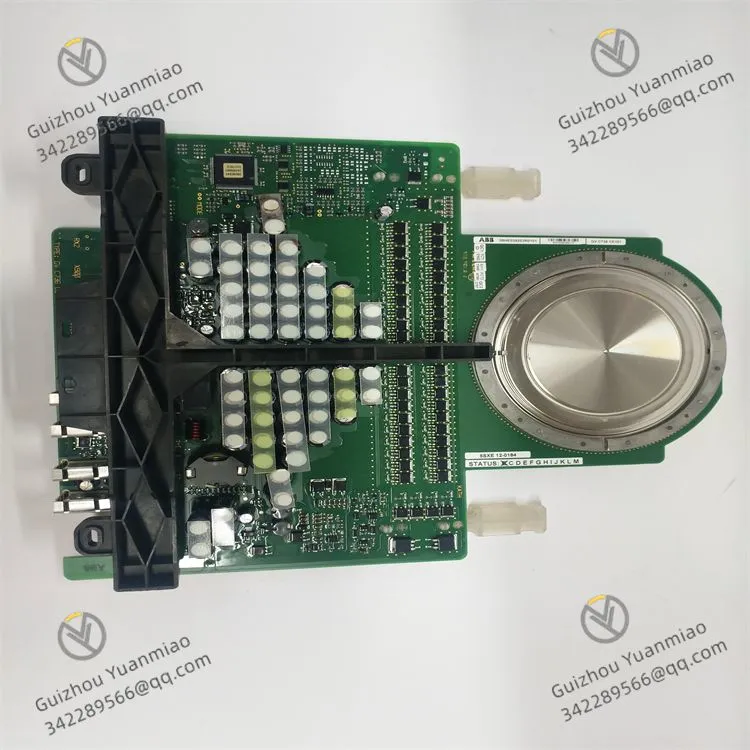

ABB IGCT 5SGY3545L0020 Commutated Thyristor

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Voltage 3500V

Current 1000A

Operating Temperature -50°C to +150°C

Overview

ABB 5SGY3545L0020 belongs to the category of Integrated Gate-Commutated Thyristor (IGCT) modules. It is a high-performance power semiconductor product developed by ABB based on its profound technical heritage and continuous innovation capabilities. This module skillfully integrates advanced GTO chips, anti-parallel diodes, and gate drive circuits, demonstrating excellent electrical performance. Specifically designed to cope with complex and harsh medium-high voltage, high-power power application scenarios, it can operate stably in various harsh power environments and is a key component ensuring the efficient and reliable operation of power systems. In the industrial field, it is commonly used in medium-high voltage frequency converters to help motors achieve precise speed regulation and efficient operation; in static var compensators, it optimizes and adjusts the reactive power of the power grid to improve power quality; in high-voltage direct current transmission systems, it undertakes key power conversion tasks to ensure stable and efficient transmission of electrical energy, strongly promoting the development of industrial production towards intelligence and high efficiency.

Working Principle

In the forward blocking state, the IGCT of ABB 5SGY3545L0020 withstands a forward anode voltage. At this time, no trigger signal is input to the gate, and the thyristor is in the off state with only an extremely weak leakage current. When a suitable forward trigger pulse is applied to the gate, the gate current is quickly injected, causing the PNP and NPN transistors inside the thyristor to interact and enter a positive feedback state. The device turns on rapidly, and current flows from the anode to the cathode. After turning on, as long as the anode current remains above the holding current, the thyristor will stay on even if the gate trigger signal is removed. When the anode current drops below the holding current or a reverse anode voltage is applied, the internal conductive mechanism of the thyristor changes and returns to the blocking state. Through precise regulation of the gate trigger signal, accurate control of the on-off and magnitude of the current in the circuit is achieved, meeting the diverse operational needs of different power systems.

Functional Features

Efficient Switching Performance: With the advanced gate commutation technology of IGCT, ABB 5SGY3545L0020 has an extremely fast switching speed and can complete current on-off operations in an extremely short time. In scenarios with extremely high response speed requirements such as frequent start-stop of motors and rapid load changes, it can adjust the current state in a timely and precise manner, strongly ensuring the timeliness and accuracy of power supply, and significantly improving the dynamic response capability and operational stability of the power system.
High Reliability and Stability: It is produced using high-quality semiconductor materials, advanced manufacturing processes, and high-standard quality control systems. It can operate stably for a long time in harsh industrial environments such as high temperature, high humidity, and strong electromagnetic interference. This not only greatly reduces the incidence of equipment failures, decreases the number of maintenance operations and costs, but also provides reliable guarantee for the continuous production of enterprises and effectively reduces operational risks.
High Energy Conversion Efficiency: Through in-depth optimization of internal structure and electrical design, energy loss during power conversion is significantly reduced. For example, when applied in medium-high voltage frequency converters, it can efficiently convert input electrical energy into variable-frequency electrical energy required by motors, greatly improving energy utilization efficiency, helping enterprises save a lot of energy consumption costs, conforming to the development concept of energy conservation and environmental protection, and assisting enterprises in achieving sustainable development goals.
Strong Adaptability: It has excellent compatibility and can work well with various power system equipment and different circuit topologies. Whether it is traditional industrial power drive systems or emerging complex new power architectures such as smart grids and distributed energy access, it can be smoothly integrated and work in coordination with other equipment, creating favorable conditions for building a diversified and intelligent modern power system.
