ABB IGCT Module 5SGY3545L0008

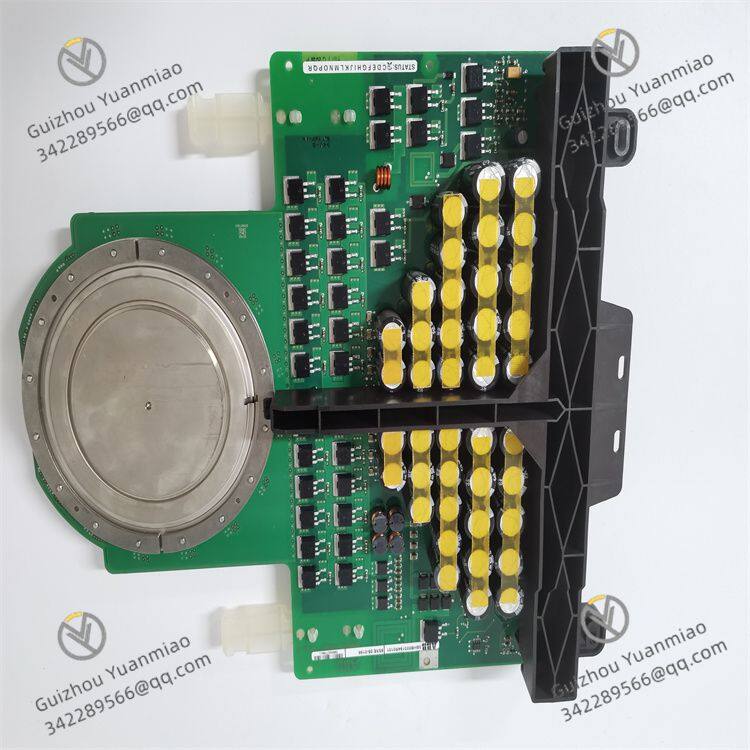

ABB 5SGY3545L0008 is an Integrated Gate-Commutated Thyristor (IGCT) module, demonstrating ABB's profound technical heritage and innovative capabilities. This module skillfully integrates advanced GTO chips, anti-parallel diodes, and gate drive circuits, exhibiting excellent electrical performance. Meticulously designed to handle complex medium-high voltage and high-power power application scenarios, it can operate stably in various harsh power environments and is a core component ensuring the efficient and reliable operation of power systems. In industrial applications, it is commonly used in medium-high voltage frequency converters to help motors achieve precise speed regulation and efficient operation; in static var compensators, it optimizes and adjusts the reactive power of the power grid to improve power quality; in high-voltage direct current transmission systems, it undertakes key power conversion tasks to ensure stable and efficient transmission of electrical energy, strongly promoting the development of industrial production towards intelligence and high efficiency.

•


• Voltage Rating: The reverse repetitive peak voltage (VDRM) can reach 4500V, which can perfectly adapt to the high voltage requirements of medium-high voltage power systems, providing a solid foundation for power conversion and control in high-voltage scenarios such as industrial power grids and large-scale power-driven equipment.

• Current Handling Capacity: The collector current can reach 3500A (the actual value is subject to the official manual), with strong large-current carrying capacity, which can fully meet the high current demand of high-power equipment during operation and ensure continuous and stable power supply even under high-load conditions.

• Operating Temperature Range: Generally in the range of -40°C to +85°C. Compared with common modules, its lower and upper operating temperature limits are wider, enabling it to adapt to a broader range of regional environments and temperature changes in complex industrial environments. It can work normally even in extreme temperatures, greatly expanding the application scenarios.

• Switching Frequency: Can reach a high level (e.g., 500Hz, depending on the actual design of the product). The fast switching speed makes it perform excellently in scenarios with extremely high response speed requirements such as rapid load changes, being able to quickly adjust the current state and significantly improve the dynamic performance and operational stability of the power system.

• On-state Voltage: The typical value is approximately 1.5V (specific values refer to the product manual). The low voltage during conduction means less voltage loss in the power transmission link, which helps improve the efficiency of power transmission and conversion, reduce unnecessary energy waste, and enhance the overall energy efficiency of the system.

• Turn-off Time: Relatively short (e.g., 5μs, depending on the actual situation of the product). It can quickly cut off the current when needed, realizing precise control of the circuit and reducing potential safety risks and equipment damage caused by delayed current turn-off.

•


• Efficient Switching Performance: With the advanced gate commutation technology of IGCT, ABB 5SGY3545L0008 has an extremely fast switching speed and can complete current on-off operations in an extremely short time. In scenarios with extremely strict response speed requirements such as frequent start-stop of motors and rapid load changes, it can adjust the current state in a timely and precise manner, strongly ensuring the timeliness and accuracy of power supply, and significantly improving the dynamic response capability and operational stability of the power system.

• High Reliability and Stability: It is produced using high-quality semiconductor materials, advanced manufacturing processes, and high-standard quality control systems. It can operate stably for a long time in harsh industrial environments such as high temperature, high humidity, and strong electromagnetic interference. This not only greatly reduces the incidence of equipment failures, reduces the number of maintenance operations and costs, but also provides reliable guarantee for the continuous production of enterprises and effectively reduces operational risks.

• High Energy Conversion Efficiency: Through in-depth optimization of internal structure and electrical design, energy loss during power conversion is significantly reduced. For example, when applied in medium-high voltage frequency converters, it can efficiently convert input electrical energy into variable-frequency electrical energy required by motors, greatly improving energy utilization efficiency, helping enterprises save a lot of energy consumption costs, conforming to the development concept of energy conservation and environmental protection, and assisting enterprises in achieving sustainable development goals.

• Strong Adaptability: It has excellent compatibility and can work well with various power system equipment and different circuit topologies. Whether it is traditional industrial power drive systems or emerging complex new power architectures such as smart grids and distributed energy access, it can be smoothly integrated and work in coordination with other equipment, creating favorable conditions for building a diversified and intelligent modern power system.
