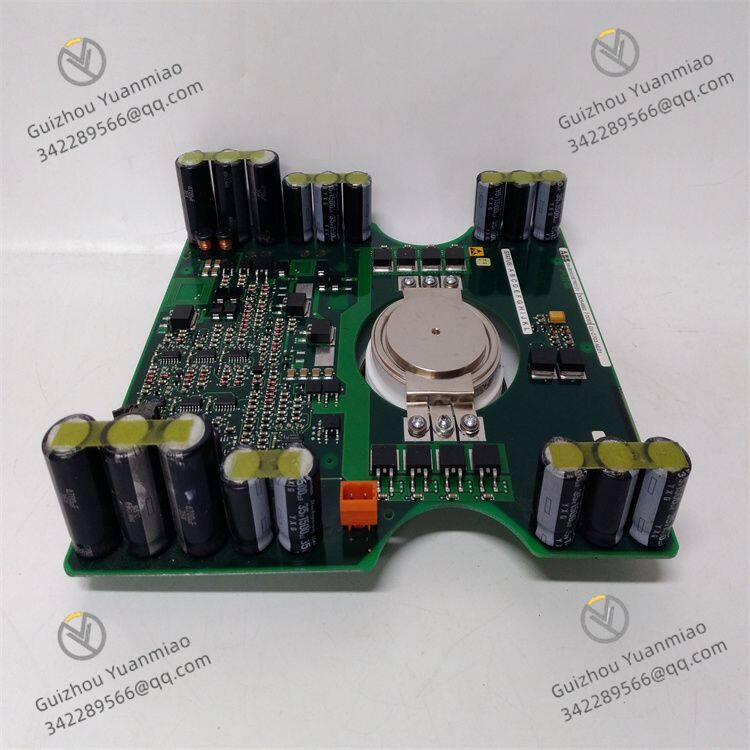

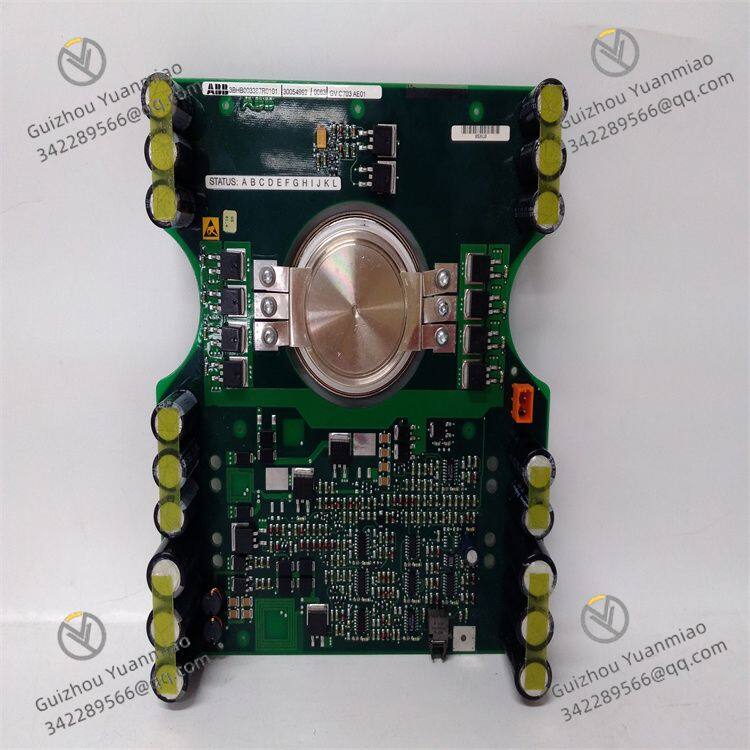

ABB 5SHY55L4500 High-Performance Power Semiconductor Module

ABB 5SHY55L4500 is an Integrated Gate-Commutated Thyristor (IGCT). As an important product of ABB in the field of power electronics, it integrates advanced technical concepts. IGCT combines the fast turn-off characteristic of transistors with the advantages of thyristors in withstanding high voltage and large current, and is elaborately designed for medium-high voltage, high-power power electronic application scenarios. In complex and harsh power environments, 5SHY55L4500 can operate stably, providing key support for the efficient and reliable operation of power systems. In industrial production, it is often used in medium-high voltage frequency converters, which can precisely control motor speed and improve industrial production efficiency; in the field of power transmission, it plays a role in systems such as static var compensators and high-voltage direct current transmission, helping to achieve precise power conversion and control, and promoting the development of related industries towards intelligence and high efficiency.

In the forward blocking state, 5SHY55L4500 withstands a forward anode voltage. Since no trigger signal is received at the gate, the thyristor is in the off state with only a weak leakage current. When a suitable forward trigger pulse is applied to the gate, the injection of gate current causes the internal PNP and NPN transistors of the thyristor to interact and enter a positive feedback state. At this time, the device turns on rapidly, and current flows from the anode to the cathode. After turning on, as long as the anode current remains above the holding current, the thyristor will stay on even if the gate trigger signal is removed. When the anode current drops below the holding current or a reverse anode voltage is applied, the thyristor returns to the blocking state. Through this mechanism, precise control of the current in the circuit is achieved to meet the operational requirements of different power systems. For example, in high-voltage direct current transmission systems, efficient transmission and conversion of direct current are realized by precisely controlling the turn-on and turn-off of 5SHY55L4500.

•


• Voltage Rating: The reverse repetitive peak voltage (VDRM) can reach 5500V. This high voltage level enables it to well adapt to the voltage requirements of medium-high voltage power systems. Whether in high-voltage power distribution scenarios in industrial power grids or high-voltage operating environments of large power-driven equipment, it can provide reliable guarantee for power conversion and control.

• Current Handling Capacity: The collector current can reach 3600A (specific value is subject to official data), with strong large-current carrying capacity, which can meet the high-load current demand of high-power equipment during operation and ensure continuous and stable power supply under high-load conditions. For example, it plays a key role in the power drive of large power industrial equipment such as large rolling mills.

• Operating Temperature Range: Usually between -40°C and +125°C, it can adapt to temperature changes in different regions and industrial environments. Whether in outdoor power facilities in cold regions or industrial production workshops in high-temperature environments, it can work normally, greatly expanding its application range.

•


• Efficient Switching Performance: Based on the advanced gate commutation technology of IGCT, 5SHY55L4500 has an extremely fast switching speed and can complete current on-off operations in an extremely short time. It performs excellently in scenarios with extremely high requirements for response speed, such as rapid load changes, and can quickly adjust the current state. For example, when new energy power generation is connected to the power grid, in the face of rapid fluctuations in power generation, it can adjust the current in a timely manner, effectively improving the dynamic performance and stability of the power system, and ensuring the timeliness and accuracy of power supply.

• High Reliability and Stability: It adopts high-quality semiconductor materials and advanced manufacturing processes, and strictly follows high-standard quality control systems. It can operate stably for a long time in harsh industrial environments such as high temperature, high humidity, and strong electromagnetic interference. This significantly reduces the incidence of equipment failures, reduces the number of maintenance operations and costs, provides strong guarantee for the continuous production of enterprises, and lowers operational risks. It has important application value in industries with high requirements for equipment stability, such as chemical industry and metallurgy.

• High Energy Conversion Efficiency: Through optimization of internal structure and electrical design, energy loss during power conversion is significantly reduced. In application scenarios such as medium-high voltage frequency converters, it can efficiently convert input electrical energy into the required form of electrical energy, improving energy utilization efficiency, helping enterprises save energy consumption costs, conforming to the concept of energy conservation and environmental protection, and contributing to sustainable development. For example, it can effectively reduce energy consumption in the frequency conversion control of large central air-conditioning systems.

• Strong Adaptability: It is well compatible with various power system equipment and different circuit topologies. Whether it is traditional industrial power drive systems or complex new power architectures such as smart grids and distributed energy access, it can be smoothly integrated and work in coordination with other equipment. In smart grids, it can cooperate with various intelligent power equipment, creating favorable conditions for building a diversified and intelligent power system.
