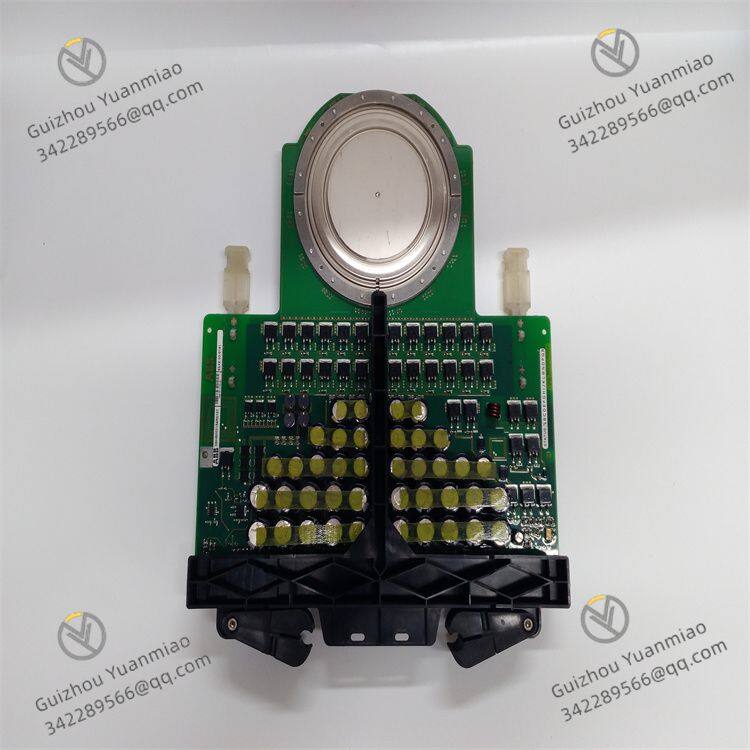

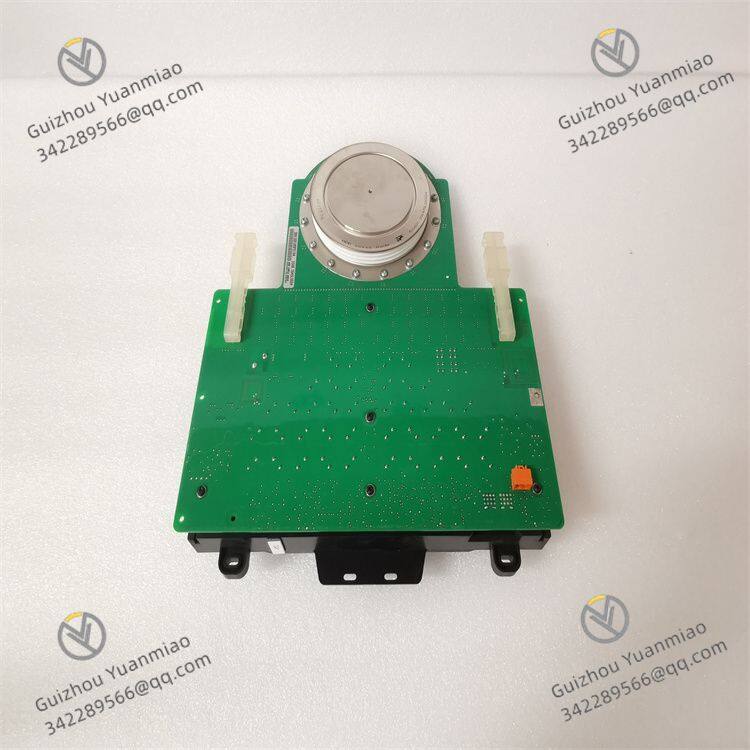

ABB IGCT Module 5SGY3545L0002 Controller Circuit Board

ABB 5SGY3545L0002 belongs to the Integrated Gate-Commutated Thyristor (IGCT) product series, and is a high-performance power semiconductor module. Developed and manufactured by ABB, it integrates advanced power electronics technology, highly integrating GTO chips, anti-parallel diodes, and gate drive circuits, thus boasting excellent electrical performance. Specifically designed for medium-high voltage and high-power application scenarios, this module can operate stably in complex and harsh power environments, providing key support for the efficient and reliable operation of various power systems. In the industrial field, it is commonly used in systems such as medium-high voltage frequency converters, static var compensators, and high-voltage direct current transmission, effectively helping industrial production equipment achieve precise power conversion and control, and promoting the efficiency and intelligence of industrial production.

In the forward blocking state, the IGCT of ABB 5SGY3545L0002 withstands a forward anode voltage. At this time, since no trigger signal is received at the gate, the thyristor is in the off state with only an extremely small leakage current present. When a suitable forward trigger pulse is applied to the gate, the gate current is quickly injected, causing the PNP and NPN transistors inside the thyristor to interact and enter a positive feedback state. This process enables the device to turn on rapidly, allowing current to flow smoothly from the anode to the cathode. After conduction, as long as the anode current remains above the holding current, the thyristor can still maintain the on state even if the gate trigger signal is removed. When the anode current drops below the holding current or a reverse anode voltage is applied, the conductive mechanism inside the thyristor changes, causing it to return to the blocking state. In this way, ABB 5SGY3545L0002 can precisely control the on-off and magnitude of current in the circuit to meet the diverse operational requirements of different power systems.

•


• Voltage Rating: The reverse repetitive peak voltage (VDRM) can reach 4500V, which can well adapt to the voltage requirements of medium-high voltage power systems, providing solid guarantee for power conversion and control in high-voltage scenarios such as industrial power grids and large-scale power-driven equipment.

• Current Handling Capacity: The collector current can reach 3500A (speculative based on the product series; specific values are subject to the official manual), with strong large-current carrying capacity, which can fully meet the operational needs of high-power equipment and ensure continuous and stable power supply under high-load conditions.

• Operating Temperature Range: Generally between -40°C and +85°C. Compared with common modules, its lower and higher temperature limits are wider, enabling it to adapt to a broader range of regional and industrial environmental temperature changes. It can work normally even under extreme temperature conditions, greatly expanding the application scenarios.

• Switching Frequency: Can reach a high level (e.g., 500Hz; specific values depend on the actual product design). The fast switching speed allows it to perform excellently in scenarios with extremely high response speed requirements such as rapid load changes, enabling it to quickly adjust the current state and effectively improve the dynamic performance and stability of the power system.

• On-state Voltage: The typical value is approximately 1.5V (specific values refer to the product manual). The low voltage during conduction means less voltage loss in the power transmission process, which helps improve the efficiency of power transmission and conversion, reduce unnecessary energy loss, and enhance the overall energy efficiency of the system.

• Turn-off Time: Relatively short (e.g., 5μs; specific values depend on the actual product). It can quickly cut off the current when needed, realizing precise control of the circuit and reducing potential safety risks and equipment damage caused by delayed current turn-off.

•


• Efficient Switching Performance: With the advanced gate commutation technology of IGCT, ABB 5SGY3545L0002 has an extremely fast switching speed, capable of completing current on-off operations in an extremely short time. This feature makes it perform excellently in scenarios with extremely high response speed requirements such as frequent start-stop of motors and rapid load changes. It can adjust the current state in a timely and precise manner, strongly ensuring the timeliness and accuracy of power supply, and significantly improving the dynamic response capability and operational stability of the power system.

• High Reliability and Stability: It adopts high-quality semiconductor materials and advanced manufacturing processes, and is produced in strict accordance with high-standard quality control systems. This module can operate stably for a long time in harsh industrial environments such as high temperature, high humidity, and strong electromagnetic interference. This not only greatly reduces the incidence of equipment failures, decreases the number of maintenance operations and maintenance costs, but also provides reliable guarantee for the continuous production of enterprises, effectively reducing operational risks.

• High Energy Conversion Efficiency: Through in-depth optimization of internal structure and electrical design, energy loss during power conversion is significantly reduced. For example, when applied in medium-high voltage frequency converters, it can efficiently convert input electrical energy into variable-frequency electrical energy required by motors, greatly improving energy utilization efficiency, helping enterprises save a large amount of energy consumption costs, conforming to the current development concept of energy conservation and environmental protection, and assisting enterprises in achieving sustainable development goals.

• Strong Adaptability: It has excellent compatibility and can work well with various power system equipment and different circuit topologies. Whether it is traditional industrial power drive systems or emerging complex new power architectures such as smart grids and distributed energy access, it can be smoothly integrated and work collaboratively with other equipment, creating favorable conditions for building a diversified and intelligent modern power system.
