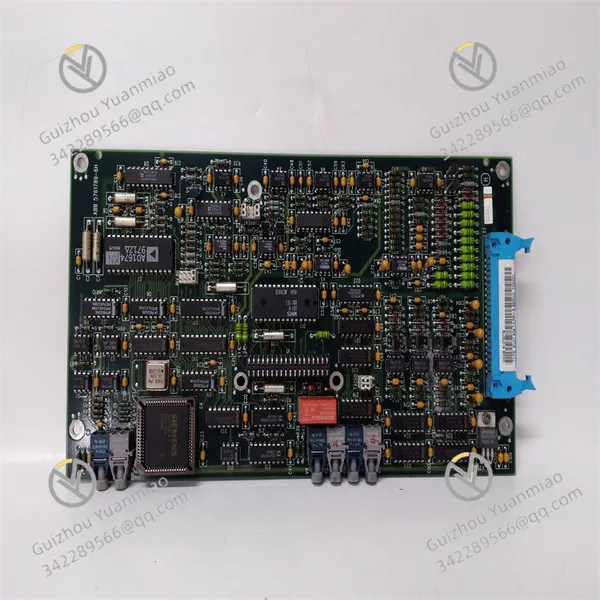

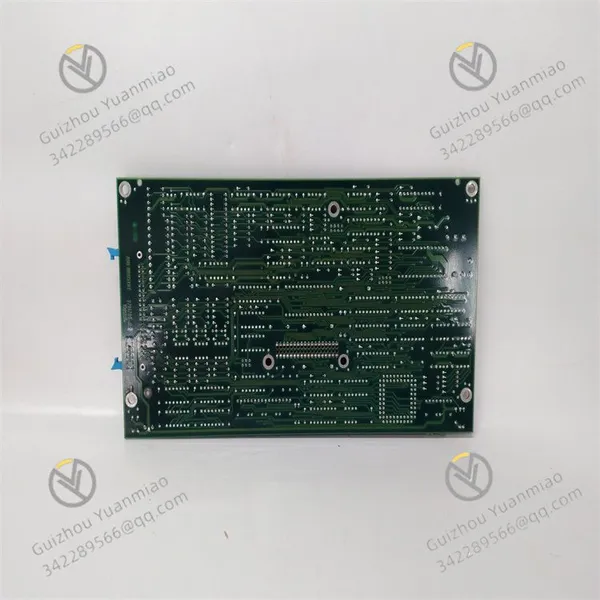

SNAT609TAI Signal Processing Module ABB

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

Product Overview: SNAT609TAI is an industrial automation signal processing module launched by ABB, belonging to its industrial control component series. It is mainly used for temperature signal acquisition and conversion in industrial production processes. It is usually compatible with ABB's automation systems and related industrial equipment, providing accurate temperature data support for control systems and ensuring the stable operation of industrial processes.
Technical Parameters:

Operating Voltage: Generally 24V DC, in line with industrial-grade power supply standards, ensuring stable power supply in complex industrial environments.
Input Signal Type: Mainly receives temperature signals from thermocouples (such as K-type, J-type, T-type, etc.) or thermal resistors (such as PT100), compatible with various types of temperature sensors.
Measurement Range: Varies according to the type of connected sensor, usually covering -200°C to +1800°C (the specific range depends on the sensor specifications).
Measurement Accuracy: ±0.1°C (within the typical measurement range), with high-precision temperature detection capability.
Output Signal: Usually converted into standard industrial signals for output, such as 4-20mA current signals or 0-10V voltage signals, facilitating connection with control systems such as PLC and DCS.
Operating Temperature Range: -20°C to +60°C, adapting to high and low temperature environments in industrial sites.
Protection Class: The protection class of the module itself is approximately IP20, suitable for installation in control cabinets to avoid direct impact from dust and moisture.
Dimensions: Adopting a compact design, the size is approximately 105mm×80mm×30mm, saving installation space and facilitating system integration.

High-Precision Temperature Acquisition: Uses dedicated temperature acquisition chips and signal conditioning circuits to effectively reduce noise interference and ensure the accuracy of temperature measurement.
Strong Sensor Compatibility: Supports input from various types of thermocouples and thermal resistors, and can flexibly match different sensors through parameter settings to meet diversified temperature measurement needs.
Signal Isolation Function: There may be electrical isolation between input, output and power supply, improving the module's anti-interference ability and safety, and avoiding interference of external signals on the system.
Fault Diagnosis Function: May have the ability to detect faults such as sensor disconnection and short circuit, and feed back fault status through indicator lights or communication signals, facilitating quick troubleshooting.
Easy Integration: Supports seamless connection with ABB automation systems and third-party control systems, with simple installation and parameter configuration, reducing the difficulty of project implementation.
