Description

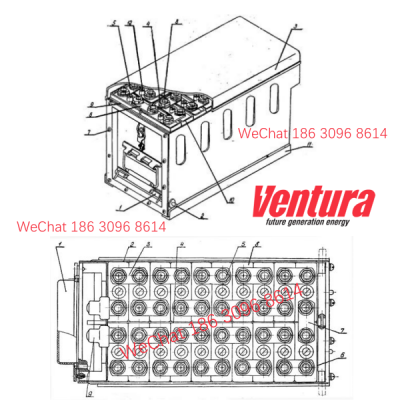

Aircraft Ni-Cad Battery 20 NKBN 25-U3
Additional product information
Part Number p/n
20 NKBN 25-U3
Condition
New
Airplane Type
All L 410
Tag
Serviceable Yellow Tag
Remarks
N/A
20NKBN-25-TD-U3
Rechargeable batteries 20NKBN-25-TD-U3 provide autonomous launch of auxiliary power units and engines of aircraft,helicopters and unmanned aerial vehicles;smoothing of voltage ripples in the on-board DC power supply system with a nominal voltage of 27 V in-flight power supply of the first category electric power receivers(necessary for the completion of the flight and safe landing)in the event of a failure or disconnection of primary sources(in case of emergency operation of the power supply system).
Details
1.Nominal capacity 25.0 A×h.
2.Nominal voltage 24.0 V.
3.Continuous discharge current up to 250 A.
4.The amplitude of the discharge current at the starter load up to 650 A.
5.Range of working temperatures:
–providing charging and discharging characteristics from-20 to+50°C,
–while maintaining performance from-60 to+60°C.
6.Resistance to mechanical stress:
–vibration:frequency 10-2000 Hz,acceleration 10 g,
–impacts:acceleration 12 g,duration of action 2-20 ms.
7.Weight with electrolyte,no more than 25 kg.
8.Overall dimensions(max.)392×175.5×229 mm.
9.Charge safety,day–30.
10.Warranty period in cold and temperate climates is 5 years.
11.Warranty period in tropical climates is 3 years.
12.Service life in a tropical climate,not less than 3 years.
Payment&delivery
The main principle and goal of Aviamisto has always been the high quality of products and services,as well as their prompt delivery to customers.
Aviation rechargeable battery 20NKBN-25-U3
Autonomous launch of main and auxiliary aircraft engines or turbo starters.
the provision of power in the ground conditions of individual receivers with non-operating main and auxiliary aircraft engines and the absence of power supply from aerodrome sources of electricity;
aunch in flight of a stalled aircraft engine or a turbo starter;
power in flight of receivers of the 1st category in case of emergency operation of the power supply system.
Type of execution in accordance with GOST 15 150-69
Characteristics Aggregates and Avionics
Ambient temperature From-60 up to+60
Supply voltage 24
Purpose
Aircraft IL-62,IL-76,IL-86,IL-96,IL-106,IL-112
Helicopter Mi-8MTV,Mi-171,Mi-172
Onboard Systems Ground equipment and engine system
20НКБН-25-У3
