TC520 System Status Collector

TC520 System Status Collector photo-1

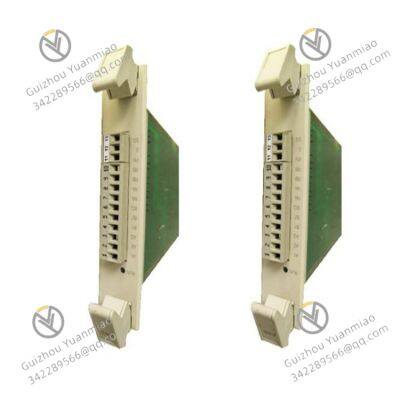

TC520 System Status Collector photo-2

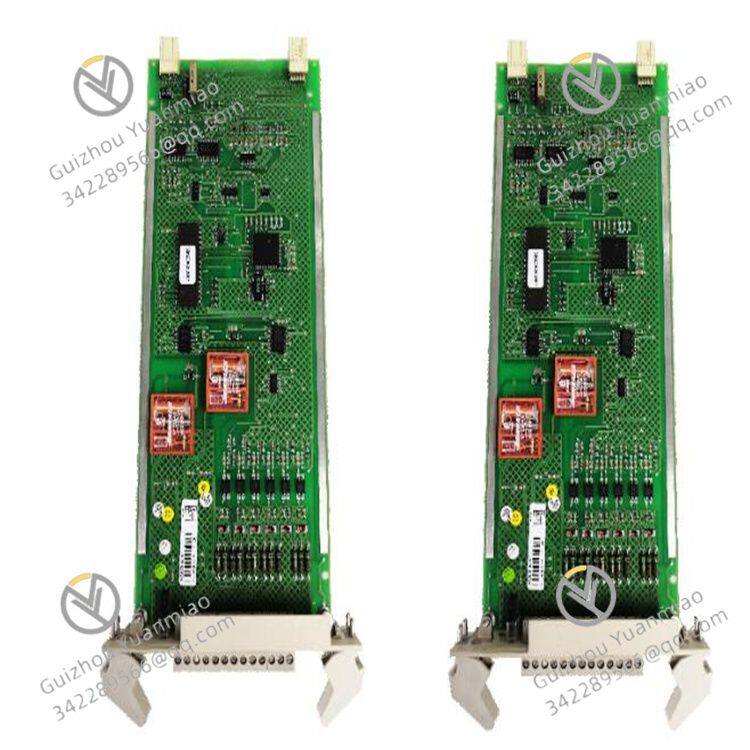

TC520 System Status Collector photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.





ABB TC520 is a system status collector belonging to ABB's Advant Controller series, which is commonly used for data acquisition and monitoring in industrial automation systems. The following is the relevant content of its user manual:
Product Overview
The TC520 is mainly used with Advant controllers (such as AC450 and AC460) and can be seamlessly integrated into ABB's PLC systems. It can collect and process data in real-time, helping operators make quick decisions and improving the operational efficiency and reliability of industrial automation systems.
Technical Parameters
  • Operating Temperature Range: -40°C to 85°C.

  • Communication Interfaces: Supports Modbus, Profibus, HART, Foundation Fieldbus PA, RS232/RS485, and Ethernet communication protocols.

  • Power Requirements: 24V DC input voltage, supporting a wide range of inputs (85 - 264V AC or 110 - 370V DC).

  • Protection Level: IP20 or higher.

  • Weight: Approximately 0.29 kg.

  • Input/Output Capability: Supports analog inputs (e.g., voltage, current), digital inputs/outputs, and communication interfaces.








ABB-TC520 1



Functional Features
  • Data Acquisition and Monitoring: Collects real-time device status information such as voltage, current, and temperature for process control and fault diagnosis.

  • Communication Bridge: Serves as a communication interface between field devices and the central controller, enabling data transmission and system integration.

  • Data Analysis and Visualization: Supports data analysis, report generation, and visual display through the collected data.

Installation Method
Adopts DIN rail mounting, allowing for easy installation in control cabinets and other locations.
Scanning and Diagnostics
When scanning or reading diagnostics is enabled, all instruments in the instrument list are scanned, with a different channel scanned every 5 seconds. If an instrument does not respond, the relevant "DISAPPEARED" and "SEARCHING" bits are set, and then the module starts scanning instruments with HART command 0. Based on the response, the module sets or clears the corresponding bits to determine the instrument status and restarts normal scanning activities or continues searching.

ABB-TC520 3







Related products:

S-073N 3BHB009884R0021
S-073N 3BHB009884R5211
S-113N 3BHB018008R0001 3BHB018008R0002 3BHB018008R0101
S-093H 3BHB009885R0004
S-073M 3BHB009884R0013
S-073H 3BHB009884R0004
S-076N 3BHB009884R0021



ABB Millmate Strip Tensiometer Systems strip tension measurement

Product Tags: TC520 , System Status Collector , ABB
