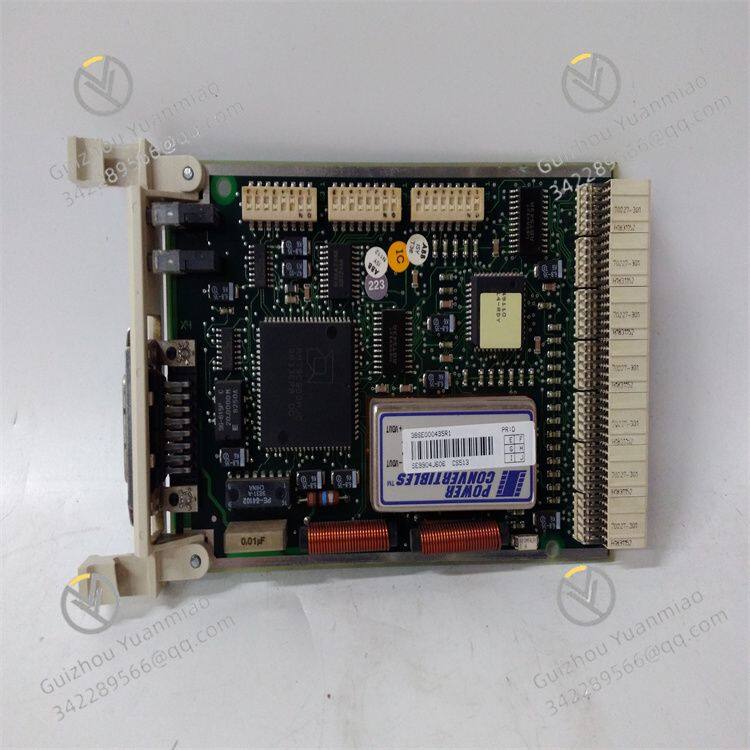

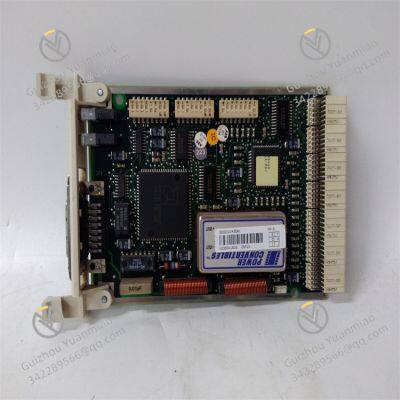

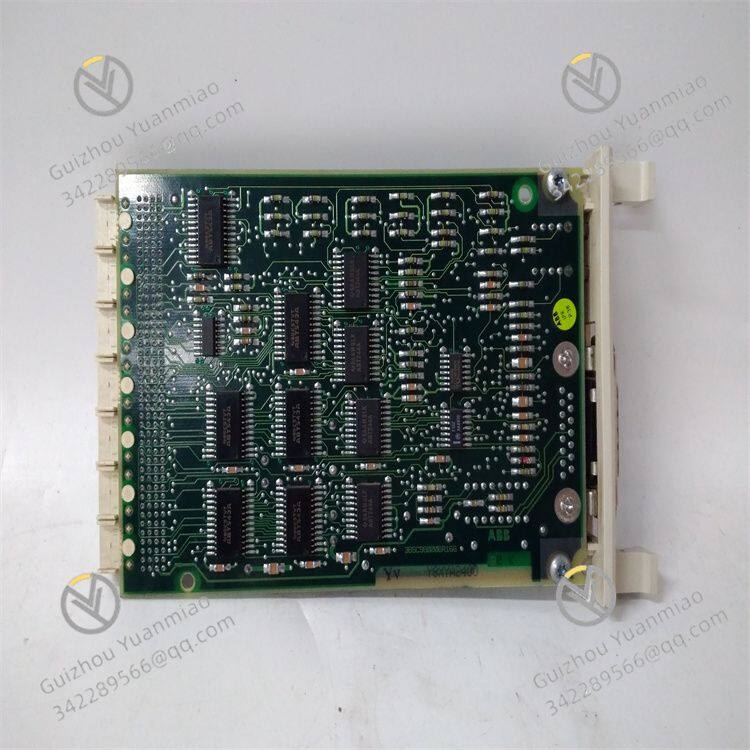

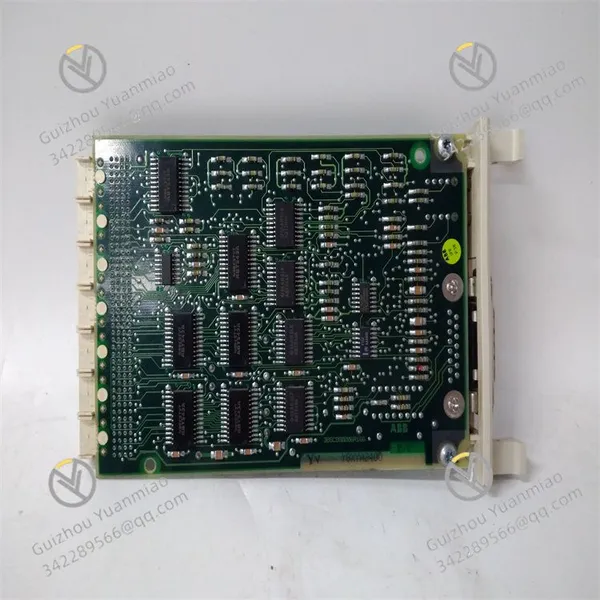

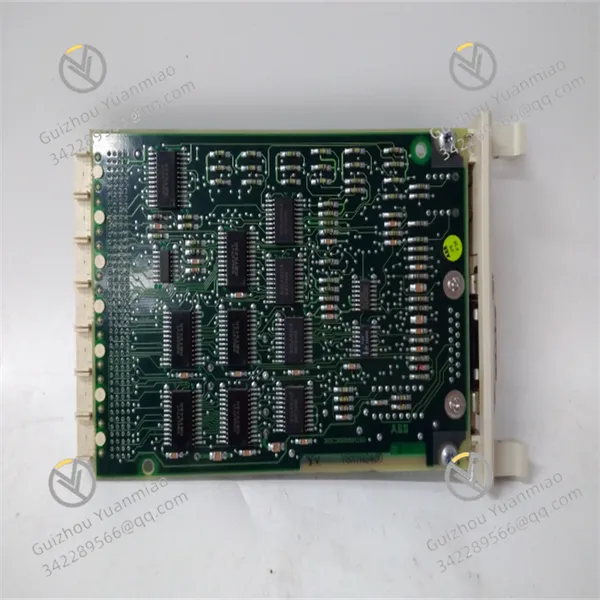

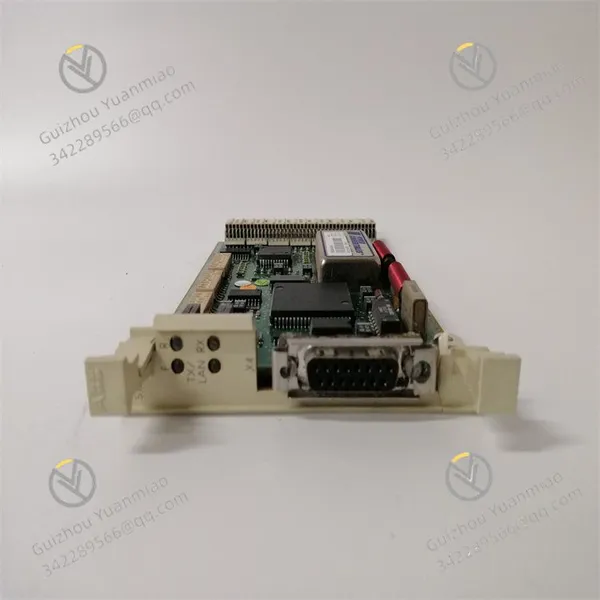

CS513 3BSE000435R1 LAN Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

CS513 3BSE000435R1 is an IEEE 802.3 LAN module launched by ABB, commonly used in industrial automation control systems. The following is relevant content from its user manual:
Product Overview
As a key component for connecting the ABB AC800M controller to an Ethernet network, CS513 3BSE000435R1 mainly enables data communication between the controller and other devices (such as DCS systems, PLCs, SCADA servers, HMI, etc.), expanding the functions of the AC800M controller to support more application scenarios.
Technical Parameters
Interface Type: RJ45
Communication Protocol: IEEE 802.3
Transmission Rate: 10/100 Mbps (adaptive)
Working Mode: Half-duplex/full-duplex (adaptive)
Flow Control: Supports IEEE 802.3x
VLAN: Compatible with 802.1Q VLAN
Power Supply: 24 VDC
Operating Temperature Range: -25°C to +55°C
Enclosure Protection Rating: IP20

Product Features
Adaptive Rate and Mode: It can automatically adjust the transmission rate (10/100 Mbps) and working mode (half-duplex/full-duplex) according to the network environment, adapting to the communication requirements of different devices.
Network Optimization Functions: Supports IEEE 802.3x flow control and 802.1Q VLAN, which helps manage network traffic and improve network performance.
Built-in Switch: Integrates a switch function, allowing connection of multiple Ethernet devices, facilitating the establishment of a local area network.
Status Diagnosis: Real-time display of network status, module operation status and other information through LED indicators, facilitating quick troubleshooting and shortening maintenance time.
