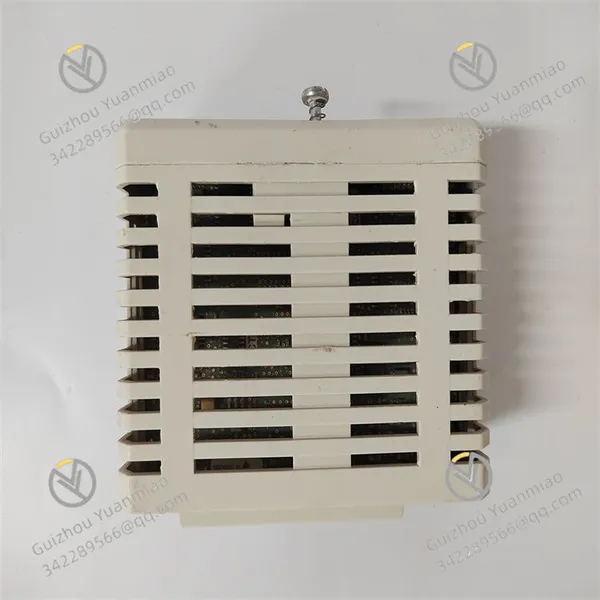

CI854A 3BSE030221R1 Interface Module

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

CI854A 3BSE030221R1 is a PROFIBUS-DP/V1 interface module manufactured by ABB, belonging to ABB's System 800xA automation control system series. The following is relevant content from its user manual:
Product Overview
This module is used to realize high-speed data communication between the ABB control system and other PROFIBUS-DP/V1 devices. It receives data from the ABB control system, converts it into signals compliant with the PROFIBUS-DP/V1 protocol, and transmits them to other field devices via the PROFIBUS-DP/V1 bus.
Technical Parameters
Power Supply Voltage: 24V DC
Communication Interface: 9-pin D-sub connector
Communication Protocol: PROFIBUS-DP/V1
Data Transfer Rate: 9.6 kbps to 12 Mbps
Number of Inputs: 10 (dual-channel, up to SIL 3) or 20 (single-channel, up to SIL 2)
Input Voltage Range: "0" signal: 0V DC - 5V DC; "1" signal: 11V DC - 30V DC
Number of Outputs: 4 (safety semiconductor outputs, up to Cat. 4), 2 (negative switching outputs)
Output Voltage:
Rated Output Voltage: 24V DC
Operating Temperature: +5℃ to +55℃
Storage Temperature: -40℃ to +70℃
Mounting Method: Rail mounting

Functional Features
High-Speed Communication: Supports a maximum data transfer rate of 12 Mbps, meeting the requirements of high-speed data transmission.
Strong Communication Capability: Can handle large volumes of data communication, suitable for complex industrial applications.
Flexible Configuration: Users can flexibly configure PROFIBUS-DP/V1 parameters according to actual application needs.
High Reliability: Adopts an industrial-grade design, ensuring stable operation in harsh industrial environments. It supports line redundancy, module redundancy, and features hot-swappable functionality.
Easy Maintenance: Standard rail mounting and 9-pin D-sub connectors facilitate system integration and maintenance.
