Home > Electrical & Electronics > Electrical Control System > GE DS200ADMAH1AAC Analog Module Sub-board

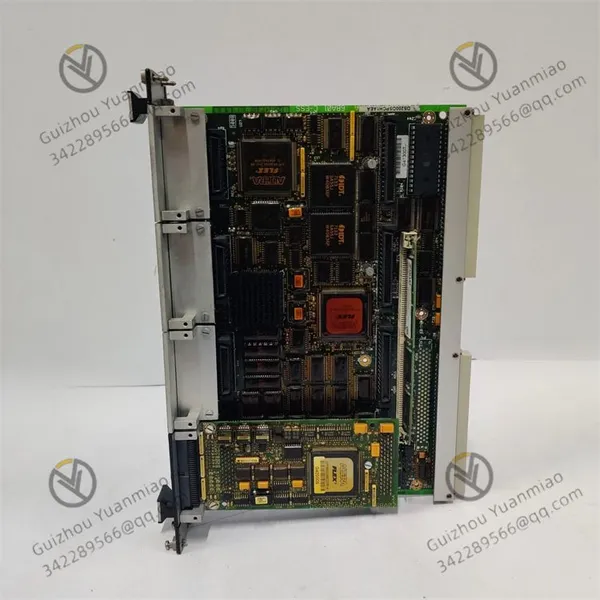

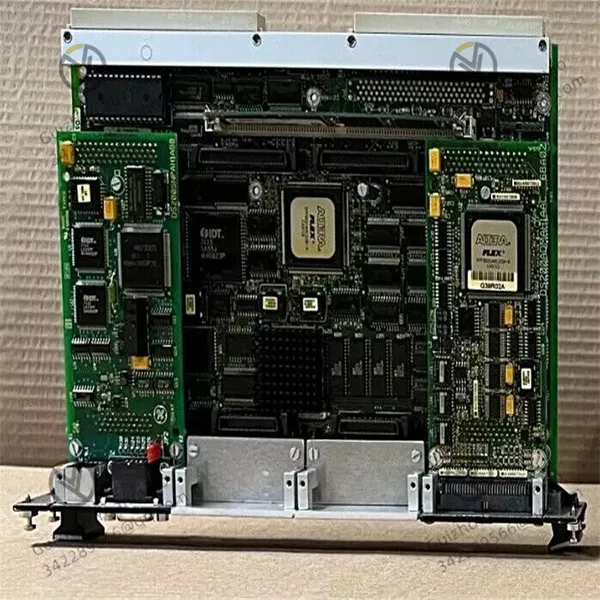

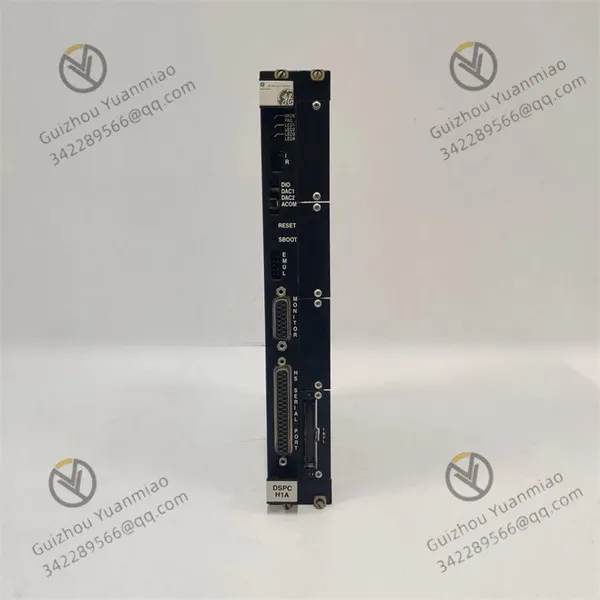

GE DS200ADMAH1AAC Analog Module Sub-board

GE DS200ADMAH1AAC Analog Module Sub-board thumbnail-2

GE DS200ADMAH1AAC Analog Module Sub-board thumbnail-3

GE DS200ADMAH1AAC Analog Module Sub-board thumbnail-4

GE DS200ADMAH1AAC Analog Module Sub-board photo-1

GE DS200ADMAH1AAC Analog Module Sub-board photo-2

GE DS200ADMAH1AAC Analog Module Sub-board photo-3

GE DS200ADMAH1AAC Analog Module Sub-board photo-4

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

GE DS200ADMAH1AAC analog module sub-board

The DS200ADMAH1AAC is an analog-to-digital module sub-board by General Electric (GE), belonging to the Mark V series, primarily used in industrial automation and control systems. The following is a detailed introduction:

Main FunctionsSignal Conversion

It can convert analog signals into digital signals for processing and analysis. Meanwhile, it also converts digital control signals into analog output signals for precise control of external devices.

Signal Processing

Buffers, filters, and converts analog and digital I/O signals sent to and from the board to ensure signal stability and accuracy, enabling better system recognition and processing.

Provision of I/O Points

In addition to the driver's own input/output points, the board provides an additional 8 digital input and output points for users to meet more control requirements.

System Interface Implementation

Equipped with integrated programmable logic devices, it achieves communication between the sub-board and the DPSC (Digital Signal Processing Card) processor bus through logic control in the form of static RAM, enabling better collaboration with the entire system.

Status Indication

Features LED status indicators that provide diagnostic and board status information, facilitating users to promptly understand the module's operating status for maintenance and fault troubleshooting.

Technical Characteristics and Parameters1. Core Functional Parameters

Parameter	Detailed Description
Signal Conversion Accuracy	- Analog input: 12-bit resolution, supporting multiple range configurations such as ±10V, ±5V, ±2.5V, 0-10V - Analog output: 12-bit resolution, output ranges including 0-20mA, 4-20mA, ±10V, etc.
Channel Quantity	- Digital inputs: 8 channels (compatible with TTL/CMOS levels) - Digital outputs: 8 channels (configurable as open-collector or push-pull output) - Analog inputs: 12 channels (differential or single-ended optional) - Analog outputs: 4 channels (current/voltage optional)
Sampling Rate	Up to 20kHz (analog input), supporting multi-channel synchronous sampling
Isolation Characteristics	- Electrical isolation (opto-coupler isolation) between digital I/O and analog I/O - Isolation voltage: ≥1500Vrms

2. Electrical Characteristics

Parameter	Detailed Description
Power Requirements	- Main power: +5V DC (±5%), typical power consumption ≤15W - Auxiliary power: ±15V DC (analog part)
Input Impedance	- Analog input: ≥10MΩ (voltage mode) - Digital input: ≥4.7kΩ
Output Driving Capacity	- Analog output: Maximum load capacity 500Ω (current mode), 10kΩ (voltage mode) - Digital output: Maximum driving capacity 24mA
Common Mode Rejection Ratio (CMRR)	≥90dB (DC-60Hz)

3. Physical Characteristics

Parameter	Detailed Description
Dimensions	Standard VME board size (160mm × 233.35mm), thickness ≤3.2mm
Weight	Approximately 350g (excluding heat sink)
Mounting Method	Metal panel design, directly stackable above the DS200DPSC board (fixed via locating pins)
Heat Dissipation	Natural convection cooling, with optional heat sink

4. Environmental Parameters

Parameter	Detailed Description
Operating Temperature	-40°C to +70°C (industrial grade)
Storage Temperature	-55°C to +85°C
Relative Humidity	5% to 95% (non-condensing)
Vibration Resistance	2.5g (10-2000Hz), compliant with IEC 60068-2-6 standard
Shock Resistance	15g ( 11ms), compliant with IEC 60068-2-27 standard

5. Communication and Interfaces

Parameter	Detailed Description
Communication Protocols	- Communication with DPSC board: Custom parallel bus protocol - Supports Modbus RTU (optional extension)
Interface Types	- Analog signals: BNC connector (differential input) or RJ45 (single-ended input) - Digital signals: DB25 connector - Power interface: Phoenix terminal
Indicators	- PWR (Power) - RUN (Operating Status) - COM (Communication Status) - ERR (Error Indication) - CHx (Channel Status, x=1-12)

6. Technical Advantages

High-Precision Signal Conditioning: Built-in Programmable Gain Amplifier (PGA) and low-pass filter suppress high-frequency noise and improve signal quality.
Multi-Channel Synchronous Sampling: Supports simultaneous sampling of multiple channels, suitable for applications requiring phase synchronization (e.g., motor control, power monitoring).
Hot-Swap Support: Compatible with hot-swapping (system support required), allowing online module replacement without affecting system operation.
Self-Diagnosis Function: Built-in self-check circuit real-time monitors the module's working status and supports fault code output.

Typical Application Scenarios

Power Systems: Synchronously collects multi-channel voltage and current signals for power grid harmonic analysis and fault detection.
Industrial Automation: Serves as a front-end signal processing unit for PLC/DCS systems, connecting temperature, pressure, and flow sensors.
Motor Control: Collects motor current and speed feedback signals to achieve high-precision closed-loop control.
Testing and Measurement: Used in laboratory data acquisition systems, supporting high-precision analog quantity collection and analysis.
