| Product Name | Galvanized Steel Coil |
| Standard | ASTM JIS EN AISI GB etc |
| Grade | Q195 Q235 |
| SGCC, SGCH, SGC340, SGC400,SGC 440,SGC 490, SGC 570 | |
| S220GD, S250GD, S280GD, S320GD, S350GD, S400GD, S500GD, S550GD | |
| DX51D, DX52D, DX53D,DX54D, DX55D | |
| Thickness | 0.12-3.0mm (customized, above 3.0mm available) |
| Width | 600-2000mm (customized) |
| Length | as customer requirements |
| Coil inner diameter | 508mm/610mm (customized) |
| Zinc coating | 20-600g/m2 |
| Raw material | cold rolled base. (hot rolled base also available) |
| Technique | hot dipped. (electro also available) |
| Coil weight | 3-8 tons |
| Tolerance | thickness +- 0.02 or +- 0.04, width +-5mm |
| Spangle type | zero spangle, small spangle, regular spangle, big spangle |
| Surface treatment | chromated/non-chromated, oiled/non-oiled, anti-fingerprints |
| Certification | CE, ISO9001-2008, SGS |
| Monthly output | 17000 tons |
| Packaging | 3 layers. kraft paper outside + water-proof plastic film in the middle + steel plate covered with strips outside |
| Landing port | qingdao/shanghai/tianjin port |
| Payment terms | T/T, L/C, western union paypal etc |
| Delivery time | it takes about 10 days for stock goods, or it will need 15-25 days if goods need to be customized |
| MOQ | as customer needs. reminder: more quantity reduce your purchase cost greatly |
| Inspection | third-party test |
| Cooperate brand | Anshan steel, Baotou steel,Jiangsu Shagang etc |
| Usage | Grade | Yield Strength (MPA) | Tensile Strength (MPA) | Elongation rate % |
| Punching galvanized steel | DX51D+Z | ~ | 270-500 | >=20 |
| DX52D+Z | 140-300 | 270-420 | >=22 | |
| DX53D+Z | 140-260 | 270-380 | >=26 | |
| DX54D+Z | 140-220 | 270-350 | >=30 | |
| Structure galvanized steel | S220GD+Z | >=220 | >=300 | >=18 |
| S250GD+Z | >=250 | >=330 | >=17 | |
| S280GD+Z | >=280 | >=360 | >=16 | |
| S320GD+Z | >=320 | >=390 | >=15 | |
| S350GD+Z | >=350 | >=420 | >=14 | |
| S400GD+Z | >=400 | >=470 | ~ | |
| S500GD+Z | >=500 | >=530 | ~ | |
| S550GD+Z | >=550 | >=560 | ~ |

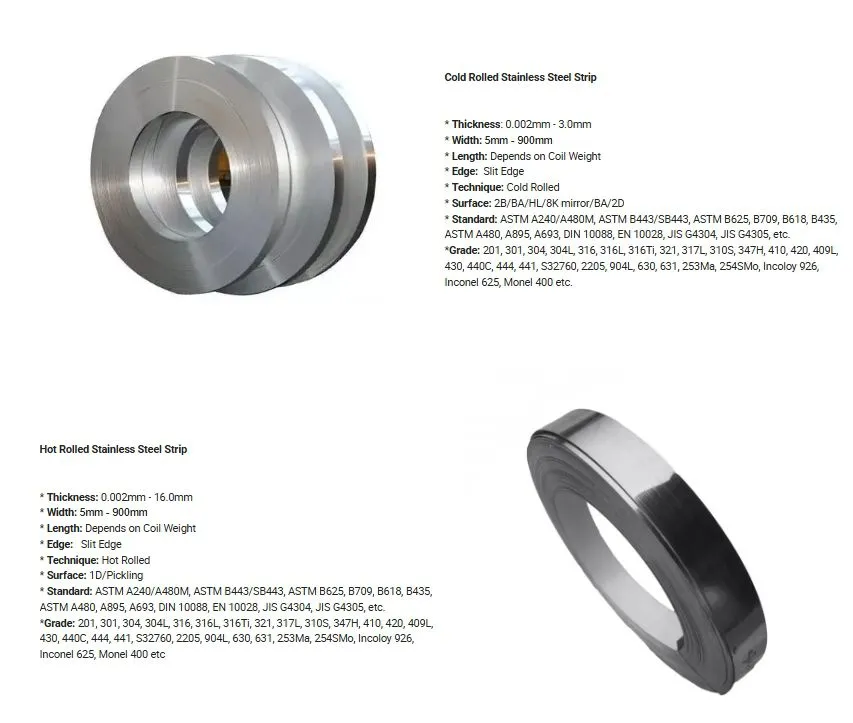

| Item | Bright 0.02mm - 0.05mm 304 316 316L 321 430 Stainless Steel Foil Coil Strip Belt Band |
| Grade | 201,3303, 304,316, 316L, 310S, 321 |
| Standard | ASTM A240,GB/3280-2007,JIS4304-2005,EN10088-2-2005 |
| Surface | Mirror, Satin, Hairline, BA, 2B |
| Specification | Thickness: 0.0125-0.5mm |
| Width:20-400mm | |
| Packing | Standard export packing ,suit for all kinds of transports or as required |
| Container Size |
20ft GP:5898mm(Length)*2352mm(Width)*2393mm(Height) 40ft GP:12032mm(Length)*2352mm(Width)*2393mm(Height) 40ft HC:12032mm(Length)*2352mm(Width)*2698mm(Height) |
| Trade Term | EX-WORK,FOB ,CFR,CIF |
| Payment | 30% deposit by TT, Balance by TT or LC at sight. |
| Delivery | 7-10 days after receiving the deposit |
Product Description
* Stainless steel belt has many excellent characteristics, such as its high temperature resistance, deformation resistance, corrosion resistance
Stainless Steel Foil / Band / Strip / Belt Applications
* Electronic Components
* Mobile phone Outer shell
* Disc switch
* Etching parts
* Electronic stamping parts
* Electron gun parts
* Optical fiber cable protection tubes
Product Show
Apply Scenario
Stainless steel products use
1, Structural steel production of general structural steel and welding structural steel, mainly used for steel structural parts, Bridges, ships, vehicles production.
2, Weatherproof steel added special elements (P, Cu, C, etc.), has good corrosion resistance and atmospheric corrosion resistance, used in the production of containers, special vehicles, but also used in building structures.
3, Automobile structure steel with good DRAWING performance and welding performance of high strength steel plate, used for automobile FRAME, WHEEL and other production.
4, Hot rolled special steel general mechanical structure with carbon steel, alloy steel, tool steel, after heat treatment engineering for the production of various mechanical parts.
5. Cold rolled original plate is used to produce various cold rolled products, including CR, GI, color coated plate, etc.
6, Steel pipe with steel plate has good processing performance and compressive strength, for the production of 500! LPG, acetylene, and various kinds of gas filling under high pressure gas pressure vessel.
7, High pressure vessels with steel plate has good processing performance and compressive strength, for the production of 500LPG, acetylene, and various kinds of gas filling under high pressure gas pressure vessel.
8, Stainless steel plate has good corrosion resistance, mainly used in food industry, surgical equipment, aerospace, petroleum, chemical and other industries
Packing
