S32205 duplex stainless steel round bar
Standard
ASTM A240,GB/T3280-2007,JIS4304-2005,ASTMA167,
EN10088-2-2005,etc
ASTM
Grade:201,202,301,304,304L304N,304LN,305,309S,310S,
316Ti,316N,316LN,317,317L,321,347,329,405,409,430,403,410,
420,etc.
EN
Grade:1.4372,1.4373,1.4319,1.4301,1.4306,1.4315,1.4303,
1.4833,1.4845,1.4571,1.4429,1.4438,1.4541,1.455,1.4477,1.4462,
1.4002,1.4512,1.4016,1.4509,1.4006,1.4021,1.4028,etc.
Diameter
1-1000mm
Length
3m,5.8m,6m or as customers' request
Surface
Black, peeled, polishing, bright, sand blast, hair line, etc.
Application
Decoration,construction,industry instrument.
Delivery Time
3-5 working days if this goods is stock goods.
12-15 working days if this goods will be produced after order.
Payment Term
T/T,L/C,Western Union,etc.

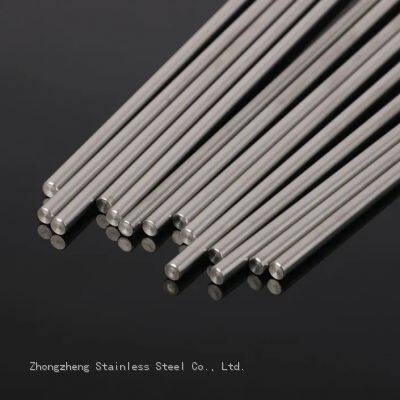

Material Photo:
Applications of DIN 41Cr4 Steel
After quenched and tempered,1.7035 steel can be used in the manufacture of medium speed,the load of parts,such as machine tools gear,shaft,worm,etc. Atfer QT and high-frequency surface hardening,41Cr4 steel is always used in the manufacture of high surface hardness,abrasion resistance parts. After quenching and middle temperature tempering,this material is usually used in the manufacture of overloading,medium speed impact of parts.
Quality Assurance
Below inspection will be done in the production.
(1) ray detection---RT;
(2) ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) penetration testing-PT;
(5) eddy current flaw detection-ET
ZHEJIANG ZHONGZHENG STAINLESS STEE MANUFACTURING CO., LTD
is a special stainless steel manufacturer with 20 years of manufacturing experience.
2205 (UNS S32305/S31803) is a 22% chromium, 3% molybdenum, 5-6% nickel, nitrogen alloyed duplex stainless steel plate with high general, localized, and stress corrosion resistance properties in addition to high strength and excellent impact toughness.
2205 duplex stainless steel plate provides pitting and crevice corrosion resistance superior to 316L or 317L austenitic stainless steels in almost all corrosive media. It also has high corrosion and erosion fatigue properties as well as lower thermal expansion and higher thermal conductivity than austenitic.2205 duplex stainless steel plate is particularly suitable for applications covering the -50°F/+600°F temperature range. Temperatures outside this range may be considered but need some restrictions, particularly for welded structures.
Duplex Stainless 2205 Applications
▪ Oil and gas exploration and processing equipment - piping, tubing, and heat exchangers
▪ Marine and other high chloride environments
▪ Effluent scrubbing systems
▪ Pulp and paper industry - digesters, bleaching equipment, and stock-handling systems
▪ Cargo tanks for ships and trucks
▪ Food processing equipment
▪ Biofuels plants
Duplex Stainless 2205 Standards
▪ ASTM/ASME: A240 UNS S32205/S31803
▪ EURONORM: 1.4462 X2CrNiMoN 22.5.3
▪ AFNOR: Z3 CrNi 22.05 AZ
▪ DIN: W.Nr 1.4462
Duplex Stainless 2205 Chemical Composition
| C | Mn | Si | P | Cr | Mo | Ni | N | |
| S31803 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 21-23 | 2.5-3.5 | 4.5-6.5 | 0.08-0.2 |
| S32205 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 22-23 | 3.0-3.5 | 4.5-6.5 | 0.14-0.2 |
Mechanical Properties at Room Temperature
| Temperature °F | 122 | 212 | 392 | 572 |
| Yield Strength 0.2%, ksi | 60 | 52 | 45 | 41 |
| Tensile Strength, ksi | 96 | 90 | 83 | 81 |
| 2205 stainless steel bar profile sizes and specifications | |
| Grade | 2205 |
| Specification | EN, DIN, JIS, ASTM, BS, ASME, AISI, ISO |
| Standard | ASTM A276/ASME SA276, ASTM A479/ASME SA479 & ASTM A164/ASME SA164 . |
| Stainless steel round Bar | Diameter: 2mm - 600mm |
| Stainless steel bright Bar | Diameter: 2mm - 600mm |
| Stainless steel hex Bar | Dimension: 6mm - 80mm |
| Stainless steel square bar | Dimension: 3.0 - 180mm |
| Stainless steel flat bar | Thickness: 0.5mm - 200mm, Width: 1.5mm - 250 mm |
| Stainless steel angle bar | as requirements |
| Length | Normally 6m, or produce as requirements |
| Surface | Black, Bright. Peeled and Polished, Solution annealed. |
| Delivery condition | cold drawn, hot rolled, forged, grinding, centerless grinding |
| Tolerance | H8, H9, H10, H11, H12, H13,K9, K10, K11, K12 or as per clients' requirements |
Logistic and Packing Informations
Packing Informations:
Packing Method: wooden pallets and waterproof paper packing
Packing Size:1000*2000mm 1219*2438mm 1500*6000mm 2000*6000mm or as request
Packing Weight: about 2 - 3 Tons each packing
Container loading:
20ft container: 2.2mm width * 2.2m height * 5.8m Length , each container loading 25 Tons
40ft container:2.2mm width * 2.2m height * 11.6m Length , each container loading 25 Tons
Q1: Do you accept the trial order ?
A1: Yes,if we have the exactly size in stock.we can delivery even 1 piece/meter .
Q2: Can I have free sample before making orders?
Q3: How do you control the quality ?
A3: MTC and PMI will be sent before shipment,any 3rd party inspection if need .
Q4: How about your delivery time ?
A4: Generally delivery time is 15 working days .
Q5: How can I quickly get the price list ?
A5: Directly click "chat now" or send us email with detail specifications,you will get the official price list in 1 hour .
About Our Company
1. Our company is a large company integrating wholesale of duplex steel and material processing.
2. Domestic partners: TISCO, BAOSTEEL, POSCO, JISCO, LISCO, TSINGSHAN, ESS.etc
3. Foreign Partners: COLUMBUS ,NAS,OUTOKUMPU,Nippon metal,NipponYakinKogyoNSC. etc.
4. Our duplex steel main products: 2205, 2507 duplex stainless steel, 254SMO austenitic stainless steel
5. The products are mainly used in: ship washing tower equipment, roadbed desulfurization tower, cooling tower, and many other industries.
6. Processing equipment: Imported from Italy, hot rolling machine, strip machine, high level water cutting machine, plasma cutting machine, large CNC milling machine, boring machine and many other imported processing equipment.
Logistic and Packing Informations
Packing Informations:
Packing Method: wooden pallets and waterproof paper packing
Packing Size:1000*2000mm 1219*2438mm 1500*6000mm 2000*6000mm or as request
Packing Weight: about 2 - 3 Tons each packing
Container loading:
20ft container: 2.2mm width * 2.2m height * 5.8m Length , each container loading 25 Tons
40ft container:2.2mm width * 2.2m height * 11.6m Length , each container loading 25 Tons
Q1: Can we visit your factory?
Q2: Can provide OEM/ODM service?
-A: Yes. Please feel free to contact us for more details discuss.
-A:We prefer TT, L/C, Western Union, etc.We will show you the photos of products and package before you pay the balance.
-A: Yes!We could provide the free samples on conditions it is available in stocks, however, the the transportation fee is borne by buyer.
Q5: what is the terms of delivery?
period,it usually takes about 15 days-30 days after receiving the deposit.
Q8: Why choose your company ?
-A:(1)We are specialized in this industry for more than 15+ years (2) We are full stock (3)we have ourselves processing factory.
Q9: What's the MOQ ?
-A: 1 Ton is OK.
