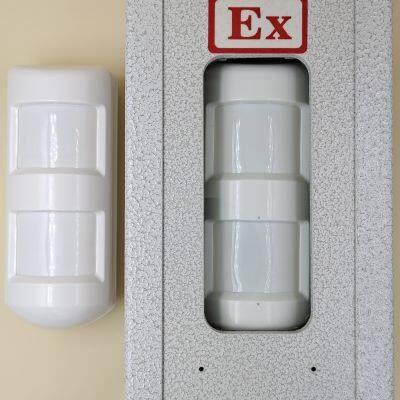

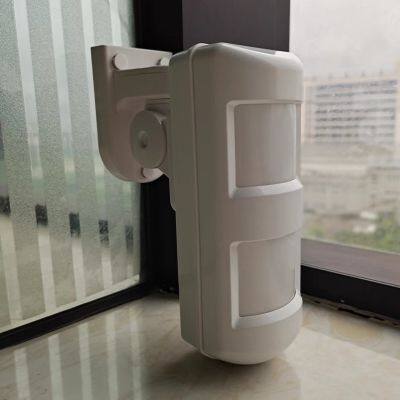

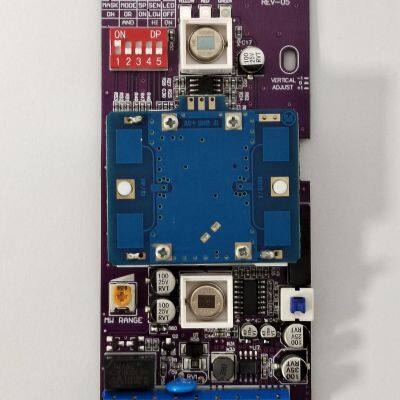

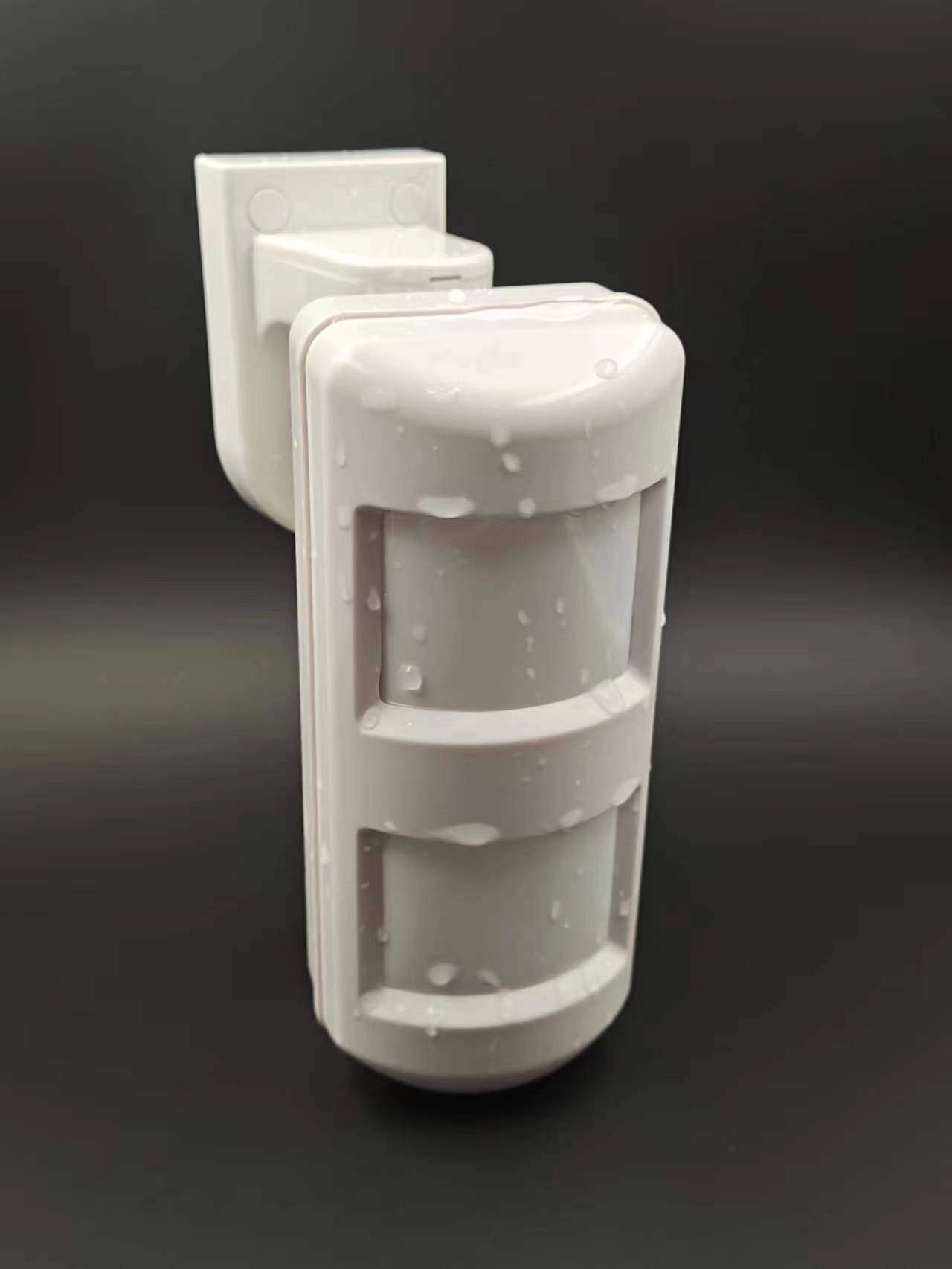

This is a microwave and dual passive infrared composite intrusion detector with auto masking technology for outdoor use. Using 8-bit high-speed microprocessor The direct calculation of 1 channel microwave and 2 channel passive infrared intrusion signals is carried out, bipolar detection, automatic temperature compensation, digital signal sensitivity adjustment technology, etc., will cause many possibilities The factors of false positives are effectively filtered out, photoelectric solid-state relay design, with strong antielectro magnetic radio frequency interference ability. High reliability, error-free , beautiful appearance, is the ideal choice for residential, office, hotel, warehouse and other anti-theft systems.
FEATURES
-Microwave masking technology
-Using digital microprocessor technology
-Two-stage sensitivity is adjustable
-Alarm output NO/NC Optional
-The alarm mode OR-AND-5P is optional
-Pet immunity: 25 kg
-Solid state relays resist all kinds of interference
SPECIFICATIONS MC-400T
Power 12-24VDC
Current 30mA(Stand by)
Mount height 1.5m-2.4m
Detection range 12m×12m 100° (wide lens)
Tem- compensation digital
Microwave 10.525GHz
PIR Sensitivity 2 level
Anti EMI 0.1-1000MHz/30V/m
Anti white light >10000 Lux
Anti R F I 50000V
Alarm output 2A/24VDC
Mask output 100mA/60VDC
Tamper output 200mA/125V
Lens type Wide Angle Pet lens
Operation temperature -25℃/+55℃
Operation humidity 95% RH
Detection speed 0.2-3.5 m/s
Fire proof ABS plastic
Pet immunity 25kg
Size 163mm×67mm×54mm (main)
