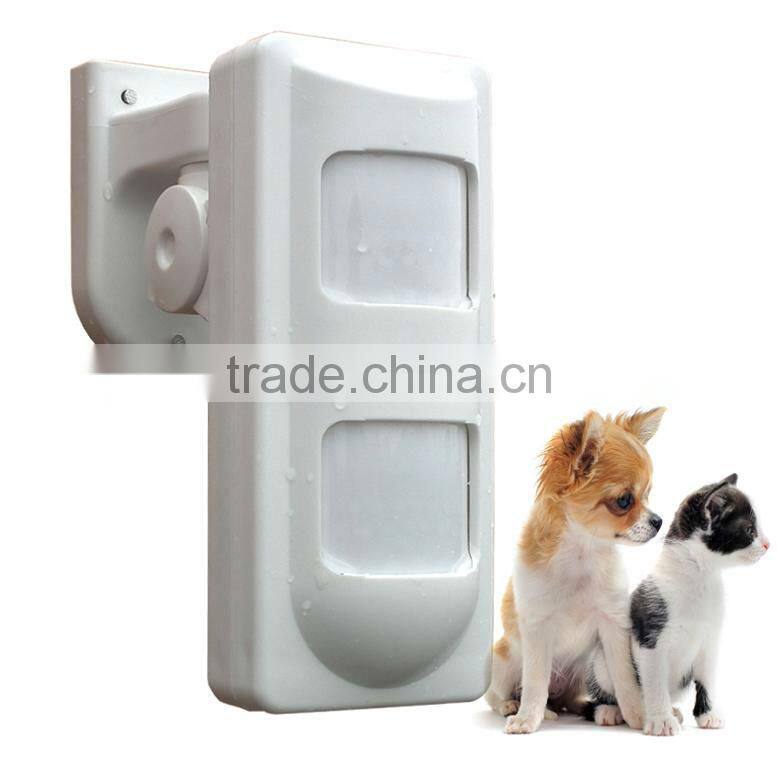

Name: Wired Outdoor Microwave Dual- PIR Motion Detector
Model: PIR-05
The Wired Outdoor Microwave Dual PIR Motion detector is an INPUT DEVICE, The PIR-05 Wired Outdoor Microwave Dual PIR Motion detector is designed to provide detection of criminal intrusion through perimeter into a protected area by sensing both of infrared energy (heat) emitting and movement from an intruder’s body moving through a protected area to eliminate false alarm. The user can choose detection by PIR sensor or microwave to detection according to the actual environment. The sensor also provides a tamper contact output and anti-mask to increase its reliability. Upon detection of intrusion, the PIR-05 Wired Outdoor Microwave Dual PIR Motion detector automatically generates an alarm signal to control panel. The unit is RF and EMI Immunity to interferences produced by radio device. The unit is can be wall-mounted by means of a bracket.
Product Features
Ø Waterproof design for outdoor, IP Grade is IP65;
Ø Duilt-in microwave sensor and 2 newly-developed dual element passive infrared sensor unit, double reliable detection technology to eliminate the false alarm;
Ø Intelligent MCU inside, increased anti-light interference and eliminate false alarm;
Ø Adopts specialized technology for anti-mask to increase its reliability;
Ø Adopts Pet Immunity technology and specialized optical lens for eliminate false alarm;
Ø Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;
Ø Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust;
Ø Selectable detection sensitivity (High/Low) for different environmental requirements;
ØTamper Switch for protecting the to avoid opened;
Ø SMT adopted, RF and EMI Immunity;
Ø Low power consumption.
Specifications:
Operating Voltage |
9~12VDC |
Detection Range |
Vertical angle 60degree, Horizontal angle 110 degree, 12m at 20°C. |
Standby Current |
less than 25mA |
Alarm Current |
less than 100mA |
RF Immunity |
> 30V/m 0.1-500MHz |
Sensitivity |
> 3300V/W |
Noise(Vp-p) |
<200mV, (mVp-p)(25°C) |
Anti white light |
>10000Lux |
Microwave Frequency |
10.525GHz |
Output Type |
NC or NO |
Pet Immunity |
≤35Kg |
Temperature Range |
-20°C ~ +40°C |
Relative Humidity |
95% (25 °C) |
Installation Mode |
Wall mounted by bracket |
Installation Height |
1.8~2.4m |
Detection Speed |
0.3m/S~3.2m/S |
Housing |
High-impact ABS |
Dimensions |
160x65x50.5mm (HxWxD) |
Applications |
For outdoor applications, perimeter protection alarm systems. |
