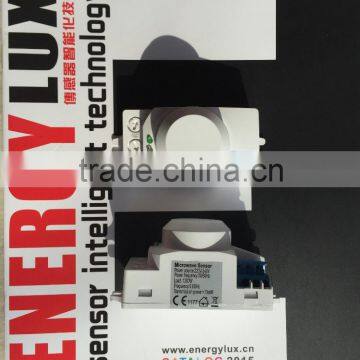

ES-M06 microwave detector radar sensor
saving-enegy switch(low consumption) wide used and very convenient
The sensor is an active motion detector, it emits high-frequency electro-magnetic wave(5.8GHz) and receives their echo. The sensor detects the change in echo from even the slightest movement in its detection zone.Detection is possible through doors, panes of glass or thin walls. It suit for the incandescent lamp or energy-saving lamp.
Wireless, easy to install, can be used in bedroom, washing room, back door, porch,front entrance,or outside of yard
Extremely low energy consumption
| MODEL | ES-M06 |
|
| DETECTION RANGE | 2-12M | |
| DETECTION ANGLE | 360° | |
| POWER SOURCE | 110V-130V/AC 220-240V/AC |
|
| POWER FREQUENCY | 50/60HZ | |
| HF SYSTEM | 5.8GHz CW radar, ISM band | |
|
RATED LOAD |
800W(110-130V/AC) 1200W(220-240V/AC) Incandescent lamp |
|
|
200W(110-130V/AC) 300W(220-240V/AC) Energy-saving lamp | ||
| TIME SETTING | 5sec-10±2min | |
| WORKING HUMIDITY | <93%RH | |
| TRANSMISSION POWER | <10M/W | |
| INSTALLING HEIGHT | 2m-4.5m | |
| AMBIENT LIGHT | <10lux~2000lux(adjustable) |
| PACKAGING DETIAL |
one gift box for unit packing, 50 pieces in one master carton |
By sea/air(avaible) |
| N.W/G.W(KGS) | 7/10.5 | |
| PACKING SIZE(CM) | 60*31.5*23.2 |

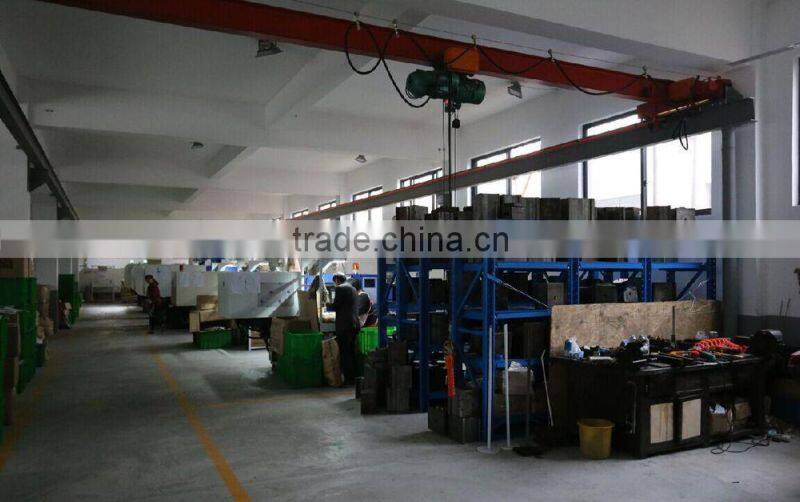

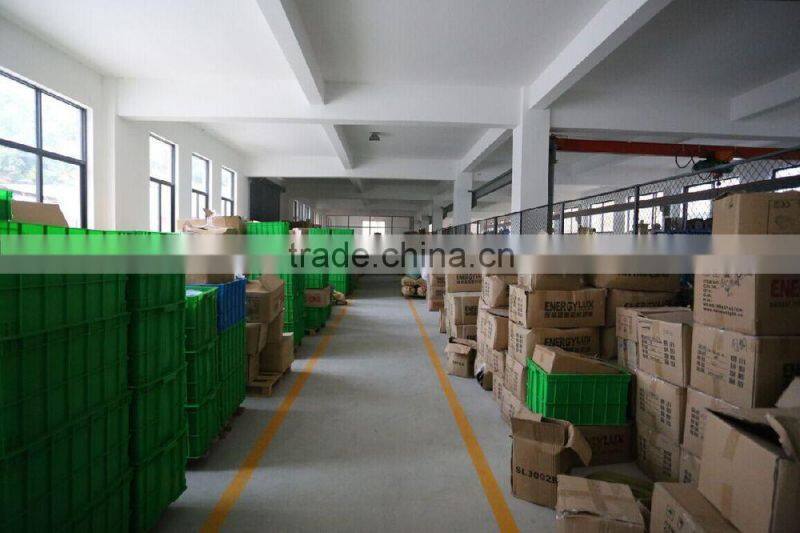

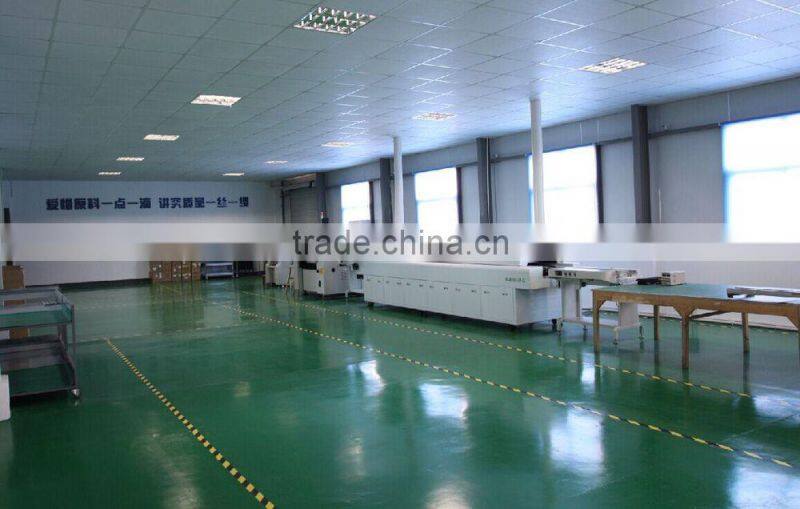

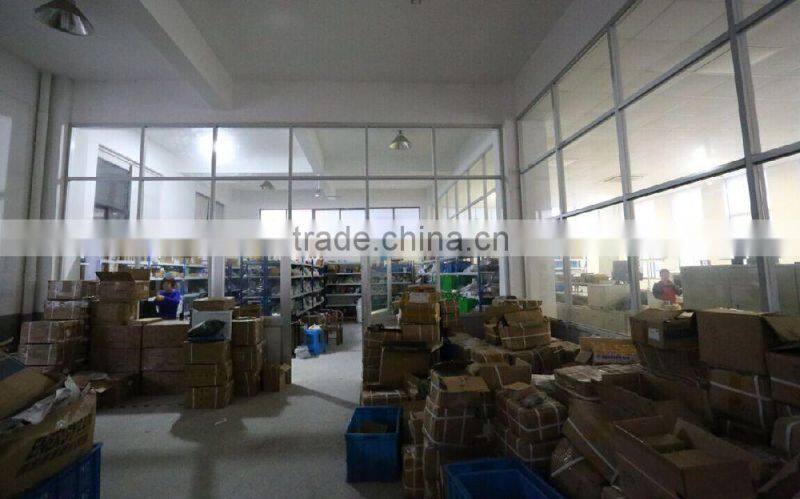

Factory is located in Ninghai County Ningbo City Zhejiang Province China.
