Home > Electrical & Electronics > Electrical Control System > Schneider VAMP40 Protection Module

Schneider VAMP40 Protection Module

Schneider VAMP40 Protection Module thumbnail-3

Schneider VAMP40 Protection Module thumbnail-4

Schneider VAMP40 Protection Module photo-1

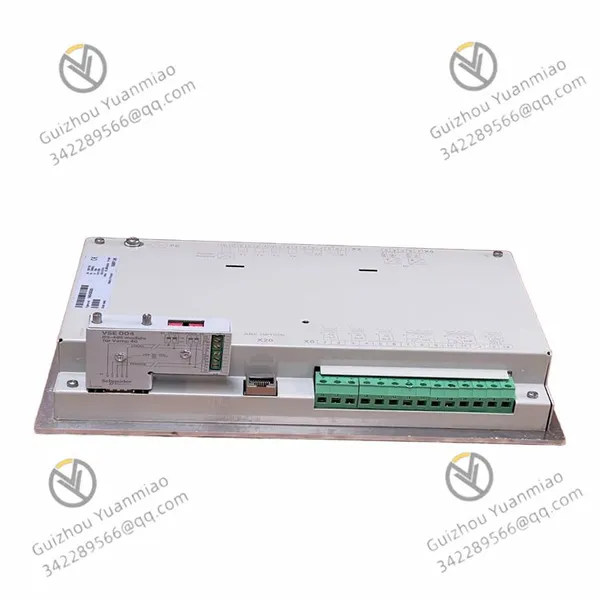

Schneider VAMP40 Protection Module photo-2

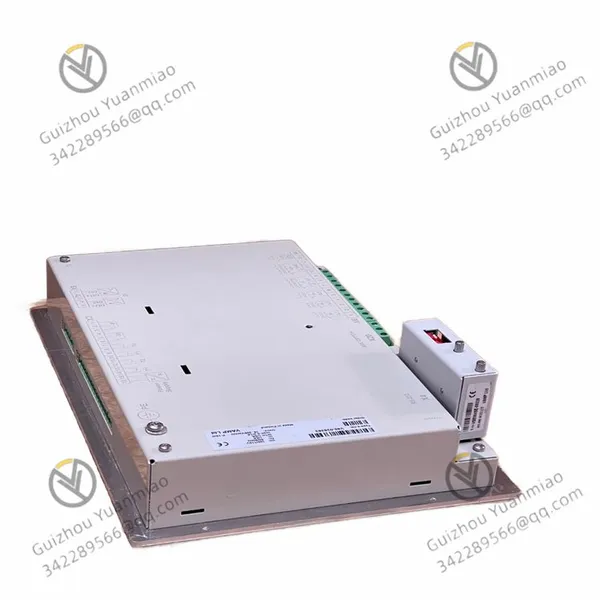

Schneider VAMP40 Protection Module photo-3

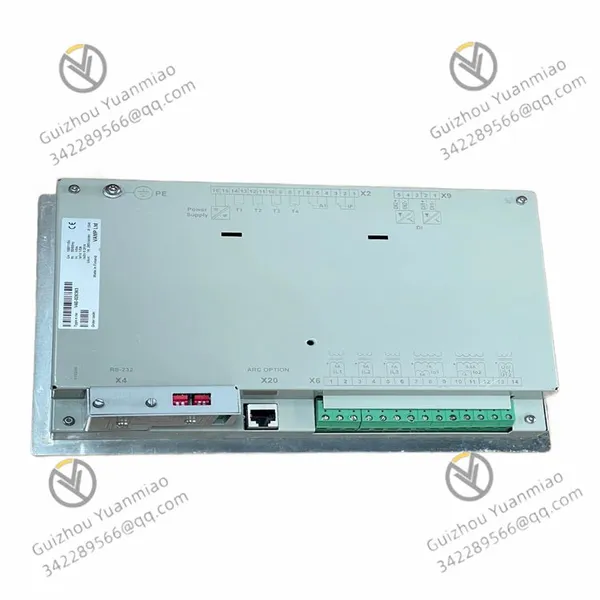

Schneider VAMP40 Protection Module photo-4

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

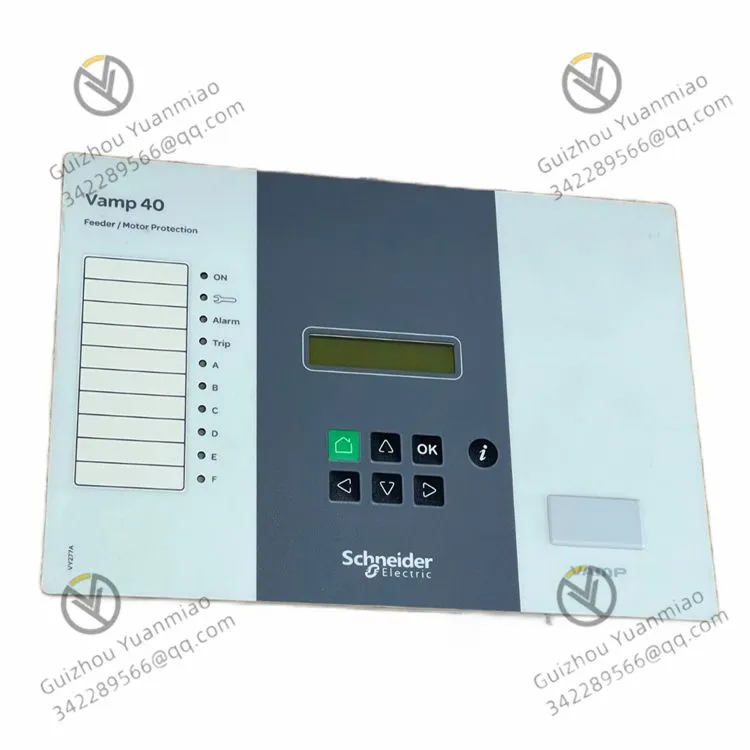

Schneider VAMP40 protection module

The Schneider VAMP40 module is a component of the VAMP 50 series, designed for medium-voltage feeder, motor, and capacitor bank protection. Below is a detailed introduction:

Functional Features

Diverse Protection Functions: Provides protection against short circuits, overcurrent, and other faults, enabling selective protection for motor control centers, motor cables and terminals, asynchronous motors, etc.
Comprehensive Measurement Capabilities: Measures parameters such as phase current and residual current, residual/line/phase voltage, frequency, current imbalance, maximum demand, negative-sequence current, active and reactive power, etc. It also monitors 15th harmonics, total harmonic distortion (THD) of current and voltage, as well as voltage sags and swells.
Rapid Arc Flash Protection: Equipped with a unique integrated arc fault protection function. When controlled by arc protection, it achieves a total operating time of 7ms for multiple circuit breakers, ensuring the safety of equipment and personnel.
Complete Recording Functions: After a fault occurs, it provides 200 sequence-of-events records, fault value records, and disturbance records to facilitate fault analysis.

Product Characteristics

Rich Communication Protocols: Supports various communication protocols, including IEC 60870-5-101, IEC 60870-5-103, Modbus TCP, Modbus RTU, Profibus DP, TCP/IP, Spa-bus, DNP 3.0, and IEC 61850, enabling seamless communication with other devices and systems.
Easy Configuration: Parameters and settings can be configured via the free Vamp Set software, allowing users to easily meet their protection and control requirements.
Wide Power Adaptability: Features a broad auxiliary power range of 19–265V AC/DC, 50/60Hz, suitable for various installation scenarios.
Compact Design: Adopts a slim housing with limited installation depth, making it ideal for space-constrained applications.

Application CasesApplication in Power Plant Bus Protection

In power plants, busbars connect numerous electrical devices, and an arc flash fault can lead to severe consequences. The VAMP40 module leverages its rapid arc flash detection and protection functions to monitor the busbar area in real time. When an arc flash fault occurs on the busbar, it acts promptly to cut off the faulty circuit, protecting the busbar and connected equipment, minimizing equipment damage and power outage scope, and ensuring the safe and stable operation of the power plant. For example, a large thermal power plant installed VAMP40 modules in its busbar protection system, successfully addressing multiple arc flash risks caused by insulation aging without leading to large-scale power outages.

Application in Industrial Motor Protection

The VAMP40 module is used for industrial motor protection, providing comprehensive protection for motors controlled by asynchronous circuit breakers. In a steel plant, for instance, its large motors may fail due to various reasons. The VAMP40 module real-time monitors parameters such as motor current and voltage, sending alarm signals or cutting off the power immediately in case of anomalies. Additionally, its arc flash protection function safeguards motor junction boxes and switchgear, ensuring the safety of motors and related equipment and reducing production interruptions caused by motor failures.

Application in Marine Platform Power Distribution Systems

Marine platforms have harsh environments and extremely high reliability requirements for electrical equipment. The VAMP40 module's compact shape and wide power adaptability make it well-suited to the space constraints and complex power conditions of marine platforms. It protects cable feeders, motors, etc., on the platform by real-time monitoring line current, voltage, frequency, and other parameters, detecting and protecting against faults promptly. Its arc flash protection function also effectively addresses potential arc flash faults, ensuring the stable operation of the marine platform's power distribution system and providing reliable power support for production and daily activities on the platform.

Application in Urban Distribution Network Overhead Feeder Protection

Overhead feeders in urban distribution networks are widely distributed and susceptible to external factors such as tree branches touching wires or foreign objects causing faults. The VAMP40 module can be installed in the switching equipment of overhead feeders to monitor lines in real time. When faults such as overcurrent or arc flash occur, the module acts quickly to cut off the faulty line, preventing the fault from expanding, ensuring the power supply reliability of the urban distribution network, and reducing power outage time for residents and enterprises. For example, after a city applied VAMP40 modules to the overhead feeders of its distribution network in certain areas, the number of power outages caused by faults significantly decreased.

Product Tags: VAMP40
