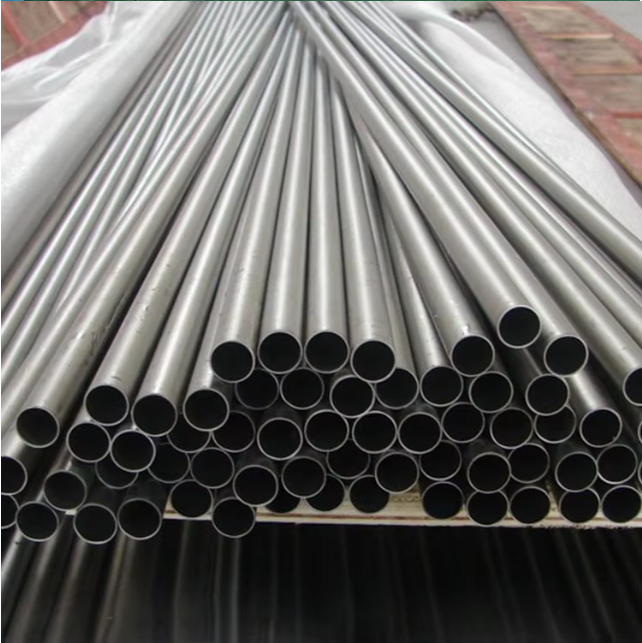

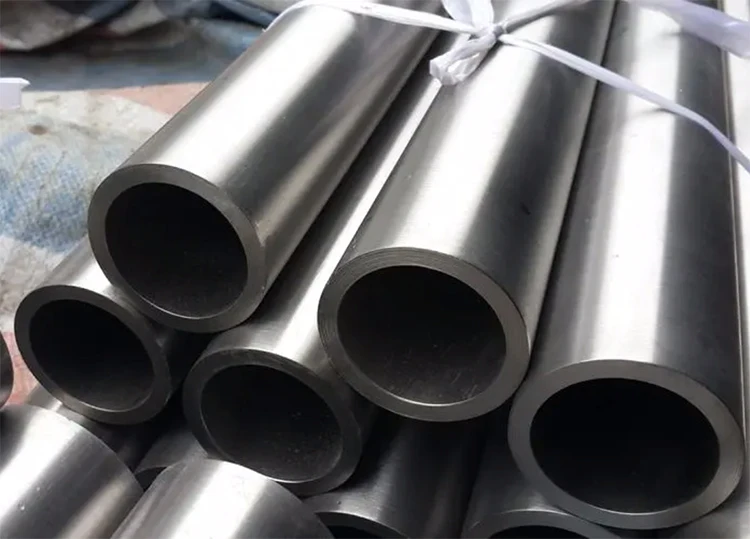

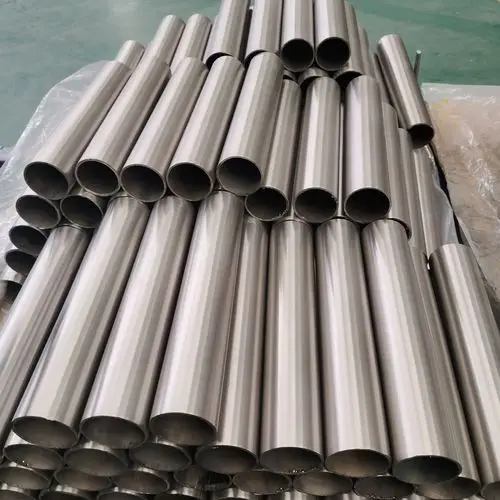

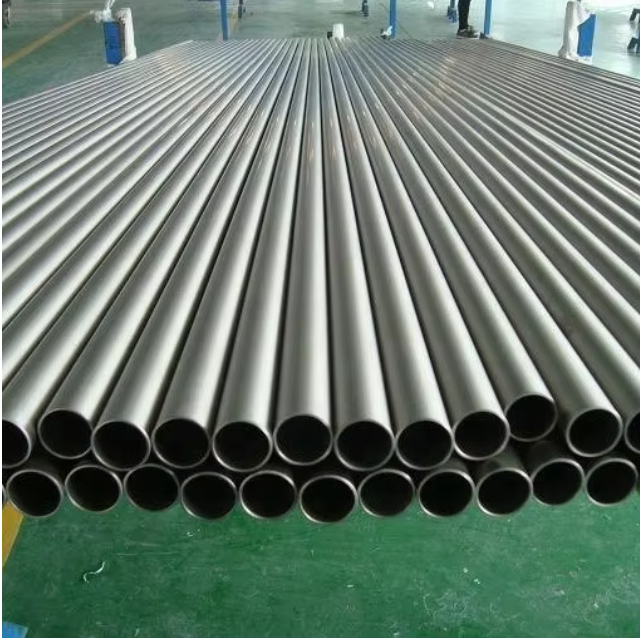

GR.2 Titanium Alloy Tube 12m Seamless Round Pipe for Drill Oil Pipelines API Compliant Welding Service Available

Zhongzheng Stainless Steel Co., Ltd.
1Yr
GR.2 Titanium Alloy Tube 12m Seamless Round Pipe for Drill Oil Pipelines API Compliant Welding Service Available thumbnail-1
GR.2 Titanium Alloy Tube 12m Seamless Round Pipe for Drill Oil Pipelines API Compliant Welding Service Available thumbnail-2
GR.2 Titanium Alloy Tube 12m Seamless Round Pipe for Drill Oil Pipelines API Compliant Welding Service Available thumbnail-3
GR.2 Titanium Alloy Tube 12m Seamless Round Pipe for Drill Oil Pipelines API Compliant Welding Service Available thumbnail-4
GR.2 Titanium Alloy Tube 12m Seamless Round Pipe for Drill Oil Pipelines API Compliant Welding Service Available thumbnail-5
GR.2 Titanium Alloy Tube 12m Seamless Round Pipe for Drill Oil Pipelines API Compliant Welding Service Available photo-1
GR.2 Titanium Alloy Tube 12m Seamless Round Pipe for Drill Oil Pipelines API Compliant Welding Service Available photo-2
GR.2 Titanium Alloy Tube 12m Seamless Round Pipe for Drill Oil Pipelines API Compliant Welding Service Available photo-3
GR.2 Titanium Alloy Tube 12m Seamless Round Pipe for Drill Oil Pipelines API Compliant Welding Service Available photo-4
GR.2 Titanium Alloy Tube 12m Seamless Round Pipe for Drill Oil Pipelines API Compliant Welding Service Available photo-5
Negotiable MOQ: 100000 Tons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
TA2 Titanium Alloy
Shape:
Tube
Color:
Silver
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material TA2 Titanium Alloy
Shape Tube
Color Silver
Surface Treatment Anodizing
Transport Package Standard Packing
Specification 0.5-22mm
Origin CHINA

Key attributes

Industry-specific attributes
Standard
ASTM B338 B337 B861 B862
Other attributes
Place of Origin
 China


Model Number
Gr1, Gr2, Gr3, Gr4 Gr5
Material
titanium
Outer Diameter
as request
Length
≤12000
Application
Industrial Heat Exchanger
Technique
seamless
Grade
titanium
Wall Thickness
0.5-22mm
Inside Diameter
2.5~150mm
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Product name
Titanium seamless pipe tube
Packing
Standard Packing
Color
Customizable
Price Term
FOB CIF CFR CNF
Sample
Availabled
Payment
T/T, LC
Delivery time
7-10 days
Packaging and delivery
Selling units
Single item
Single package size
10X10X10 cm
Single gross weight
5.000 kg

Product Description

Titanium Pipe Seamless Tube





Titanium pipe and Titanium tube

Grade : Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23
Standard: ASTM B337,ASTM B338,ASTM B861
Specifications :
1.Dimensions
A).Seamless titanium tube range:
OD:2.0mm-219mm
WT:0.3mm-120mm
Length:<18000mm
Material:Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, Gr12, Gr16,Gr17, Gr23
B).Welded titanium tube range:
OD:6mm-219mm
WT:0.5mm-10mm
Length:<18000mm
Material: Gr1,Gr2,Gr3,Gr5,Gr9

NameSize(MM)Grade
Seamless TubesOD(3~114)×(0.2~6.0)×LGr1,Gr2,Gr3,Gr4,Gr5,
Gr7,Gr11,Gr23etc
Welded TubesOD (10~40)×(0.5~5.0)×L
Extruded TubesOD (25~210)×(6.0~30)×L



Titanium Seamless Tube

Specifications

ProductATitanium Pipe seamless pipe
Size

Cold-rolled:

OD: 8.0mm-114.0mm (0.32"-4.49"), WT: 0.5mm-7.5mm (0.02"-0.30"), Length: 4000mm (157.5") max (OD.: 8.0mm-15.0mm, 0.32"-0.59"), 12000mm (472.4") max (OD. over 15mm, 0.59")factory price  1.5mm 1.6mm 40mm titanium seamless pipe tube

Extruded:

OD: 25mm-210mm (0.98"-8.27"), WT: 4mm-30mm (0.157"-1.18"), Length: 1000mm-10000mm (39.4"-393.7")

MaterialGr.1, Gr.2, Gr.3, Gr.7, Gr.9, Gr.12, etc.
StandardASTM B 338, ASTM B 337, ASTM B 861
ShapeRound

Specific dimension for cold-rilled tubes & pipes:

OD(mm)8.0-10.010.0-15.015.0-20.020.0-25.025.0-30.030.0-35.0
WT(mm)0.15-2.00.2-2.00.4-2.70.45-3.20.45-3.30.45-3.4
OD(mm)35.0-40.041.0-45.046.0-50.051.0-55.056.0-60.061.0-65.0
WT(mm)0.5-3.50.6-3.80.6-3.80.6-4.40.8-4.60.9-4.7
OD(mm)66.0-70.0>71.0-75.0>76.0-95.096.0-114.0

WT(mm)1.0-4.91.2-6.0>1.2-7.11.3-7.5



High Quality Titanium Tube ASTM B338 Titanium Pipes

wechat_2025-06-26_121427_534

wechat_2025-06-26_121421_846

Related Products

浙江中正宣传册-管子1_03

The titanium seamless tube shall be made from hollow billet by any cold drawing or cold reducing process with a continuous periphery in all stages of manufacturing operation. The titanium welded tube shall be made from annealed, flat-rolled plates by an automatic arc-welding or other welding process. Titanium welded tubes and pipes can be used in heat exchangers and condensers, all kinds of corrosive fluid transmission pipeline system, Titanium bicycle tube, automobile exhaust pipe and offshore aquaculture, etc..

Products Description

Titanium pipe and Titanium tube Grade: Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23Standard: ASTM B337,ASTM B338,ASTM B861Specifications:1.DimensionsA).Seamless titanium tube range:OD:2.0mm-219mm WT:0.3mm-120mm Length:<18000mm Material:Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, Gr12, Gr16,Gr17, Gr23B).Welded titanium tube range:OD:6mm-219mm WT:0.5mm-10mm Length:<18000mm

Material: Gr1,Gr2,Gr3,Gr5,Gr9


FAQ

1. How can I get a quotation from you ?

You can leave us message, and we will reply every message in time.  Or we may talk on line by Trademanager.

2. Will you delivery the goods on time?

Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.

3. What is your payment terms?

Our usual payment term is 30% deposite, and rest against B/L.  L/C is also acceptatble.EXW,FOB,CFR,CIF.

4. Do you accept the third party inspection?Yes absolutely we accept.

Please feel free to leave us message if you have any question about us and our products!
