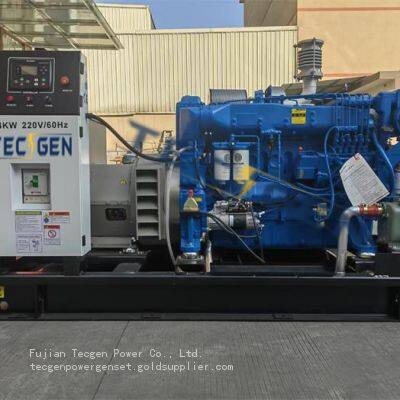

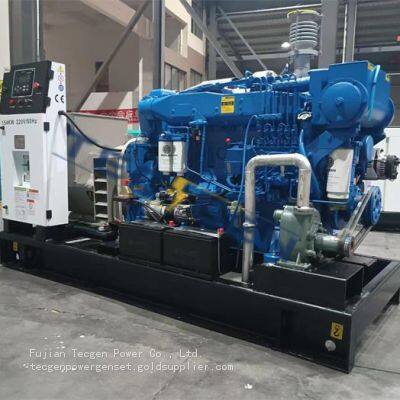

60Hz 154kW Marine Diesel Generator Weichai Marine Diesel Genset Vessel Operation
Key usage of Weichai marine diesel generators:
Power Generation: Marine diesel generators are used to generate electrical power for various onboard systems and equipment, including lighting, navigation instruments, communication devices, refrigeration systems, pumps, and other machinery.
Main Propulsion: In some cases, marine diesel generators are utilized as the main propulsion system on smaller vessels or as auxiliary propulsion on larger ships. These generators power electric motors that drive the propellers, providing thrust for propulsion.
Emergency Backup: Marine diesel generators serve as essential backup power sources in case of main engine failure or during emergencies. They ensure the continuous operation of critical systems, such as safety equipment, essential communications, and navigation aids.
Remote Locations: Marine diesel generators are crucial in providing power in remote and offshore locations where connection to a land-based electrical grid is not feasible. They enable self-sufficiency and independence for extended periods at sea or in isolated areas.
Vessel Types: Marine diesel generators are used in various types of vessels, including cargo ships, passenger vessels, fishing boats, tugboats, yachts, naval vessels, research vessels, and offshore drilling platforms. The size and capacity of the generator depend on the specific power requirements of the vessel.
Durability and Reliability: Marine diesel generators are built to withstand the harsh marine environment, including exposure to saltwater, vibrations, and fluctuations in temperature and humidity. They are designed to provide reliable power for extended periods, ensuring the smooth operation of onboard systems.
Regulatory Compliance: Marine diesel generators must adhere to international regulations and standards set by organizations such as the International Maritime Organization (IMO). These regulations aim to reduce emissions, improve fuel efficiency, and ensure the safety of marine operations.
Overall, marine diesel generators play a critical role in powering vessels, providing essential electrical energy for various systems, propulsion, and emergency backup, enabling safe and efficient marine operations.
154kW MARINE GENERATOR SET TECHNICAL DATA:
Marine Diesel Generator Set |
Prime Power Fuel Consumption |
||
Genset Model |
TG212WCMD6 |
100% |
42.2 L/hr |
Frequency/Voltage |
60Hz / 220V |
75% |
31.6 L/hr |
Phase |
3 |
50% |
21.1 L/hr |
Prime Power |
154kW/193kVA |
Dimension |
|
Standby Power |
169kW/212kVA |
Dimension |
Open Type |
Engine Make /Model |
Weichai WP10CD200E221 |
Length (L) |
2500mm |
Alternator Make /Model |
Brushless, self-exciting |
Width (W) |
1050mm |
Control Panel |
DEIF SGC-420 |
Height (H) |
1700mm |
Base Frame / Silent Canopy |
Robust Structure/ Corrosion Resistant |
Optional |
|
Circuit Breaker Type |
3pole MCCB (4P Available as option) |
Stamford |
|
Built in Base Fuel Tank Capacity |
8-12hrs |
Battery Charger and ATS |
|
Silent sound level |
75 dB(@7m) |
Water Heater |
|
Battery |
Maintenance free Lead Acid |
Daily fuel tank |
|
Weichai Marine Engine |
Alternator |
||
Engine Brand /Model |
Weichai WP10CD200E221 |
Number of phase |
3 |
Fuel injection system |
Direct Inject |
Power factor (Cos Phi) |
0.8 |
No. of cylinders |
6 |
Poles |
4 |
Bore |
126mm |
Winding Connections (standard) |
Star-series |
Stroke |
130mm |
Terminals |
12 |
Compression ratio |
17.0:1 |
Insulation type |
H class |
Displacement |
9.726L |
Winding Pitch |
2/3 |
Engine speed |
1800 rpm |
IP rating |
IP23 |
Rated power |
182KW |
Excitation system |
Brushless,Self-excited |
Intake type |
Turbocharged |
Bearing |
Double bearing |
Cooling method |
Forced water cooling |
Voltage regulation |
±1% |
Governor |
Mechanical Or Electronic |
Altitude |
≤1000 |
Start motor |
12V |
Coupling |
Flexible disc |
Controller Panel | |||
DEIF SGC-420 | |||
Genset Functions | |||
Start/stop sequences |
Input for genset alternator voltage or D+ charging alternator |
Input for fuel reference selection |
Fuel theft alarm |
Counters, including |
Engine running hours |
Maintenance |
Idle speed contro |
Start attempts |
Running hours |
Automatic fuel transfer |
|
Maintenance |
Genset and mains energy |
Mains support (voltage and frequency) |
|
General functions | |||
Analogue current and voltage input |
Analogue resistive inputs |
Digital switch input |
Digital outputs |
Event logs with real-time clock |
EEPROM for extended event logs |
Cyclic timer |
Automatically clear warning alarms |
2-level password protection |
|||
Display and language functions | |||
Supports multiple languages |
Graphical display |
Parameters can be changed on the display |
Buttons on the display for breaker operation |
Display views change automatically after an adjustable delay time |
LED lamps |
||
Running modes | |||
Manual |
Auto |
Test |
|
Modes of operation | |||
Island |
Automatic mains failure (AMF) |
Remote start/stop |
Auto exercise |
Cyclic |
Site battery monitoring and shelter temperature |
Night restriction mode |
Engine drive |
Site battery monitoring |
Shelter temperature monitoring |
Differential input (± 60 V DC) for site battery voltage |
|
Communication | |||
RS-485 for Modbus |
USB interface to PC |
CAN |
|
Generator protections | |||
Under-voltage |
Over-voltage |
Under-frequency |
Over-frequency |
Unbalanced load |
Over-current |
Overload |
Low load |
Reverse power |
Phase reversal detection |
Earth leakage/Fan current |
Under-speed |
Over-speed |
Configurable crank |
Battery monitoring |
Charging alternator |
Pre-heat |
Coolant temperature |
Lube oil pressure |
Fuel level detection |
Fuel theft detection |
ECU communication failure |
ECU diagnostic lamps |
Site battery |

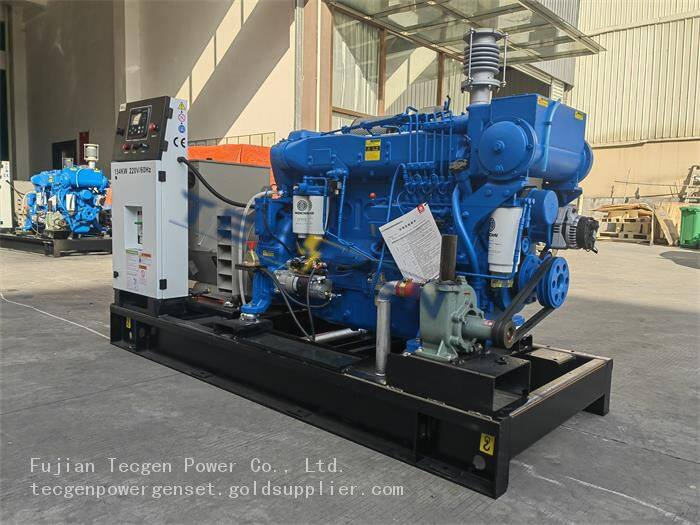

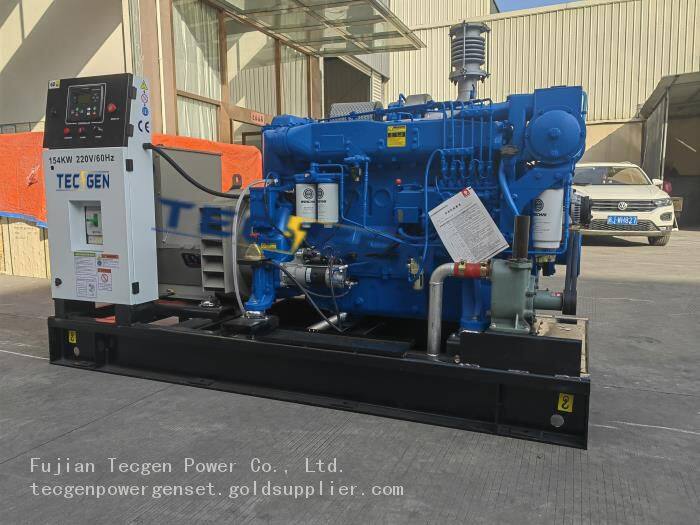

154kW Weichai Marine Diesel Generator:
Customization Options: The 154kW Weichai Marine Diesel Generator offers a range of customization options to meet specific customer requirements. These options include different control panel choices, output voltage configurations, and other customizable features, allowing the generator to be fully tailored to the vessel's electrical system and needs.
Intelligent Control System: The generator is equipped with an advanced intelligent control system, enabling remote monitoring and remote operation. This system collects real-time data through sensors, including voltage, current, frequency, running time, and other parameters, providing detailed operational status and performance information for convenient monitoring and fault diagnosis.
Low Noise and Vibration: The 154kW Weichai Marine Diesel Generator incorporates advanced noise reduction and vibration isolation technologies, ensuring minimal noise and vibration during operation. This makes the generator quieter and reduces interference with other equipment and personnel onboard the vessel.
Multiple Protection Mechanisms: The generator is equipped with multiple protection mechanisms, including overspeed protection, low oil pressure protection, high-temperature protection, and more, ensuring the safety and reliability of the generator during operation. These protection mechanisms monitor and respond to abnormal conditions promptly, preventing generator damage or failure.
Remote Monitoring and Maintenance: The Weichai Marine Diesel Generator can be equipped with remote monitoring and maintenance capabilities, allowing users to remotely monitor and manage the generator's operational status and performance. This feature enables users to access real-time information about the generator and perform remote fault diagnosis and maintenance operations when needed, reducing the need for on-site maintenance on the vessel.
Global Service Network: Weichai has an extensive global service network, providing users with convenient access to professional technical support and maintenance services. Regardless of the vessel's location, Weichai's service network ensures availability and efficient maintenance of the generator.
These are the additional details about the 154kW Weichai Marine Diesel Generator. The customization options, intelligent control system, low noise and vibration, multiple protection mechanisms, and remote monitoring and maintenance capabilities make it a reliable power solution for various marine applications. Whether it's commercial ships, fishing vessels, or yachts, the 154kW Weichai Marine Diesel Generator can meet power demands and ensure the safe and reliable operation of the vessel.
