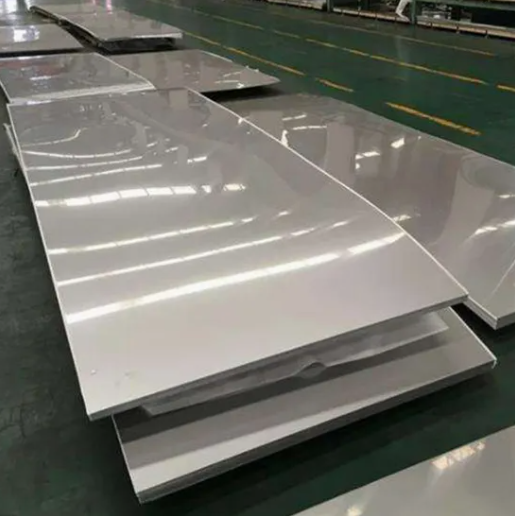

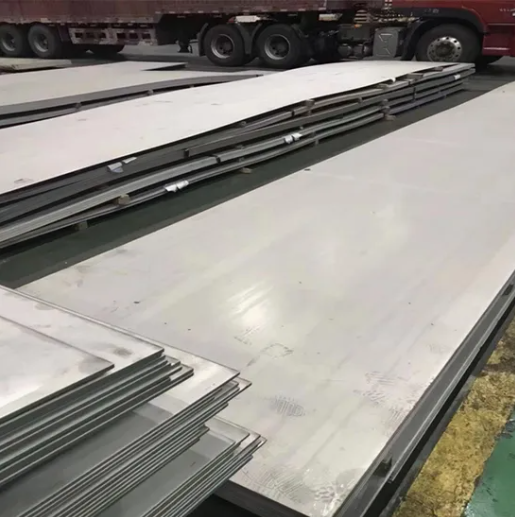

EU Genera Factory Price Hastelloy C-2000 N06200 2.4675 Hot Rolled Carbon Copper Hastelloy Plate/Sheet
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Seamless
Technique:
Cold Rolled
Surface Treatment:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
8 days
Related Products
-
ASTM A240/A240m SUS630 0Cr17Ni4Cu4Nb Heat Resistance at Higher Temperatures Corrosion Resistance Seamless Stainless Steel PipeNegotiableMOQ: 100000 Tons -
A179 A192 A213 A333 En10219 DIN 1626 DIN 17175 Steel Tube for Chemical Power Shipping IndustrialNegotiableMOQ: 100000 Tons
-
A179 A192 A213 A333 En10219 DIN 1626 DIN 17175 Steel Tube for Chemical Power Shipping IndustrialNegotiableMOQ: 100000 Tons
-
Quality-Assured Carbon Steel Welded Pipe ISO 9001 CertifiedNegotiableMOQ: 100000 Tons
-
Seamless /Aluminum /Galvanized/Black Mild/Copper /Carbon/ Welded/Square/Alloy/Titanium /Nickel/Magnesium/ Hastelloy/Stainless Steel PipeNegotiableMOQ: 100000 Tons
Type
Seamless
Technique
Cold Rolled
Surface Treatment
Other
Material
Stainless steel
Section Shape
Round
Basic Info.
Model NO.
UNS N06200/W. Nr. 2.4675/Hastelloy C2000
Purity
Min 72%
Alloy
Alloy
Type
Nickel Plate
Powder
Powder
Thickness
0.2-100mm
Width
Normally 1000mm/1219mm/1500mm
Length
Normally 2000mm/2438mm/6000mm
Mtc
En 10204/3.1
Keyword
Hastelloy C2000 Price
Trademark
ZYTC
Origin
Tianjin, China
HS Code
75062000
Production Capacity
500 Tons/Month
Product Description
Designed to resist an extensive range of corrosive chemicals, including sulfuric, hydrochloric, and hydrofluoric acids
Unlike previous Ni-Cr-Mo alloys, which were optimized for use in either oxidizing or reducing acids, C-2000 alloy extends corrosion resistance in both types of environments
The combination of molybdenum and copper (at levels of 16 and 1.6 wt. %, respectively) provide outstanding resistance to reducing media, while oxidizing acid resistance is provided by a high chromium content (23 wt. %).
Hastelloy C-2000 Specifications:
| Trademark | GB | GOST | ASTM | UNS | DIN | W.Nr. | NF |
| Hastelloy C-2000 | NS3405 | - | Hastelloy C-2000 | N06200 | NiCr23Mo16Cu | 2.4675 | - |
Hastelloy C-2000 Product Forms and Standards:
| Rod, Bar, Wire and Forgings | ASTM B462, ASTM B472, ASTM B564, ASTM B574, ASME SB462, ASME SB472, ASME SB564, ASME SB574 |
| Plate, Sheet and Strip | ASTM B575, ASME SB575 |
| Pipe and Tube | ASTM B619, ASTM B622, ASTM B626, ASME SB619, ASME SB622, ASME SB626 |
| Welding Product | AWS A5.14 ERNiCrMo-17, ASME SFA-5.14 ERNiCrMo-17, ASME F-No.43 |
| Others | ASTM B366, ASTM B462, ASME SB366, ASME SB462, DIN 17744 |
Hastelloy C-2000 Chemical Compositions:
| Alloy | C | Si | Mn | P | S | Cr | Ni | Co | Mo | Al | Cu | Fe |
| Hastelloy C-2000 | ≤0.01 |
≤0.08 |
≤0.50 | ≤0.025 | ≤0.010 | 22.0-24.0 | Bal | ≤2.0 | 15.0-17.0 | ≤0.50 | 1.3-1.9 | 17.0-20.0 |
Hastelloy C-2000 Mechanical Properties (RT, Solution annealed)
| Density, g/cm3 | Melting Point, ºC | Tensile Strength, MPa | Yield Strength, MPa | ELongation, % | Hardness, HB |
| 8.50 | 1328-1358 |
760 |
363 | 64 | - |
Hastelloy C-2000 Application:
Chemical process industry reactors, heat exchangers, columns, and piping
Pharmaceutical industry reactors and dryers
Flue gas desulfurization systems
| Nickel Sheet | |
| Thickness | 0.3mm - 6.0mm |
| Width | 1000mm - 2200mm |
| Length | Produce as requirement |
| Nickel Plate | |
| Thickness | 3.0mm - 300mm |
| Width | 1000mm - 3000mm |
| Length | Produce as requirement |
| Nickel Strip / Nickel Foil | |
| Thickness | 0.02mm - 16.0mm |
| Width | 5mm - 900mm |
| Nickel Coil | |
| Thickness | 0.3mm - 16.0mm |
| Width | 1000mm - 3000mm |
| Nickel Pipe | |
| Outside Diameter | 6.0mm - 1219mm |
| Thickness | 0.5mm - 100mm |
| Nickel Capillary Pipe | |
| Outside Diameter | 0.5mm - 6.0mm |
| Thickness | 0.05mm - 2.0mm |
| Nickel Bar | |
| Diameter | Ф4mm - Ф600mm |
| Nickel Wire Rod | |
| Diameter | Ф0.01mm - Ф6.0mm |
| Material Classification | |
| Inconel | Inconel 722, Inconel 725, Inconel X-750, Inconel 625, Inconel 686, Inconel 690, Inconel 702, Inconel 706, Inconel 713C, Inconel 600, Inconel 601, Inconel 602CA, Inconel 617, Inconel 718. |
| Incoloy | Incoloy 945, Incoloy A-286, Incoloy 901, Incoloy 903, Incoloy 907, Incoloy 909, Incoloy 925, Incoloy 926, Incoloy 330, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 801, Incoloy 840, Incoloy 20, Incoloy 205, Incoloy 208 |
| Hastelloy | Hastelloy C 276, Hastelloy G, Hastelloy W, Hastelloy X, Hastelloy G-30, Hastelloy G-35, Hastelloy G3, Hastelloy N, Hastelloy S, B-2, Hastelloy B-3, Hastelloy C2000, Hastelloy C22 |
| Haynes | Haynes 75, Haynes 244, Haynes 25, Haynes 263, Haynes 282, Haynes 556, Haynes 188, Haynes 230, Haynes 233, Haynes 242 |
| Monel | Monel 400, Monel K-500, Monel R405, Monel 401, Monel 404, Monel 405. |
| Nimonic | Nimonic 91, Nimonic C263, Nimonic PE11, Nimonic PE16, Nimonic PK33, Nimonic 80A, Nimonic 96, Nimonic 90, Nimonic 901, Nimonic 105, Nimonic 115 |
| Other Nickel | Waspaloy, Multimet N155, Mumetal 80, Rene 41, Kovar, Maraging 250, Maraging 300, Maraging 350, MP159, MP35N, Alloy 46, Alloy 48, Alloy 52, Alloy 42, Alloy 45, Cobalt alloy 6b, Custom 455, Invar 36, Invar 42, Nickel 200, Nickel 201 |
Specifications
| Nickel Sheet | |
| Thickness | 0.3mm - 6.0mm |
| Width | 1000mm - 2200mm |
| Length | Produce as requirement |
| Nickel Plate | |
| Thickness | 3.0mm - 300mm |
| Width | 1000mm - 3000mm |
| Length | Produce as requirement |
| Nickel Strip / Nickel Foil | |
| Thickness | 0.02mm - 16.0mm |
| Width | 5mm - 900mm |
| Nickel Coil | |
| Thickness | 0.3mm - 16.0mm |
| Width | 1000mm - 3000mm |
| Nickel Pipe | |
| Outside Diameter | 6.0mm - 1219mm |
| Thickness | 0.5mm - 100mm |
| Nickel Capillary Pipe | |
| Outside Diameter | 0.5mm - 6.0mm |
| Thickness | 0.05mm - 2.0mm |
| Nickel Bar | |
| Diameter | Ф4mm - Ф600mm |
| Nickel Wire Rod | |
| Diameter | Ф0.01mm - Ф6.0mm |
Chemical Component
Inconel Alloy
Item |
600 |
601 |
617 |
625 |
690 |
718 |
X750 |
825 |
C |
≤0.15 |
≤0.1 |
0.05-0.15 |
≤0.1 |
≤0.05 |
≤0.08 |
≤0.08 |
≤0.05 |
Mn |
≤1 |
≤1.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.35 |
≤1 |
≤1 |
Fe |
6-10 |
rest |
≤3 |
rest |
7-11 |
rest |
5-9 |
≥22 |
P |
≤0.015 |
≤0.02 |
≤0.015 |
-- |
-- |
-- |
-- |
-- |
S |
≤0.015 |
≤0.015 |
≤0.015 |
≤0.015 |
≤0.015 |
≤0.01 |
≤0.01 |
≤0.03 |
Si |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.35 |
≤0.5 |
≤0.5 |
Cu |
≤0.5 |
≤1 |
-- |
≤0.3 |
≤0.5 |
≤0.3 |
≤0.5 |
1.5-3 |
Ni |
≥72 |
58-63 |
≥44.5 |
50-55 |
≥58 |
50-55 |
≥70 |
38-46 |
Co |
-- |
-- |
10-15 |
≤10 |
-- |
≤1 |
≤1 |
-- |
Al |
-- |
1-1.7 |
0.8-1.5 |
≤0.8 |
-- |
0.2-0.8 |
0.4-1 |
≤0.2 |
Ti |
-- |
-- |
≤0.6 |
≤1.15 |
-- |
-- |
2.25-2.75 |
0.6-1.2 |
Cr |
14-17 |
21-25 |
20-24 |
17-21 |
27-31 |
17-21 |
14-17 |
19.5-23.5 |
Nb+Ta |
-- |
-- |
-- |
4.75-5.5 |
-- |
4.75-5.5 |
0.7-1.2 |
-- |
Mo |
-- |
-- |
8-10 |
2.8-3.3 |
-- |
2.8-3.3 |
-- |
2.5-3.5 |
B |
-- |
-- |
≤0.006 |
-- |
-- |
-- |
-- |
-- |
Incoloy Alloy
Grade |
800 |
800H |
800HT |
825 |
925 | |
Chemical
Composition
(%)
|
C |
≤0.1 | 0.05-0.1 | 0.06-0.1 | ≤0.05 | ≤0.03 |
| Mn | ≤1.5 | ≤1.5 | ≤1.5 | ≤1 | ≤1 | |
| Fe | rest | rest | rest | rest | rest | |
P |
-- | -- | -- | ≤0.02 | ≤0.03 | |
S |
≤0.015 | ≤0.015 | ≤0.015 | ≤0.03 | ≤0.03 | |
Si |
≤1 | ≤1 | ≤1 | ≤0.5 | ≤0.5 | |
Cu |
≤0.75 | ≤0.75 | ≤0.75 | 1.5-3 | 1.5-3 | |
Ni |
30-35 | 30-35 | 30-35 | 38-46 | 42-46 | |
Al |
0.15-0.6 | 0.15-0.6 | 0.15-0.6 | 0.2-1 | 0.15-0.5 | |
Ti |
0.15-0.6 | 0.15-0.6 | 0.15-0.6 | 0.6-1.2 | 1.9-2.4 | |
| Cr | 19-23 | 19-23 | 19-23 | 19.5-23.5 | 19.5-23.5 | |
| Mo | -- | -- | -- | 2.5-3.5 | 2.5-3.5 | |
Hastelloy Alloy
Grade |
C276 |
C22 |
C4 |
B2 |
B3 | N | |
Chemical
Composition
(%)
|
C |
≤0.01 |
≤0.015 |
≤0.015 |
≤0.02 |
≤0.01 | 0.04-0.08 |
Mn |
≤1 | ≤0.5 | ≤1 | ≤1 | ≤3 | ≤1 | |
Fe |
4-7 | 2-6 | ≤3 | ≤2 | ≤1.5 | ≤5 | |
P |
≤0.04 | ≤0.02 | ≤0.04 | ≤0.04 | -- | ≤0.015 | |
S |
≤0.03 | ≤0.02 | ≤0.03 | ≤0.03 | -- | ≤0.02 | |
Si |
≤0.08 | ≤0.08 | ≤0.08 | ≤0.1 | ≤0.1 | ≤1 | |
Ni |
rest | rest | rest | rest | ≥65 | rest | |
Co |
≤2.5 | ≤2.5 | ≤2 | ≤1 | ≤3 | ≤0.2 | |
Ti+Cu |
-- | -- | ≤0.7 | -- | ≤0.4 | ≤0.35 | |
Al+Ti |
-- | -- | -- | -- | ≤0.5 | ≤0.5 | |
| Cr | 14.5-16.5 | 20-22.5 | 14-18 | ≤1 | ≤1.5 | 6-8 | |
| Mo | 15-17 | 12.5-14.5 | 14-17 | 26-30 | ≤28.5 | 15-18 | |
| B | -- | -- | -- | -- | -- | ≤0.01 | |
| W | 3-4.5 | 2.5-3.5 | -- | -- | ≤3 | ≤0.5 | |
| V | ≤0.35 | ≤0.35 | -- | 0.2-0.4 | -- | ≤0.5 | |
| Inconel | Inconel 722, Inconel 725, Inconel X-750, Inconel 625, Inconel 686, Inconel 690, Inconel 702, Inconel 706, Inconel 713C, Inconel 600, Inconel 601, Inconel 602CA, Inconel 617, Inconel 718. |
| Incoloy | Incoloy 945, Incoloy A-286, Incoloy 901, Incoloy 903, Incoloy 907, Incoloy 909, Incoloy 925, Incoloy 926, Incoloy 330, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 801, Incoloy 840, Incoloy 20, Incoloy 205, Incoloy 208 |
| Hastelloy | Hastelloy C 276, Hastelloy G, Hastelloy W, Hastelloy X, Hastelloy G-30, Hastelloy G-35, Hastelloy G3, Hastelloy N, Hastelloy S, B-2, Hastelloy B-3, Hastelloy C2000, Hastelloy C22 |
| Haynes | Haynes 75, Haynes 244, Haynes 25, Haynes 263, Haynes 282, Haynes 556, Haynes 188, Haynes 230, Haynes 233, Haynes 242 |
| Monel | Monel 400, Monel K-500, Monel R405, Monel 401, Monel 404, Monel 405. |
| Nimonic | Nimonic 91, Nimonic C263, Nimonic PE11, Nimonic PE16, Nimonic PK33, Nimonic 80A, Nimonic 96, Nimonic 90, Nimonic 901, Nimonic 105, Nimonic 115 |
| Other Nickel | Waspaloy, Multimet N155, Mumetal 80, Rene 41, Kovar, Maraging 250, Maraging 300, Maraging 350, MP159, MP35N, Alloy 46, Alloy 48, Alloy 52, Alloy 42, Alloy 45, Cobalt alloy 6b, Custom 455, Invar 36, Invar 42, Nickel 200, Nickel 201 |
