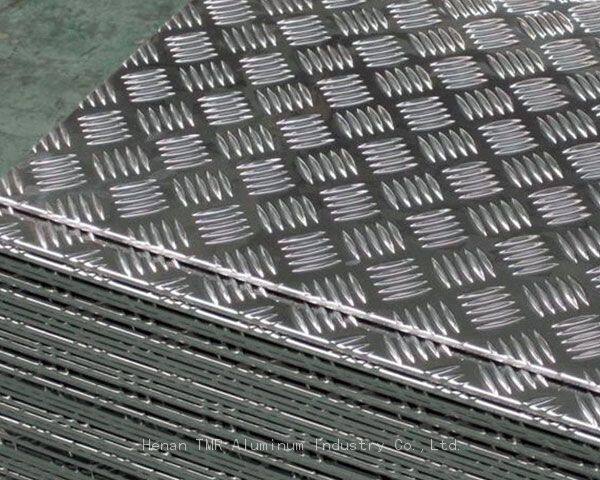

Marine & Construction 5 Bar Aluminum Checker Plate – Corrosion-Resistant Tread Sheet for Decks & Walkways
A high-performance 5-bar tread plate designed for marine decks, industrial walkways, and construction platforms, offering superior anti-slip properties, saltwater corrosion resistance, and structural durability. The raised 5-bar pattern ensures OSHA-compliant traction, while the marine-grade alloy (5083/5052) withstands harsh environments. Ideal for shipbuilding, offshore platforms, and heavy-duty flooring.
Key Parameters
| Attribute | Specification |
|---|---|
| Material | 5083-H116 / 5052-H32 (Mg-alloyed for marine/construction use) |
| Thickness | 0.4–8mm (Customizable) |
| Width | 10–2300mm (Standard: 1200/1500/2000mm) |
| Length | Up to 12,000mm (Pre-cut or coiled) |

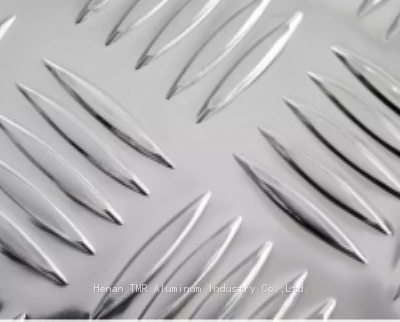

| Pattern | 5-bar embossed (Height: 1.0–1.5mm, Spacing: 25–30mm) |
| Surface Finish | Mill finish (standard), Anodized (AA15–25μm), or PVDF-coated |
| Certifications | ISO 9001, ASTM B209, EN 485, DNV/CCS (marine) |
| MOQ | 1 ton (Bulk discounts for 5+ tons) |
Features & Benefits
Marine-Grade Corrosion Resistance: 5083 alloy (4.5% Mg) excels in saltwater environments.
High Load-Bearing Capacity: Tensile strength up to 270 MPa (5083-H116) for heavy-duty use.
Non-Slip Safety: 5-bar pattern meets EN 13845 slip-resistance standards.
Lightweight & Fabrication-Friendly: 30% lighter than steel, weldable/cuttable.
Applications
Marine: Ship decks, gangways, dock flooring.
Construction: Mezzanine floors, stair treads, scaffolding.

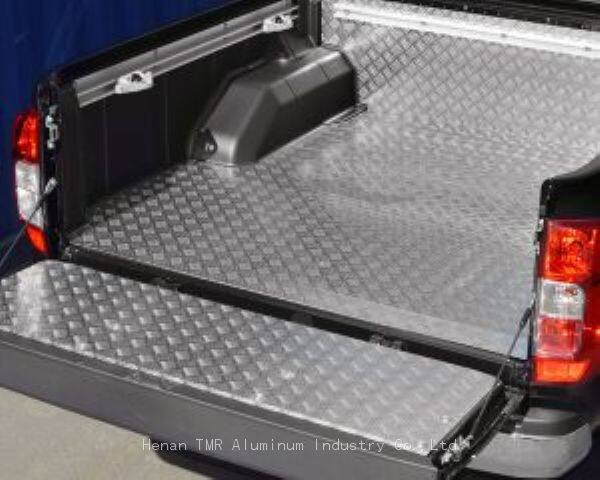

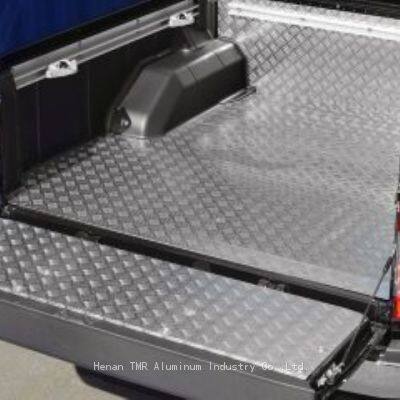

Transport: Truck/trailer liners, RV steps.
