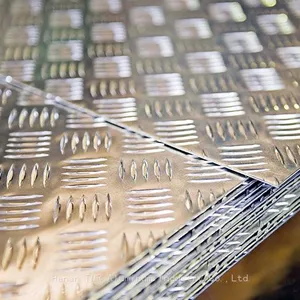

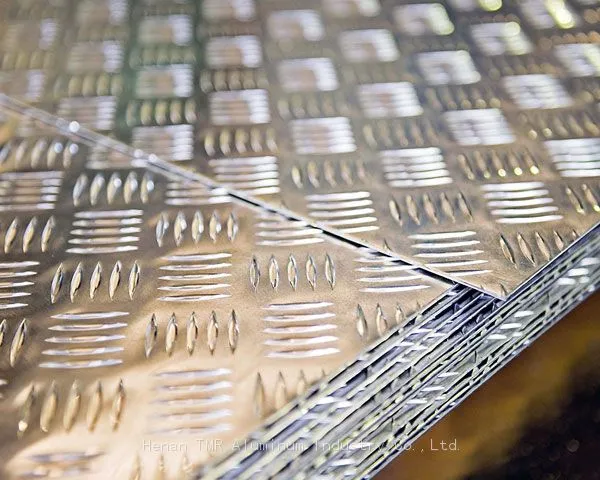

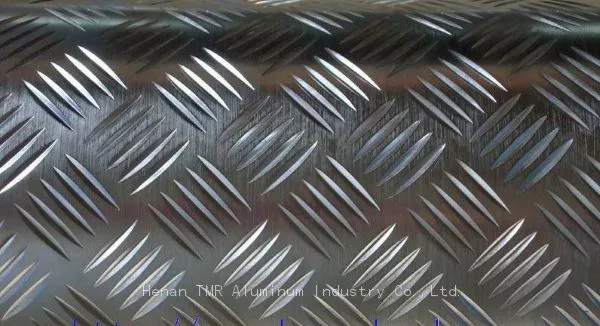

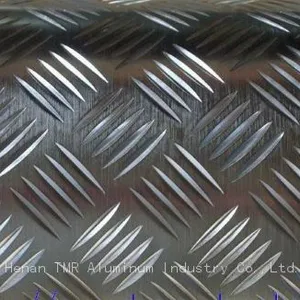

3003 H14 5-Bar Aluminum Tread Plate is a manganese-alloyed aluminum sheet (1.0–1.5% Mn) featuring a 5-bar embossed pattern for superior anti-slip performance. Its lightweight, corrosion-resistant, and formable properties make it ideal for marine, industrial, and architectural applications.
Key FeaturesMaterial: 3003 aluminum alloy (enhanced strength vs. pure aluminum, excellent weldability).
Surface: 5-bar embossed pattern (height: 0.8–2.0mm) for slip resistance.
Temper: H14 (half-hard, stabilized, optimal for flooring).
Certifications: ISO 9001, ASTM B209, EN 485, DNV/GL (marine compliance).
Technical Parameters
| Parameter | Specification |
|---|---|
| Width | 10–2300mm (customizable) |
| Thickness | 0.4–8mm (excl. pattern height) |
| Pattern Height | 0.8–2.0mm (varies with thickness) |
| Tensile Strength | 145–200 MPa (H14 temper) |
| Elongation | 10–15% (H14) |
Surface TreatmentsMill Finish: Standard untreated surface (Ra 0.8–3.2μm roughness).
Anodized: Enhanced corrosion resistance + color options (5–25μm).
PE/PVDF Coated: UV/chemical-resistant for outdoor/marine use (25–50μm).
Polished: Decorative finish for architectural cladding (Ra ≤0.8μm).
Alloy Composition (3003)
| Element | Content (%) |
|---|---|
| Al | ≥98.0 |
| Mn | 1.0–1.5 |
| Fe | ≤0.7 |
| Si | ≤0.6 |
| Cu | ≤0.2 |
Manufacturing ProcessHot Rolling: 400–500°C for initial forming (>6mm thickness).
Cold Rolling: Precision thickness control (0.4–6mm).
Embossing: 100–200 tons pressure for 5-bar pattern.
Heat Treatment: Stabilization at 150–200°C (H14 temper).
Applications
Marine: Ship decks, offshore walkways (saltwater-resistant).
Industrial: Chemical plant flooring, safety walkways (H14 for durability).
Architectural: Facades, wall cladding (polished for aesthetics).
