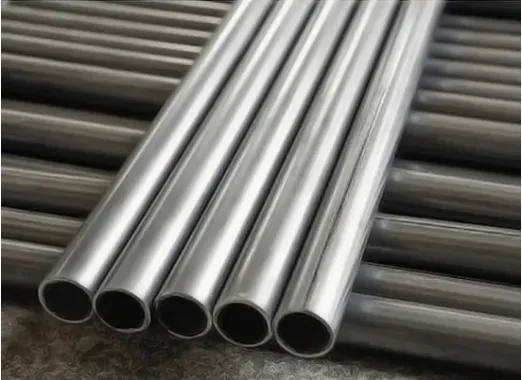

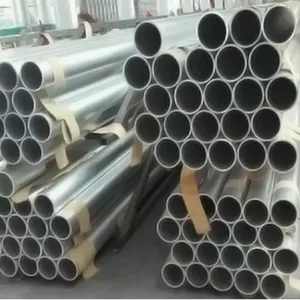

Premium - Grade Seamless Stainless Steel Pipe ASTM A213 TP304L: Engineered for Superior Performance
US$ 1200 - 1800
MOQ: 1 Ton
Key Specifications
Get Latest Price
Type:
Stainless Steel Pipes
Certification:
Other
Shape:
Round
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
8 days
Related Products
-
ASTM 304/321/316 Bright Annealing Pipe Round ERW Tubing Cold Drawn Honed Stainless Steel Welded Round Tube Inox 6.02mmNegotiableMOQ: 1 Ton -
Bpe Stainless Steel Seamless Insulation Polished Surface Bright Annealing Round Tube for SaleNegotiableMOQ: 1 Ton
-
Universal Across Nine Countries Hastelloy C22 Uns N06022 Cold Rolled Plate (FM9)NegotiableMOQ: 1 Ton
-
Universal Across Nine Countries Hastelloy Uns N10665/Uns N10675/Uns N10276/Uns N06455/Uns N06022/Uns N06985 Wire/Strip/Rod/Pipe/SheetNegotiableMOQ: 1 Ton
-
SHS RHS Welded Steel ZheJiang Manufacture ERW Iron Pipe 6 Meter Metal Square Tube Ms Carbon Iron Pipe Steel PipesNegotiableMOQ: 100000 Tons
Type
Stainless Steel Pipes
Certification
Other
Shape
Round
Grade
Other
Technique
Cold Rolled
Surface Treatment
Polished
Standard
Other
Duplex Steel
904L, 2205, 2507, 2101, 2520, 2304
Origin
China
| Product | Stainless Steel Pipe |
| Standard | ASTM, GB, JIS, DIN, EN, AISI |
| Steel Grade | 200 Series: 201,202 300 Series: 301,304,304L,316,316L,316Ti,309,310,317,321 400 Series: 409,410,420,430,436,444,441,440c Duplex Steel: 904L,2205,2507,2101,2520,2304 |
| Wall Thickness | 0.5mm-40mm |
| Outer Diameter | Seamless: 6mm-630mm; Welded: 10mm-2000mm. Square: 10x10-300x300mm. Rectangular: 10x20-600x800mm. |
| Length | 5800mm, 6000mm, as required. |
| Manufacturing Method | Cold Rolled, Hot Rolled |
| Surface | Primary, Bright Polished, Hairline, Mirror |
| Shape | Round, Square, Rectangular, Oval |
| Seam | Seamless, Welded (ERW,EFW,Seamless,Spiral Welded) |
| Color | Golden, Champagne gold, Rose gold, Bronze, Brass, etc. As required. |
| MOQ | 1 Ton |
| Free Samples | Available |
| Package | Seaworthy packing. |
| Leading time | Usually 7-15 days, if in stock 1-3 days. |
| Payment terms | T/T 30% for deposit. 70% balance before shipment |
| Delivery Terms | FOB/CIF/CFR/EXW |
| Raw Material Source | Tisco, Baosteel, Qingshan or as Your Request |
| Standard | ASTM A213/A312/A376/A279 /A789/A790/A450/A999ETC |
| Grade | TP 304,TP304L,TP316/316L/316TI |
| TP 309S,310S | |
| TP 347/347H,TP321/321H | |
| TP904L | |
| S31803,S32205,S32304,S32750 | |
| SAF2205,SAF2304,SAF2507 | |
| MOQ | 1 PCS |
| Manfacturing Method | Cold Drawing/Welding/Cold rolled |
| Outside Diameter Range | 6mm-508mm |
| Wall Thickness Range | 1mm-40mm |
| Length Range | 1M-12M |
| Pipe end | BE/PE |
| Chemical Composition and Mechanical Property | ||||||||||||||
| Chemical components | Mechanical Property | |||||||||||||
| Grade | C | Mn | P | S | Si | Cr | Ni | Yield | Tensile | Elongation | ||||
| Strength | strength | |||||||||||||
| (MPa) | (MPa) | % | ||||||||||||
| Max. | Max. | Max. | Max. | Max. | Min. | Max. | Min. | Max. | Max. | Min. | Max. | Min. | Min | |
| TP 304 | 0.08 | 2.00 | 0.05 | 0.03 | 1.00 | 18.00 | 20.00 | 8.00 | 11.0. | 540 | 515 | 240 | 205 | 35 |
| TP 304L | 0.04 | 2.00 | 0.05 | 0.03 | 1.00 | 18.00 | 20.00 | 8.00 | 12.00 | 485 | 170 | 35 | ||
| TP 309S | 0.08 | 2.00 | 0.05 | 0.03 | 1.00 | 22.00 | 24.00 | 12.00 | 15.00 | 600 | 515 | 310 | 205 | 35 |
| TP 310S | 0.08 | 2.00 | 0.05 | 0.03 | 1.00 | 24.00 | 26.00 | 19.00 | 22.00 | 515 | 205 | 35 | ||
| TP 316 | 0.08 | 2.00 | 0.05 | 0.03 | 1.00 | 16.00 | 18.00 | 10.00 | 14.00 | 515 | 450 | 205 | 200 | 35 |
| TP 316L | 0.04 | 2.00 | 0.05 | 0.03 | 1.00 | 16.00 | 18.00 | 10.00 | 14.00 | 485 | 170 | 35 | ||
Dimension Tolerance
| Permitted Variations in Wall Thickness | ||||||||
| Wall Thickness % | ||||||||
| Outside Diameter in. (mm) | 0.095(2.4) and under | Over 0.095 to 0.150 (2.4 to 3.8) incl | Over 0.150 to 0.0180 (3.8 to 4.6) incl | Over 0.180 (4.6) | ||||
| Over | Under | Over | Under | Over | Under | Over | Under | |
| Seamless, Hot-Finished Tubes | ||||||||
| 4(100)and under | 40 | 0 | 35 | 0 | 33 | 0 | 28 | 0 |
| Over 4(100) | 35 | 0 | 33 | 0 | 28 | 0 | ||
| Seamless, Cold-Finished Tubes | ||||||||
| Over | Under | |||||||
| 1½ (38.1) and under | 20 | 0 | ||||||
| Over 1½ (38.1) | 22 | 0 | ||||||
| Welded Tubes | ||||||||
| All sizes | 18 | 0 | ||||||
| Permitted Variations in Outside Diameter | ||
| Specified Outside Diameter | Permitted Variations in (mm) | |
| in(mm) | Over | Under |
| Hot-Finished Seamless Tubes | ||
| 4(100) or under | 1/64 (0.4) | 1/32 (0.8) |
| Over 4 to 7 ½ (100 to 200) incl | 1/64 (0.4) | 3/64 (1.2) |
| Over 7 ½ to 9 (200 to 225) incl | 1/64 (0.4) | 1/16 (1.6) |
| Welded Tubes and Cold-Finished Seamless Tubes | ||
| Under 1(25) | 0.004 (0.1) | 0.004 (0.1) |
| 1 to 1½ (25 to 40) incl | 0.006 (0.15) | 0.006 (0.15) |
| Over 1½ to 2 (40 to 50) excl | 0.008 (0.2) | 0.008 (0.2) |
| 2 to 2½ (50 to 65) excl | 0.010 (0.25) | 0.010 (0.25) |
| 2½ to 3 (65 to 75) excl | 0.012 (0.3) | 0.012 (0.3) |
| 3 to 4 (75 to 100) incl | 0.015 (0.38) | 0.015 (0.38) |
| Over 4 to 7 ½ (100 to 200) incl | 0.015 (0.38) | 0.025 (0.64) |
| Over 7 ½ to 9 (200 to 225) incl | 0.015 (0.38) | 0..045 (1.14) |
Stainless steel seamless steel pipe is a kind of long steel with hollow section and no seams around. It is a steel pipe that is resistant to corrosion by weak corrosive media such as air, steam, water and chemical-impregnating media such as acid, alkali and salt. It is also known as stainless acid-resistant steel pipe.
Stainless steel seamless pipe is resistant to air, steam, water and other weak corrosive media and acid, alkali, salt and other chemical corrosive media corrosion of the steel pipe. Also known as stainless acid-resistant steel pipe.
The corrosion resistance of stainless steel seamless pipe depends on the alloying elements contained in the steel. Chromium is the basic element that enables stainless steel to obtain corrosion resistance, when the chromium content of the steel reaches about 12%, chromium and oxygen in the corrosive medium, the role of the steel surface to form a very thin layer of oxidative film (self-passivation film), which prevents further corrosion of the steel matrix. In addition to chromium, stainless steel seamless tube commonly used alloying elements are nickel, molybdenum, titanium, niobium, copper, nitrogen and so on, in order to meet the requirements of a variety of uses on the organisation and properties of stainless steel.
Stainless steel seamless pipe is resistant to air, steam, water and other weak corrosive media and acid, alkali, salt and other chemical corrosive media corrosion of the steel pipe. Also known as stainless acid-resistant steel pipe.
The corrosion resistance of stainless steel seamless pipe depends on the alloying elements contained in the steel. Chromium is the basic element that enables stainless steel to obtain corrosion resistance, when the chromium content of the steel reaches about 12%, chromium and oxygen in the corrosive medium, the role of the steel surface to form a very thin layer of oxidative film (self-passivation film), which prevents further corrosion of the steel matrix. In addition to chromium, stainless steel seamless tube commonly used alloying elements are nickel, molybdenum, titanium, niobium, copper, nitrogen and so on, in order to meet the requirements of a variety of uses on the organisation and properties of stainless steel.
Standard:
GB/T 14976 -- Chinese National Standard
EN10216-5 -- European Union standard
ASME SA312 -- American Society of Mechanical Engineers (ASME) standards
Main production steel pipe grades:
TP304H,TP316L,TP347H,TP321H,TP310S,SAF2507,SAF2205,SAF2304
Usage:
Stainless steel seamless pipe is widely used in petroleum, chemical, medical, food, light industry, machinery and instrumentation and other industrial pipelines and mechanical structural components. In addition, it is lighter in weight when the bending and torsion strength are the same, so it is also widely used in the manufacture of mechanical parts and engineering structures. It is also commonly used for the production of various conventional weapons, gun barrels, artillery shells and so on.
