Help CenterNickel Alloy Stainless Pipe Hastelloy C 276 N10276 Hastelloy C 22 N06022 Stainless Steel Seamless Pipe for Architectural Decoration Industry
Related Products
-
N10276 Hastelloy C-276 C22 Seamless Welded Pipe for IndustryNegotiableMOQ: 1 Ton -
Hot Sales Nickel-Based Alloy Tube Stainless Steel Seamless Pipe Hastelloy B3 N10675 Hastelloy C 276 N10276NegotiableMOQ: 1 Ton
-
Nickel Hastelloy Alloy C-22 Uns N06022 High Performance Stainless Steel Alloy PipesNegotiableMOQ: 1 Ton
-
Hastelloy B/B-2 C-22 C-276 Alloy Steel Tube Uns N06022 Nickel Alloy PipeNegotiableMOQ: 1 Ton
-
Factory Price Stretch Stamping/Nickel Based Alloy/Manufacture Medical Devices C-22 N06022 Nickel Base Alloy Steel Pipe/TubeNegotiableMOQ: 1 Ton
Basic Info.
Model NO.
KM-81
Material
Alloy Steel
Surface Treatment
Polished
Usage
Pipeline Transport, Hydraulic/Automobile Pipe, Machinery Industry, Chemical Industry, Construction & Decoration, Special Purpose
Section Shape
Round
Lenght
3~12m or as Required
MOQ
500kgs
Certificate
ISO ,Ce,SGS,BV
Surface
Annealing, Pickling, Polishing, Bright, Sand Blas
Delivery Times
15 Days
Thickness
Sch5s~Sch160,Xxs
Transport Package
Standard Export Sea-Worthy Packing
Specification
1/2"~64"
Trademark
KINGMETAL
Origin
Chinese Main Port
Production Capacity
1000 Tons / Month
Product Description
Hastelloy C276 Seamless/Welded steel Pipe
Alloy C276 Pipe Specification |
ASTM B 622 ASME SB 622 / ASTM B 619 ASME SB 619 |
Hastelloy C276 Seamless Pipe size |
4 to 219mm W. T.: 0.5 to 20mm |
Alloy C276 Seamless Tube Size |
3.35 mm OD To 101.6 mm OD |
Hastelloy C276 Welded Pipe size |
5.0 mm - 1219.2 mm |
ASTM B619 N10276 Welded Tube Size |
6.35 mm OD To 152 mm OD |
UNS N10276 Pipe Schedule |
SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, |
Hastelloy Pipe & Tube Form |
Round, Square, Hollow, Rectangular, Hydraulic, Straight Pipes or 'U' bent Tubes, |
C276 Hastelloy Alloy Pipe & Tube End |
Plain End, Beveled End, Treaded. |
ASME SB626 Hastelloy C276 Pipe Length |
Single Random, Double Random & Cut Length. |
Origin |
China |
Marking |
All Hastelloy Pipes & Tubes are marked as follows: Standard, Grade, |
Hastelloy Pipe Finish |
Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
Material Test Certificates (MTC) |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2 |
Test |
· Chemical Analysis - Spectro Analysis · Hardness Test · Intergranular Corrosion (IGC) Test · Pitting Resistance Test · Flattening Test · Flaring Test · Mechanical Testing Such as Tensile of Area · Positive Material Identification - PMI Testing · Micro and MacroTest |
Hastelloy pipe Specialized in |
Large Diameter Alloy C276 Pipe |
Hastelloy alloy C-276 UNS N10276/W.Nr. 2.4819 Standard |
ASTM B619, ASTM B622 / ASME SB619, ASME SB622, ASTM B 622/B 829 & ASME SB 622/SB 829 (Seamless Tube), |
Swg & Bwg |
10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
Hastelloy C276 tubing wall thickness |
0.020" -0.220", (special wall thicknesses available) |
Hastelloy C276 Tube Type |
Seamless, ERW, EFW, Welded, Fabricated |
Application |
Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger |
Value Added Service |
Draw & Expansion as per required Size & Length, Polish (Electro & |
Specialize in |
Hastelloy C276 Capillary Tube & Other Odd Size |
Test Certificate |
suppliers Test Certificate |
Equivalent Grades for Hastelloy C276 Seamless and Welded Pipes
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
EN |
OR |
Hastelloy C276 |
2.4819 |
N10276 |
NW 0276 |
- |
ХН65МВУ |
NiMo16Cr15W |
ЭП760 |
UNS N10276 Chemical Composition Alloy C276 Pipes & Tubes
Hastelloy C276 |
Ni |
C |
Mo |
Mn |
Si |
Fe |
P |
S |
Co |
Cr |
Balance |
0.010 max |
15.00 - 17.00 |
1.00 max |
0.08 max |
4.00 - 7.00 |
0.04 max |
0.03 max |
2.5 max |
14.50 - 16.50 |
GOST ХН65МВУ Mechanical & Physical Properties
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
8.89 g/cm3 |
1370 °C (2550 °F) |
Psi - 1,15,000 , MPa -790 |
Psi - 52,000 , MPa - 355 |
40 % |
Hastelloy C276 Pipe Types |
Out diameter |
Wall thickness |
Length |
NB Sizes (in stock) |
1/8" ~ 8" |
SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 |
Upto 6 Meters |
Hastelloy C276 Seamless Pipe (Custom Sizes) |
5.0mm ~ 203.2mm |
As per requirement |
Upto 6 Meters |
Hastelloy C276 Welded Pipe (in Stock + Custom Sizes) |
5.0mm ~ 1219.2mm |
1.0 ~ 15.0 mm |
Upto 6 Meters |

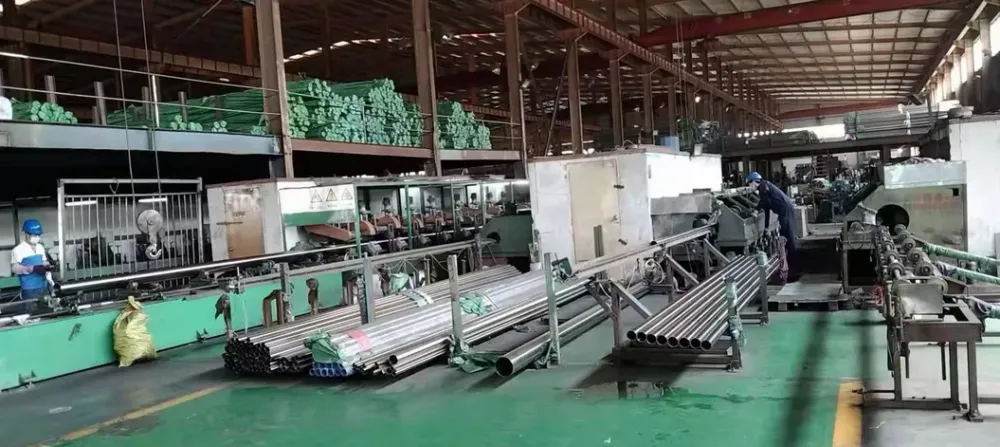

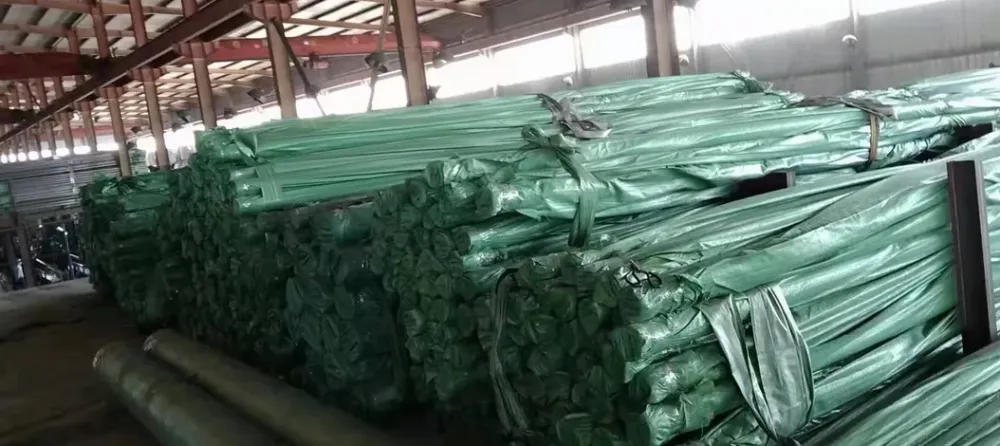

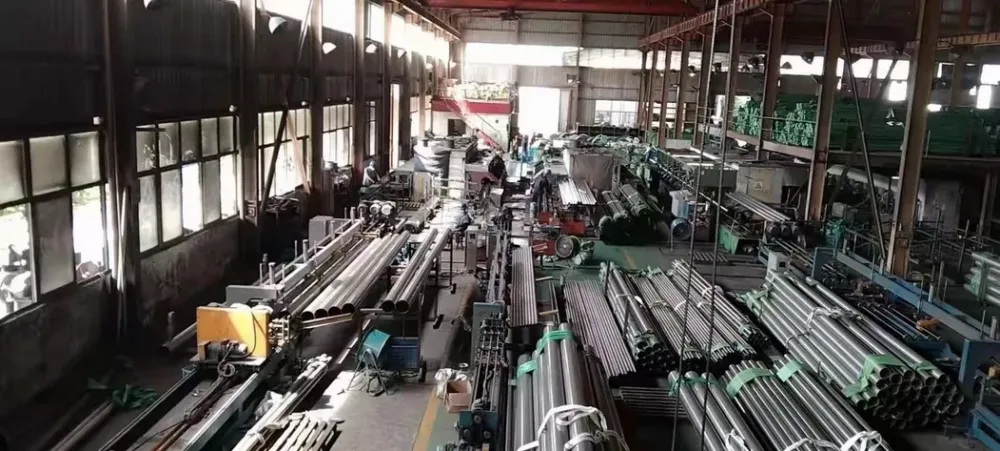

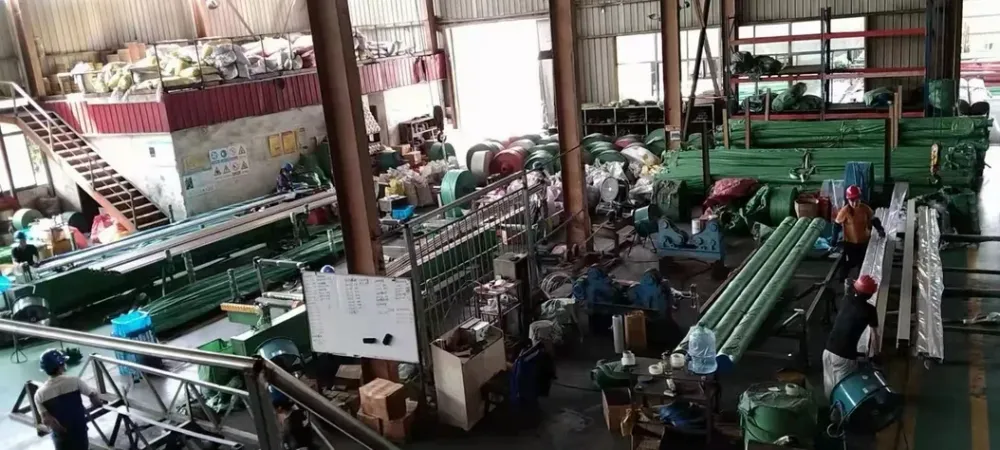

Work Shop Show

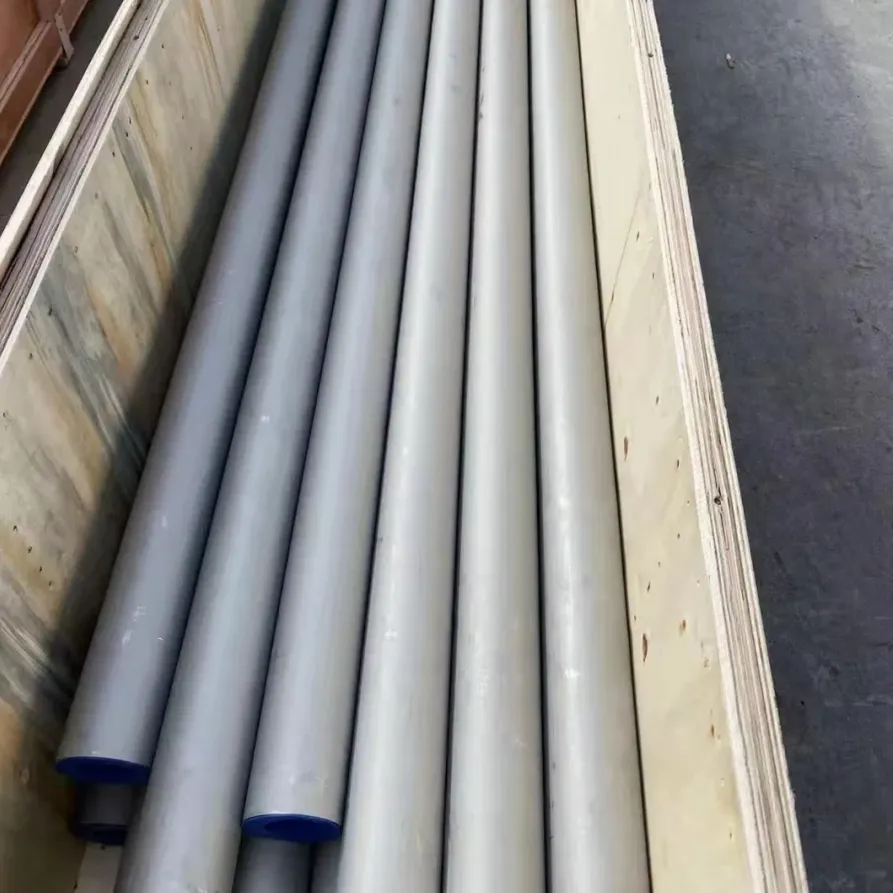

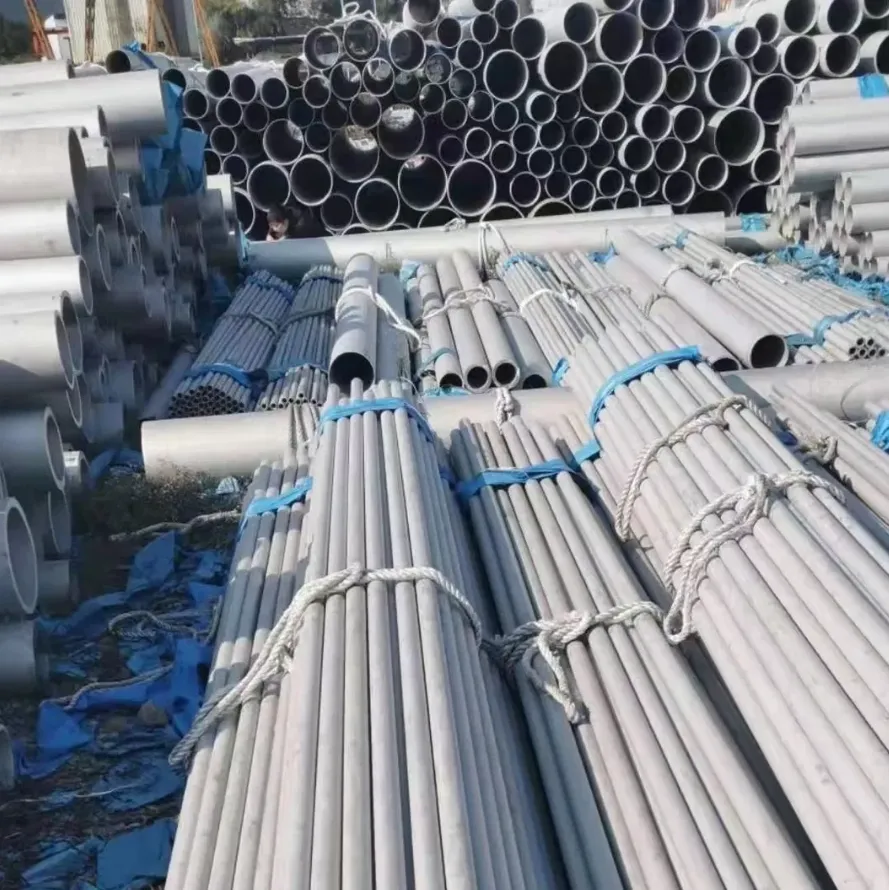

Pictures of our products
