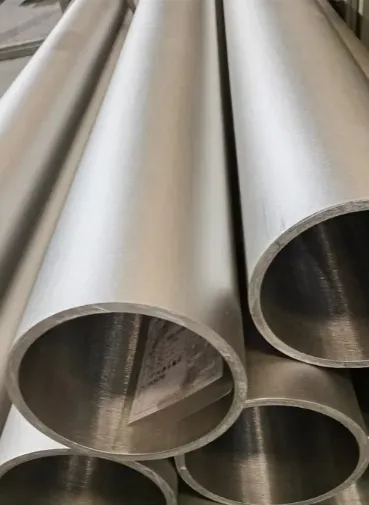

Help CenterNickel Hastelloy Alloy C-22 Uns N06022 High Performance Stainless Steel Alloy Pipes
Related Products
-
Hastelloy B/B-2 C-22 C-276 Alloy Steel Tube Uns N06022 Nickel Alloy PipeNegotiableMOQ: 1 Ton -
Factory Price Stretch Stamping/Nickel Based Alloy/Manufacture Medical Devices C-22 N06022 Nickel Base Alloy Steel Pipe/TubeNegotiableMOQ: 1 Ton
-
Uns N06022 Nickel Based Alloys Hc-22 Hastelloy C276 Seamless Welded Pipe and Fitting Tube TubingNegotiableMOQ: 1 Ton
-
Universal Across Nine Countries Hastelloy C22/Alloy 22/N06022 Nickel Alloy Pipe and Tube for Heat ExchangerNegotiableMOQ: 1 Ton
-
Universal Across Nine Countries Cold-Rolled Galvanized Hastelloy C22 N06022 Nickel Alloy Stainless Steel Seamless PipeNegotiableMOQ: 1 Ton
Material Summary
HASTELLOY C276 is a Nickel-chromium-molybdenum wrought alloy that is considered the most versatile corrosion resistant alloy available. This alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in an as welded condition. Alloy C-276 also has excellent resistance to pitting, stress-corrosion cracking and oxidizing atmospheres up to 1900°F. Alloy C-276 has exceptional resistance to a wide variety of chemical environments.
Chemical Composition
Grade |
Ni |
Cr |
Mo |
W |
C |
Si |
Co |
Mn |
V |
P |
S |
C22 |
Balance |
20.00-22.50 |
12.50-14.50 |
2.50-3.50 |
≤0.015 |
≤0.080 |
≤2.50 |
≤0.50 |
≤0.35 |
≤0.02 |
≤0.02 |
1.Element shall be determined arithmetically by difference.
Mechanical Properties
Grade |
Tensile Strength ksi(MPa) |
Yield Strength MPa |
Elongation (%) |
C22 |
≥100(690) |
≥310 |
≥45 |
Used primarily for parts requiring excellent corrosion and strong magnetic properties such as:
lead wires
battery components
transducers
sparking electrodes
heat exchangers
implantable battery anode/connector tabs for CRM and Neurostimulation devices
stamped or etched fabrications
1.generally export packing
-packed by knitting strips in bundles
2.It is suggested that the pipes OD under 25MM or Less than container shipment are packed by plywood cases, which can protect pipes better.
