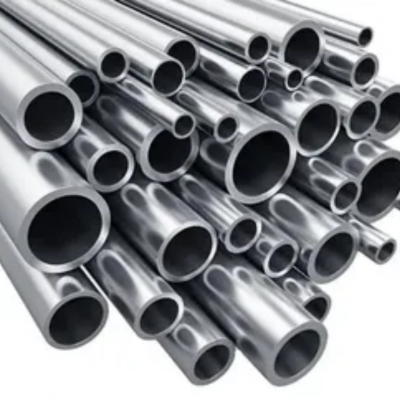

Titanium Tube Pipe/76mm Titanium Pipe/Titanium Alloy Pipe Other Models Can be Customized.

Product Description

Product Description

Pure Titanium And Titanium Alloy Sheet, Strip, Bar, Tube, Extrusion
We offers a complete range of titanium and titanium alloy mill products in sheet, strip, plate, billet, bar, rod, extrusions and tubulars. We also offer metal processing services including hot-forming (e.g super plastic forming), extrusion,seamless pipe production, water jet and saw cutting, and machining.

Product Name	Titanium
Titanium Bars/ Rods/Ingots	Ф3mm~Ф1020mm,the maximum weight is up to 12t
Titanium Slab	(80~400)mm×(~1500)mm×(~2600)mm
Titanium Forgings	Weight per piece≤2000kg
Titanium Hot-rolled plates	(4~100)mm×(800~2600)mm×(2000~12000)mm
Titanium Cold-rolled plates	(0.01~4.0)mm×(800~1560)mm×( ~6000) mm
Titanium Strips	(0.01~2.0)mm×(800~1560)mm×L
Titanium Tubes / Pipes	Ф(3~114)mm×( 0.2~5)mm × (~15000)mm
Standards	GB,GJB,ASTM,AMS,BS,DIN,DMS,JIS,ГОСт
Titanium Grade	GR1,GR2,GR3,GR5,GR7,GR12 BT1-00,BT1-0,BT1-2 BT6 BT5-1 3B BT6c  TA0,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4

Chemical Composition

Titanium	Composition Requirements, weight percent
Grade	C	O	N	H	Fe	Al	V	Pd	Ni	Mo
1	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	-	-	-
2	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	-	-	-
3	≤0.08	≤0.35	≤0.05	≤0.015	≤0.30	-	-	-	-	-
4	≤0.08	≤0.40	≤0.05	≤0.015	≤0.50	-	-	-	-	-
5	≤0.08	≤0.20	≤0.05	≤0.015	≤0.40	5.5~6.75	3.5~4.5	-	-	-
7	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	0.12~0.25	-	-
9	≤0.08	≤0.15	≤0.03	≤0.015	≤0.25	2.5~3.5	2.0~3.0	-	-	-
11	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	0.12~0.25	-	-
12	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	-	0.6~0.9	0.2~0.4
16	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	0.04~0.08	-	-
17	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	0.04~0.08	-	-
23	≤0.08	≤0.13	≤0.03	≤0.0125	≤0.25	5.5-6.5	3.5~4.5	-	-	-

Tensile Requirements

Titanium	Tensile Strength	Yield Strength	Elongation	Bend Test(Radius of Mandrel)
Grade	ksi [MPa]	0.2% offset, ksi [MPa]	in 2", %	t<1.8 mm	1.8 mm≤t<4.75 mm
1	≤35 [240]	20~45 [138~310]	24	1.5T	2T
2	≤50 [345]	40~65 [275~450]	20	2T	2.5T
3	≤65 [450]	55~80 [380~550]	18	2T	2.5T
4	≤80 [550]	70~95 [483~655]	15	2.5T	3T
5	≤130 [895]	≤120 [828]	10	4.5T	5T
7	≤50 [345]	40~65 [275~450]	20	2T	2.5T
9	≤90 [620]	≤70 [483]	15	2.5T	3T
11	≤35 [240]	20~45 [138~310]	24	1.5T	2T
12	≤70 [483]	≤50 [345]	18	2T	2.5T
16	≤50 [345]	40~65 [275~450]	20	2T	2.5T
17	≤ 35[240]	20~45 [138~310]	24	1.5T	2T
23	≤120 [828]	≤110 [759]	10	4.5T	5T

Main Products



Category	Material	Dimension(mm)	Specification
Ti & Alloy ingots & bars	CP Ti,  Ti-6Al-4V, Ti-6Al-4V Eli,  Ti-3Al-2.5V,  Ti-5Al-2.5Sn, Ti-5Al-2.5Sn Eli,  Ti-0.05Pd, Ti-0.2Pd,  Ti-6Al-7Nb,  Ti-13Nb-13Zr,  Ti-0.1Ru,  Ti-3Al-8V-6Cr-4Mo-4Zr,  Ti-6Al-4V-0.1Ru,  etc.	Standard Or Customized	GB/T 2965, ASTM B348
Ti & Alloy castings			GB/T 6614, ASTM B367
Ti & Alloy forgings			GB/T 25137, ASTM B381
Ti & Alloy plates			GB/T 3621, ASTM B265
Ti & Alloy strips & foils			GB/T 3622, ASTM B265
Cold rolled Ti & Alloy strip coils			GB/T 26723, ASTM B265
Ti & Alloy wires			GB/T 3623, ASTM B863
Ti & Alloy seamless tubes			GB/T 3624, ASTM B861
Ti & Alloy welded tubes			GB/T 26057, ASTM B862
PM Ti & Alloy components			GB/T 6887, ASTM B817

Detailed Photos

Frequently Asked Questions

Question: Can samples be sent?

Answer: Of course. We can send the samples to any part of the world. Our samples are free, but the customer needs to bear the shipping cost.

Question: What product information do I need to provide?

Answer: You need to provide the grade, width, thickness and

the tonnage you wish to purchase.

Question: What are the ports of shipment?

Answer: You can choose other ports as per your needs.

Question: Regarding the product prices?

Answer: Due to the periodic changes in raw material prices, the prices will vary over time.

Question: What certifications do your products have?

Answer: We have certifications such as ISO 9001 and EWC.

Question: How long is your delivery time?

Answer: Generally, our delivery time is 7 to 45 days. However, if the demand is extremely high or there are special circumstances, it may be delayed.

Question: Can I visit your factory?

Answer: Of course, we welcome customers from all over the world to visit our factory.

Question: Does the product undergo quality inspection before being loaded?

Answer: Of course, all of our products are subject to strict quality tests before packaging.

Question: How are the products packaged?

Answer: The inner layer is made of waterproof paper, the outer layer is wrapped in iron sheet, and they are fixed with fumigated wooden pallets. This can effectively protect the products from corrosion during long-distance transportation.

Question: What are your working hours? Answer: Generally speaking, our online service hours are from 8:00 to 22:00. After 22:00, we will respond to your inquiries on the next working day.
