Acrylic Glove Box

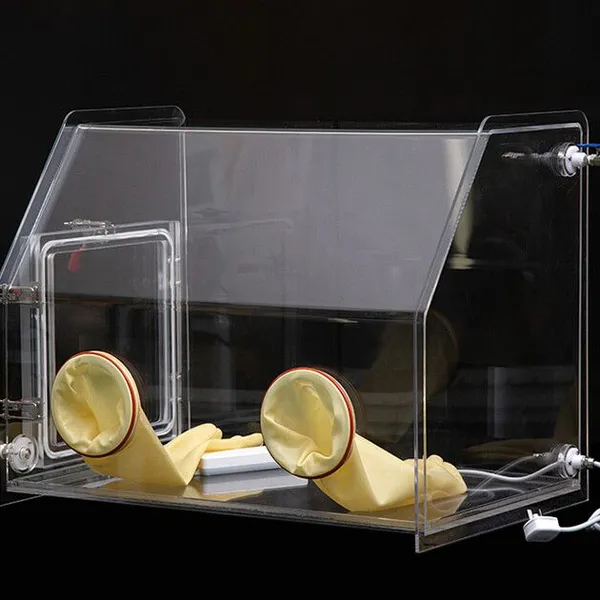

The acrylic A-series glove box consists of a main body, a side door, 2 glove ports, 2 inlet and outlet ports, and a power socket. The product is fully transparent, with a simple structure and a variety of sizes and models to choose from according to needs,

The acrylic A-series glove box is used for simple isolation experiments, inert gas displacement experiments, dust prevention experiments, ultraviolet experiments, drying experiments, etc. The internal experimental samples of the box are operated by gloves, and the non vacuum transition chamber must be directly removed from the side door.

Select high transparency organic glass sheets. Over time, it does not turn yellow, and the quality is guaranteed. Adopting a triangular sealing buckle ensures the airtightness of the product, ensuring the airtightness of the process and the rigor of the experiment.

Using natural latex gloves, it has the characteristics of thick, safe, and durable, with guaranteed quality.

The working principle of the A-series acrylic glove box is to directly replace the inert gas in the main box to reduce the water oxygen value inside the box. The concentration of water oxygen value after replacement will be determined by the replacement time and the purity of the inert gas;

application area

Mainly creating anaerobic and non humid environments for organic metal chemistry, organic synthesis, 3D printing, new material powder packaging, special anaerobic and hydrophobic chemical treatment, biomedical, electronic component processing, solar cell assembly, lithium battery materials and battery assembly experiments, catalyst treatment, pharmaceutical synthesis, nuclear industry, membrane industry, etc;

Product Features

1. Using imported high-quality acrylic material with high transparency, the experimental process is clear without dead corners, and does not turn yellow over time;

The main body of the A-series acrylic glove box cannot be evacuated and there is no transition compartment. Items must be transferred through the side door;

3. The interior of the box is equipped with a power socket, which is convenient for connecting experimental instruments such as spin coating machines and scales;

4. The inlet and outlet of the box adopt a quick plug type, which is convenient for connecting the trachea. It can also choose a pagoda head and has a ball valve switch;

Model: Main Box Size (MM) Thickness (MM) Side Doors (MM) Vacuum Degree (PA) Transition Chamber Size (MM)

AGB-1A 300W*400D*500H 6

300 * 300 ± 1000 None

AGB-2A 700W*450D*550H

AGB-3A 800W*550D*600H

AGB-4A 900W*500D*500H

AGB-5A 900W*600D*700H 10

AGB-6A 1000W*750D*700H 400*400

AGB-8A 1200W*800D*700H

Options

Vacuum pump 2L/4L

Mobile stand, no desktop available for laboratory use

Fully automatic pressure controller

Domestic&Imported Water Oxygen Content Monitor

Fully automatic water oxygen content controller

Foot pressure controller

UV sterilization lamp

Dust removal and cleaning system

Purification system H2O&O2 ≤ 0.1PPM
