Stainless steel glove box (B series)

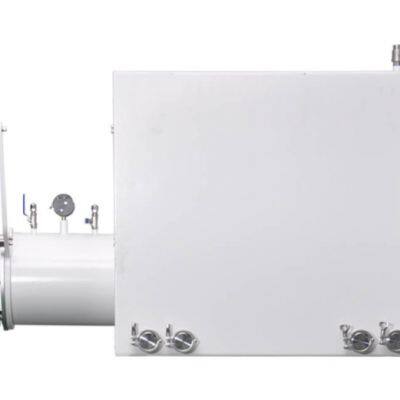

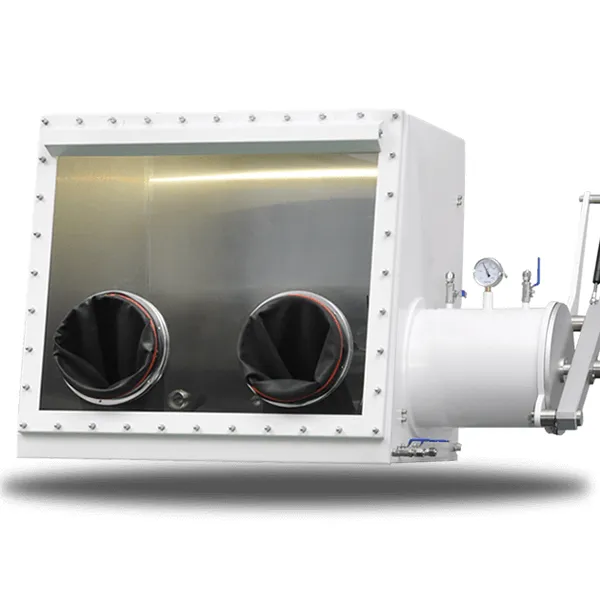

The Jiechenlab B series stainless steel glove box consists of a main box body, a vacuum transition chamber, 2 glove ports, a side door, an LED lighting fixture, 2 inlet and outlet ports, a vacuum pressure gauge, a power socket, and 2 KF25 backup interfaces on the back. It reduces the water oxygen value in the box by vacuuming and supplementing inert gas to meet various experimental and production process requirements. Suitable for major university laboratories, scientific research institutes, high-tech enterprises, etc;
Working principle
The working principle of the B-series glove box is to directly replace the inert gas in the main box to reduce the water oxygen value inside the box. The concentration of water oxygen value after replacement will be determined by the replacement time and the purity of the inert gas; The difference from the C series vacuum glove box is that the main box cannot be evacuated;
application area
Mainly creating anaerobic and non humid environments for organic metal chemistry, organic synthesis, 3D printing, new material powder packaging, special anaerobic and hydrophobic chemical treatment, biomedical, electronic component processing, solar cell assembly, lithium battery materials and battery assembly experiments, catalyst treatment, pharmaceutical synthesis, nuclear industry, membrane industry, etc;
Product Features
1. Made of SUS 304 # stainless steel material, not affected by most experimental materials, corrosion-resistant, and rust free;
The main body of the B series stainless steel glove box cannot be evacuated, and the transition compartment on the right side can be evacuated to -0.1mpa;
3. The window is made of highly transparent tempered glass, and the upper part of the window is equipped with LED lighting. During the experiment, the visual acuity is clear and there are no blind spots;

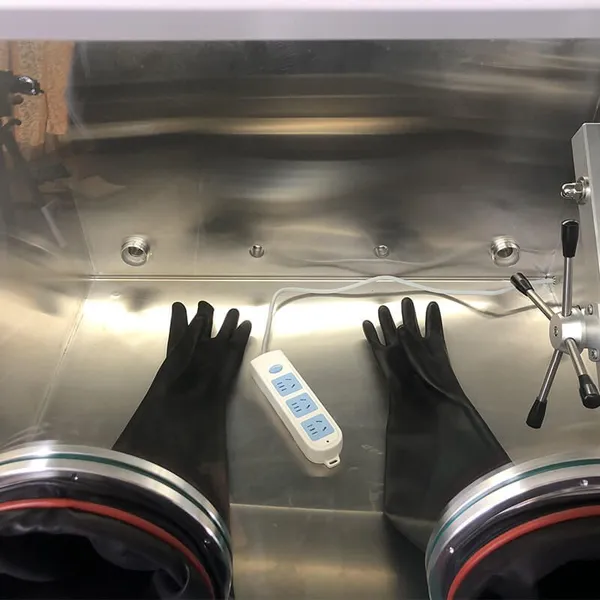

4. The interior of the box is equipped with a power socket, which is convenient for connecting experimental instruments such as spin coating machines and scales;
5. The inlet and outlet of the box adopt a quick plug type, which is convenient for connecting the trachea. It can also choose a pagoda head and has a ball valve switch;
Model VGB-1B VGB-3B VGB-4A
Size 600W * 450D * 420H 780W * 650D * 700H 1120W * 740D * 900H
Main box body withstand voltage of positive and negative 1000PA
box
SUS304 stainless steel, thickness 3mm, inner surface: stainless steel wire drawing treatment
External surface: spray painted, white;
The window control box is equipped with 10mm thick tempered glass on the front, providing a wide viewing angle without any blind spots
Ball valve stainless steel ball valve, quick insert or pagoda head interface, one inlet and outlet respectively
Lighting without ultraviolet white light, installed above each glass window
Multi hole power sockets are installed inside the power box to meet the internal instrument needs of customers
A pair of 600mm long latex gloves
Reserved interface for KF25, the glove box can be upgraded at any time in the future
Transition cabin size: φ 210 * 260L, φ 240 * 260L, φ 385 * 400L
Transition chamber vacuum degree -0.1Mpa -0.1Mpa -0.1Mpa
Side door manual door 300H * 260D manual door 350H * 300D manual door 450H * 350D
Options
Vacuum pump 2L/4L
Mobile stand, no desktop available for laboratory use
Fully automatic pressure controller
Domestic&Imported Water Oxygen Content Monitor
Fully automatic water oxygen content controller
Foot pressure controller
UV sterilization lamp
Oven&Refrigerator
Dust removal and cleaning system
Purification system H2O&O2 ≤ 0.1PPM
