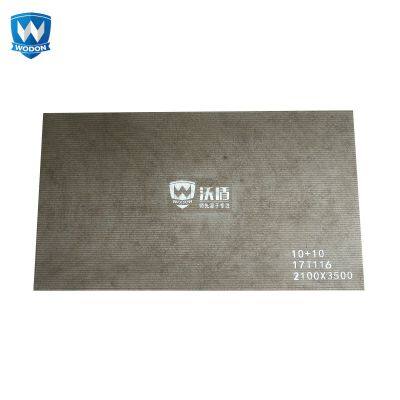

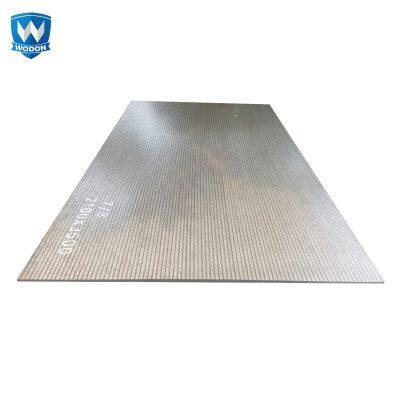

Wear-resistant steel plates are manufactured by welding one or multiple abrasion-resistant layers on a medium or low carbon steel base plate. The overlay alloy has a high amount of chromium carbide hard particles. These particles are distributed evenly throughout the layer, creating a strong microstructure. The hardness is HRC 58~65 and depends on the overlay's thickness.
Parameters
• Hardness: HRC 58-65
• Chemical Composition: Carbon (C)3%-5.0%, Chromium (Cr) 18%-30%
• Application: Suitable for general wear environments
Standard Sizes
Welding Type |
Dimensions |
Open Arc Welding |
1400 x 3400 mm (customizable) |
Submerged Arc Welding |
1400 x 3000 mm, 1400 x 3500 mm, 2100 x 3500 mm (custom sizes available) |
Main Thicknesses (mm)
Thickness Combination |
Available Sizes |
3 on 3, 4 on 4, 5 on 5 |
✓ |
4 on 6, 5 on 6, 6 on 6, 8 on 6 |
✓ |
4 on 8, 5 on 8, 6 on 8, 7 on 8, 8 on 8 |
✓ |
4 on 10, 5 on 10, 6 on 10, 7 on 10, 8 on 10, 9 on 10, 10 on 10, 20 on 10 |
✓ |
4 on 12, 5 on 12, 6 on 12, 7 on 12, 8 on 12, 10 on 12, 11 on 12, 12 on 12 |
✓ |
6 on 14, 8 on 14, 10 on 14 |
✓ |
6 on 16, 8 on 16, 10 on 16 |
✓ |
6 on 18, 8 on 18, 10 on 18 |
✓ |
5 on 20, 6 on 20, 8 on 20, 10 on 20, 20 on 20, 10 on 30, 10 on 40 |
✓ |
Customized Sizes |
✓ |
Applications
· Industries: Mining, construction, cement, steel, power industries
· Applications: Hoppers, chutes, crushers, mills, and other high-wear, high-impact environments
Testing Items
• Chemical Composition Testing: We use portable spectrometers to quickly and accurately detect the chemical composition of materials to ensure compliance with specified carbon and chromium contents.
• Hardness Testing: We test the product hardness using Rockwell hardness testers and portable hardness testers to ensure surface hardness and wear layer hardness meet the required ranges.
• Thickness Testing: We use portable ultrasonic thickness gauges to measure the product thickness, ensuring size accuracy and uniformity.
• Wear Performance Testing: We use wear testers to simulate actual working conditions and assess the wear performance, ensuring the product has excellent wear resistance during use.
• Metallographic Analysis: We analyze the metallurgical structure using metallographic analysis equipment to check the volume fraction and distribution of chromium carbide, ensuring optimized material structure and stable performance.
Logistics and After-Sales Service
Packaging and Transportation
• Packaging: We use steel pallets, non-fumigated pallets, plastic films, and other packaging methods, with customized packaging solutions available to ensure safe and intact transport.
• Transportation: Products are usually transported in 20-foot or 40-foot containers, with delivery times typically ranging from 7 to 15 days depending on order quantity.
After-Sales Service
• Professional Support: Our after-sales service team has extensive experience in hard-facing products and their applications, and can quickly respond to customer inquiries and issues, typically resolving them within 12 hours of notification.
• Equipment Operation Support: The team is also skilled in operating hard-facing equipment and can assist customers in resolving equipment-related issues, ensuring smooth equipment operation and correct product use.
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer with 3 factories, an internal sales department, and a specialized inspection and technical department, allowing us to independently produce and offer high-quality products and services.
Q: What is your delivery time?
A: If the product is in stock, delivery time is 5-10 days; if out of stock, delivery time is 15-20 days, depending on the order quantity.
Q: Do you provide samples? Are they free or chargeable?
A: Yes, we provide free samples to allow customers to better understand the product's performance and quality.
Q: What are your payment terms?
A: Payment terms are 30% prepayment, with the balance paid after the bill of lading copy is issued. We offer flexible payment options including FOB, CIF, CFR, etc.
Contact Us
If you have any questions or need more information about Wodon Super Wear-Resistant Steel Plates, please feel free to contact us. We are dedicated to serving you.
