ABB DAPC100 3ASC25H209 Control Module

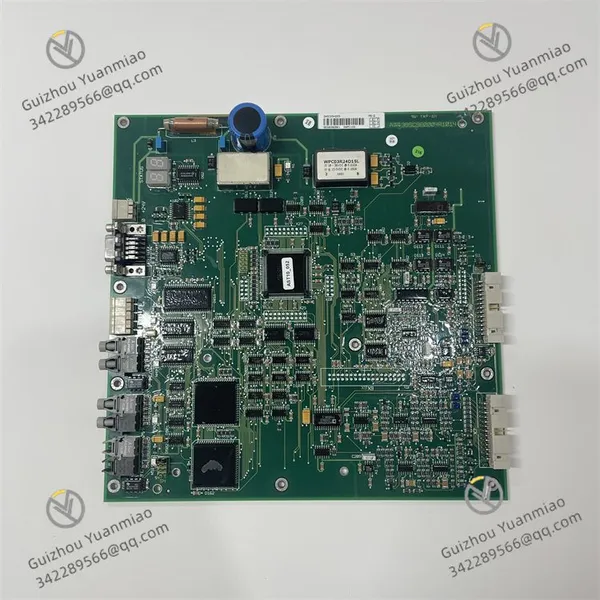

ABB DAPC100 3ASC25H209 Control Module photo-1

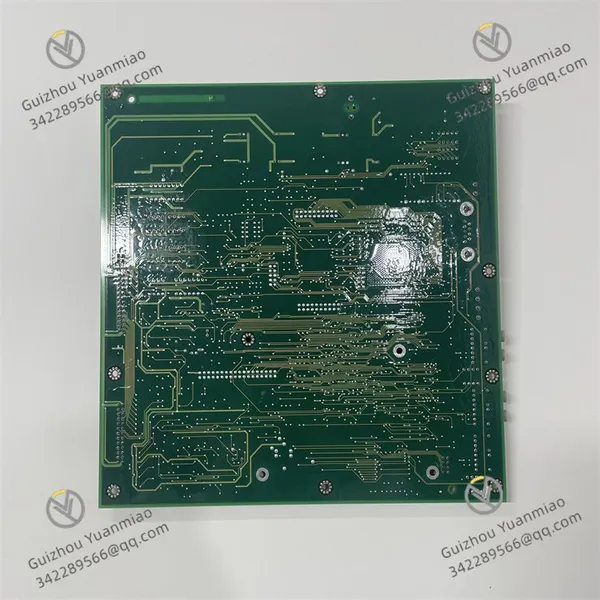

ABB DAPC100 3ASC25H209 Control Module photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Environment -20℃~+60℃

ABB DAPC100 3ASC25H209

This module belongs to the Advanced Process Control (APC) module, mainly used in industrial automation systems to implement complex process control algorithms, data processing, and system coordination. It is commonly found in medium to large controller platforms such as ABB AC 800M, supports advanced functions such as multi-variable optimization and predictive control, and is suitable for industrial scenarios requiring high-precision dynamic adjustment.

I. Technical Characteristics and Performance Parameters

Hardware Architecture and Processing Capability

Processor Configuration: Equipped with high-performance multi-core processors (such as ARM Cortex-A53 or equivalent architecture), integrated with Floating-Point Unit (FPU), supporting real-time calculation of complex control algorithms (such as Model Predictive Control MPC and adaptive control), with computing power reaching over 10TOPS.
Data Processing Capability: Supports high-speed sampling (sampling rate ≥10kHz), processes analog (e.g., temperature, pressure, flow) and digital signals, and features a built-in Real-Time Operating System (RTOS) with task response latency ≤50μs.
Storage Configuration: Onboard RAM ≥2GB, Flash memory ≥16GB, supporting program storage, historical data caching, and edge computing data storage.

Communication and Interface Design

Integrates communication protocols such as EtherNet/IP, Modbus TCP, and OPC UA, enabling data interaction with PLCs, SCADA systems, and cloud platforms.
Equipped with 2 × 10/100/1000Mbps Ethernet interfaces, supporting redundant network access to ensure communication reliability.

Industrial Bus Support:
Expansion Interfaces: Interconnects with I/O modules (AI/AO/DI/DO), power modules, etc., via backplane buses (such as ABB's S2 bus), supporting distributed control architectures.

Reliability and Protection Design

Operating Environment: Supports -20℃~+60℃ operating temperature, vibration resistance (compliant with IEC 60068-2-6 standard, 10-500Hz, 2g acceleration), and electromagnetic compatibility (EMC) meeting EN 61000-6-2 industrial standards.
Safety Mechanisms: Built-in hardware watchdog, data verification (CRC), and fault self-diagnosis functions; supports hot-swapping to reduce downtime.

II. Typical Application Scenarios

Advanced Control for Process Industries

Chemical and Petrochemical: Achieves multi-variable optimization (e.g., coordinated regulation of temperature, pressure, and flow) in distillation column and reactor control to improve product quality and raw material utilization.
Pharmaceutical and Food: Executes precise linkage control (temperature-pressure-stirring speed) in fermenters and mixing kettles to meet GMP compliance requirements.

Energy and Power Systems

Combined Heat and Power (CHP): Coordinates load distribution of boilers and turbines, optimizing fuel efficiency and emission control through APC algorithms.
Battery Energy Storage System (BESS): As the core module of Energy Management System (EMS), dynamically regulates charging/discharging power to balance grid supply and demand.

Metallurgical and Building Materials Industries

Steel Rolling: Introduces predictive control algorithms in mill speed and tension control to reduce sheet thickness deviation and improve material yield.
Cement Kiln Control: Optimizes kiln temperature curves and raw material ratios via APC modules to reduce energy consumption and pollutant emissions.

III. Technical Comparison with Similar Products

Comparison Dimension	DAPC100 3ASC25H209	Previous DAPC070 Series	Competitors (e.g., Siemens S7-1500 APC Module)
Computing Performance	Multi-core processor + FPU, supports complex algorithms like MPC	Single-core architecture, suitable for basic PID control	Equivalent computing power, integrates PLCopen standard motion control
Communication Protocols	Supports OPC UA 1.04, compatible with industrial internet	Only supports traditional protocols like Modbus/TCP	Supports EtherCAT with superior real-time performance
Storage & Edge Computing	16GB Flash + 2GB RAM, supports data caching	8GB Flash + 1GB RAM, limited storage	Larger storage (32GB+), supports SSD expansion
Energy Efficiency	Low-power design (typical power ≤10W)	Power ≤15W, higher cooling requirements	Similar energy efficiency, both use low-power chips

IV. Installation and Maintenance Key Points

Installation Method: Standard 35mm DIN rail mounting, supports horizontal/vertical installation, and requires matching with ABB controller backplanes.
Programming Tools: Uses ABB's Control Builder M or AC 800M programming environment, supporting IEC 61131-3 programming languages (e.g., SCL, LD, FBD) and custom development of advanced control algorithms.
Maintenance Diagnosis: Quickly locates anomalies via module LED indicators (power, operation, fault, communication status), and enables remote monitoring and firmware upgrade with ABB System 800xA.

Product Tags: DAPC100 , 3ASC25H209 , PCD231B101
