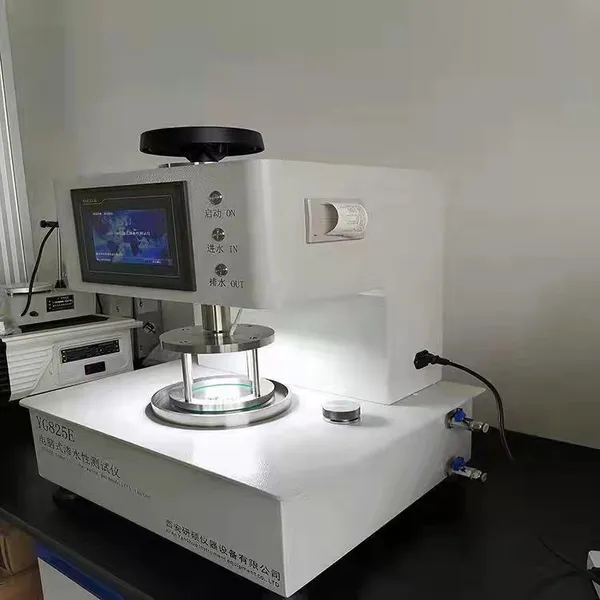

YG825E Type Digital Fabric Water Permeability Tester

[Scope of application]: used to test the water resistance performance of coating fabrics, non-woven fabrics, composite fabrics, films and other materials.

[Applicable standards]: GB/T 4744-2013, FZ/T 01004-91, ISO811, AATCC127, JISL1092;

【 technical parameter 】：

1. Measurement range and accuracy:

Models-10-20-30-50

Measurement range: 1Pa~100kPa, 1Pa~200kPa, 1Pa~300kPa, 1Pa~500kPa

Precision 0.5% 0.5% 1% 1%

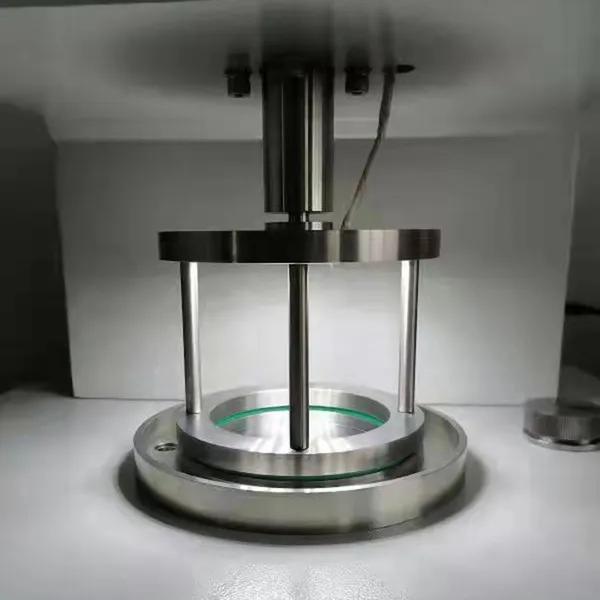

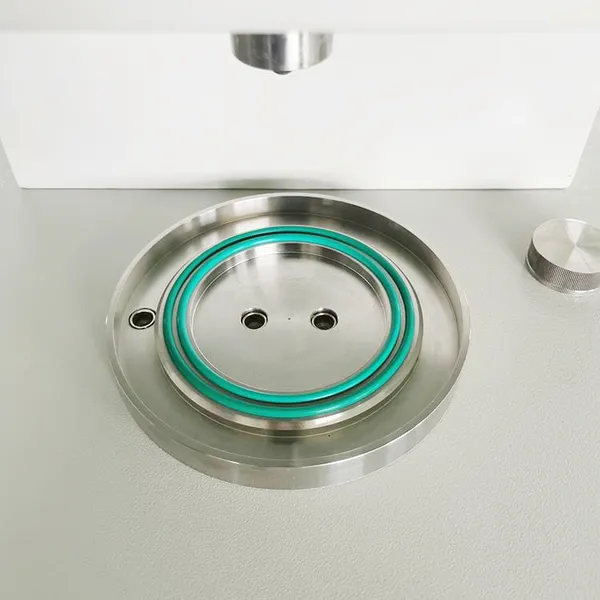

2. Sample chuck area: 100cm2;

3. Water pressure rise rate: 0-30000Pa/min;

4. Display accuracy: less than 10Pa;

5. Test unit: Pa; KPa; mmH2O; cmH2O; mbar;

6. Working modes: 5;

7. Display mode: color LCD touch screen, Chinese menu;

8. Water tank capacity: 3000ml;

9. Power supply: AC220V±10% 50Hz;

10 power rate: 120W;

11. External dimensions: 550×400×800mm;

12. Weight: 75kg;

Instrument characteristics]:

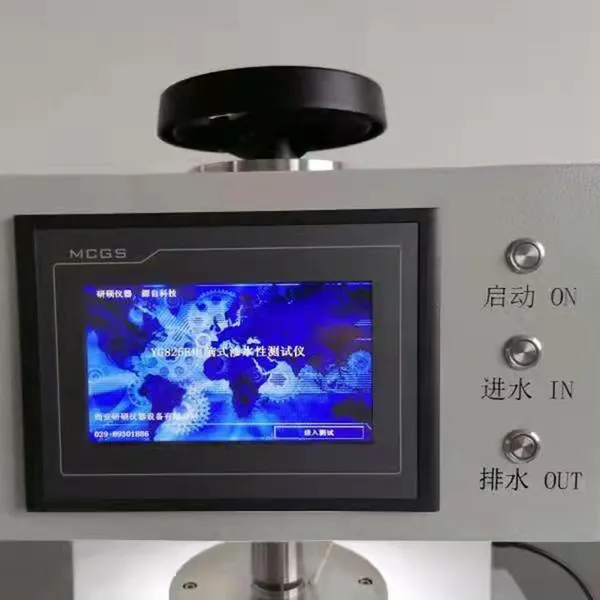

1.7-inch color LCD touch screen display, Chinese menu, simple and intuitive operation;

2. One-click drainage function for more convenient testing;

3. Built-in 5 test functions, fully meet a variety of test standards;

4. Built-in multi-unit selection, no need to convert test results;

5. High precision pressure sensor is adopted, the test results are accurate and stable, and the repeatability is good;

6. Equipped with built-in water tank and water shortage protection function.
