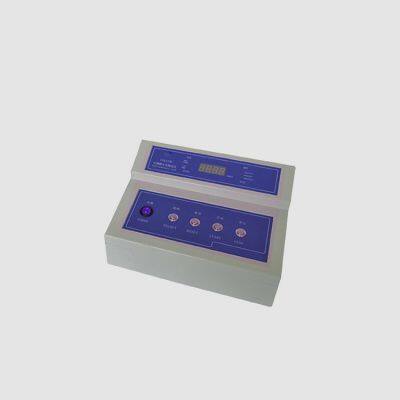

YG825 Type Non-Woven Fabric Hydrostatic Pressure Testing Instrument

[Technical indicators]

1. Range: 0-500 cmH2O;0-1000cmH2O；0-2000cmH2O；0-3000cmH2O (optional);

2. Clamping area: 100 cm2;

3. Ascent rate: 10 cm\ / min;60cm\/min；100cm\/min； (0-2000cmH2O increase rate 200;300； 400cm\ / min)

4. Power source: AC220V ± 10%;

5. Work rate: 30 w;

6. Dimensions: 280x360x400mm stainless steel test device; 300x230x160mm electrical control box;

7. Net weight: 22 kg.

[Instrument features]

1. Imported main control chip control, highlight LED display;

2. The cloth-like tightening device is all made of high-quality 304 stainless steel;

3. High-precision pressure sensors are used to ensure accurate and stable junction results;

4. The instrument is simple to operate and the test data is intuitive.

[Complies with the standard]

GB / T4744

FZ / T01004

 ISO811

 AATCC127

JISL1092, etc.
