ABB UNITROL 1020 3BHE037460R6207 Automatic Voltage Controller

ABB UNITROL 1020 3BHE037460R6207 Automatic Voltage Controller thumbnail-1
ABB UNITROL 1020 3BHE037460R6207 Automatic Voltage Controller thumbnail-2
ABB UNITROL 1020 3BHE037460R6207 Automatic Voltage Controller thumbnail-3
ABB UNITROL 1020 3BHE037460R6207 Automatic Voltage Controller thumbnail-4
ABB UNITROL 1020 3BHE037460R6207 Automatic Voltage Controller photo-1

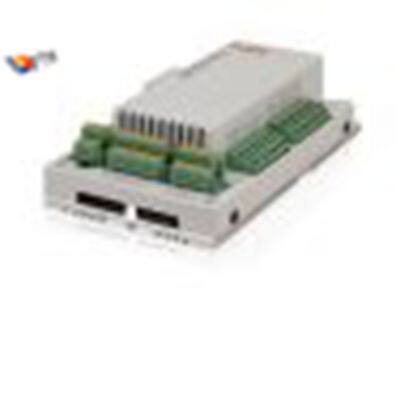

ABB UNITROL 1020 3BHE037460R6207 Automatic Voltage Controller photo-2

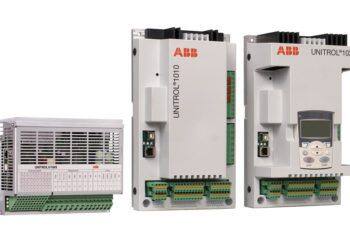

ABB UNITROL 1020 3BHE037460R6207 Automatic Voltage Controller photo-3
ABB UNITROL 1020 3BHE037460R6207 Automatic Voltage Controller photo-4
Negotiable MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ISO9001
Installation:
Other
Protection:
Other
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification ISO9001
Installation Other
Protection Other
Housing Other
Here are the parameters for the ABB UNITROL 1020 3BHE037460R6207:

Operation Modes

  • Automatic Voltage Control (AVR) with an adjustable 530 controller.

  • Power factor and reactive power control using a 530 control algorithm.

  • Current regulator with IP control.

  • Reactive power sharing for generators connected in parallel or island operation.

  • Automatic synchronization and voltage matching.

System Functions

  • Redundant channel system backup and setpoint tracking via a reliable CAN bus.

  • Synchronization check function.

  • Rotating diode monitoring function.

  • Various limiter functions (e.g., field current limiter).

  • Automatic and manual triggering of a data logger to record measurements and user-selected data.

  • Event logger function to record messages with time and date stamps.

Communication & Configuration

  • Full-featured MODBUS communication via standard Ethernet and RS485.

  • Simple configuration and measurement via the regulator’s powerful LCD panel.

  • The user-friendly debugging and maintenance software tool CMT1000 for parameterization, monitoring, trending, and optimization.

I/O Configuration

  • Digital I/O: 12 inputs (8 of which can be configured as outputs).

  • Analog I/O: 3 inputs, 2 outputs.

  • Digital input expansion using free analog inputs (up to 6 additional digital inputs).

Other Features

  • Displays for measurements, alarms, and limiters.

  • Real-time clock synchronized with a time server and signal-to-noise ratio monitoring.

  • Robust dual-processor technology ensures control stability even during Ethernet communication disturbances.

Electrical Parameters

  • Field Current (CE Standards):

    • Nominal: 20A

    • Upper Limit: 38A (3-phase input voltage).

  • Field Current (UL Standards):

    • Nominal: 15A

    • Upper Limit: 38A (3-phase input voltage).

  • Nominal Input Voltage: 250Vac.

  • Control Power Supply:

    • AC: 20Vac to 250Vac

    • DC: 20Vdc to 300Vdc.

Mechanical Parameters

  • Dimensions (W×H×D): 687×955×168 mm.

  • Weight: 2.9 kg.

Product Tags: ABB , UNITROL 1020 3BHE037460R6207 , automatic voltage controller
